9355ES | ESD Spring Balancer, 7 - 10 kg, 2000mm stroke

(0)No Reviews yet
$479.00
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

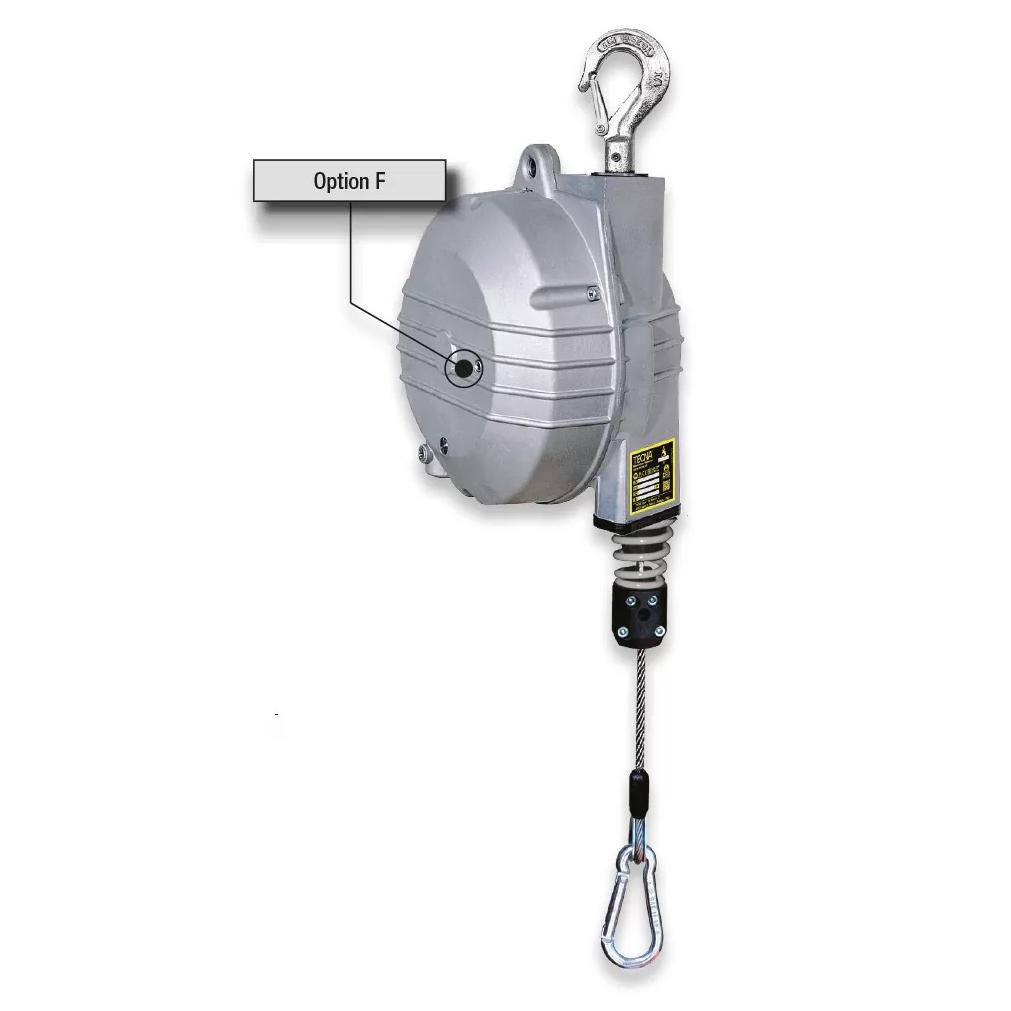

The Tecna ESD Balancer 9355ES 935 is purpose-built for electronics assembly, precision manufacturing, and any environment where electrostatic discharge needs to be strictly controlled. Its ESD-safe design helps prevent unintended static transfer, ensuring the protection of sensitive components, devices, and tools.

Offering a load capacity of 7 - 10kg and a stroke length of 2000mm, the balancer delivers smooth, predictable movement that allows tools to remain at an ideal working position. This results in better ergonomics, reduced fatigue, and more efficient assembly operations.

The internal mechanism provides stable tension regulation for consistent day-to-day performance. Durable materials and an anti-static finish ensure the unit maintains safe conductivity levels, supporting ESD protection across continuous use.

Engineered for low maintenance and dependable operation, the Tecna ESD Balancer 9355ES 935 is well-suited for workstations in electronics assembly, labs, repair centers, cleanrooms, and other ESD-controlled environments where precision and safety are essential.

Features & Benefits

  • Certification for ESD-PROTECTED AREAS (EPA)
  • Anti-electrostatic materials
  • Anti-static materials and finish maintain safe conductivity during operation.
  • Grounded
  • Ribbed and sealed monobloc construction in aluminium alloy.
  • Stainless steel rope.
  • Adjustable capacity by means of a worm screw.
  • Safety suspension.
  • Safety device against load dropping due to the spring breakage (<3kg).
  • Upper rotary suspension with safety hook.
  • Locking device to block the load at any height.
  • Adjustable stroke limiting device.
  • Taper drum rotating on ball bearings.
  • Cable guide in antifriction material.
  • Rotary upper hook with ball bearing.
  • Inert spring drum assembly.

Technical Specifications

SKU: 9355ES-tecna
Manufacturer
Tecna
Type
Spring Balancer
Series
935
SKU
9355ES
Model
9355ES
Certifications
CE, DIN 15112, ESD
ESD Compliant
Yes
Capacity (kg)
7 - 10
Housing
Aluminum
Stroke (mm)
2000
Wire Rope
Stainless Steel
Weight (kg)
5.3
