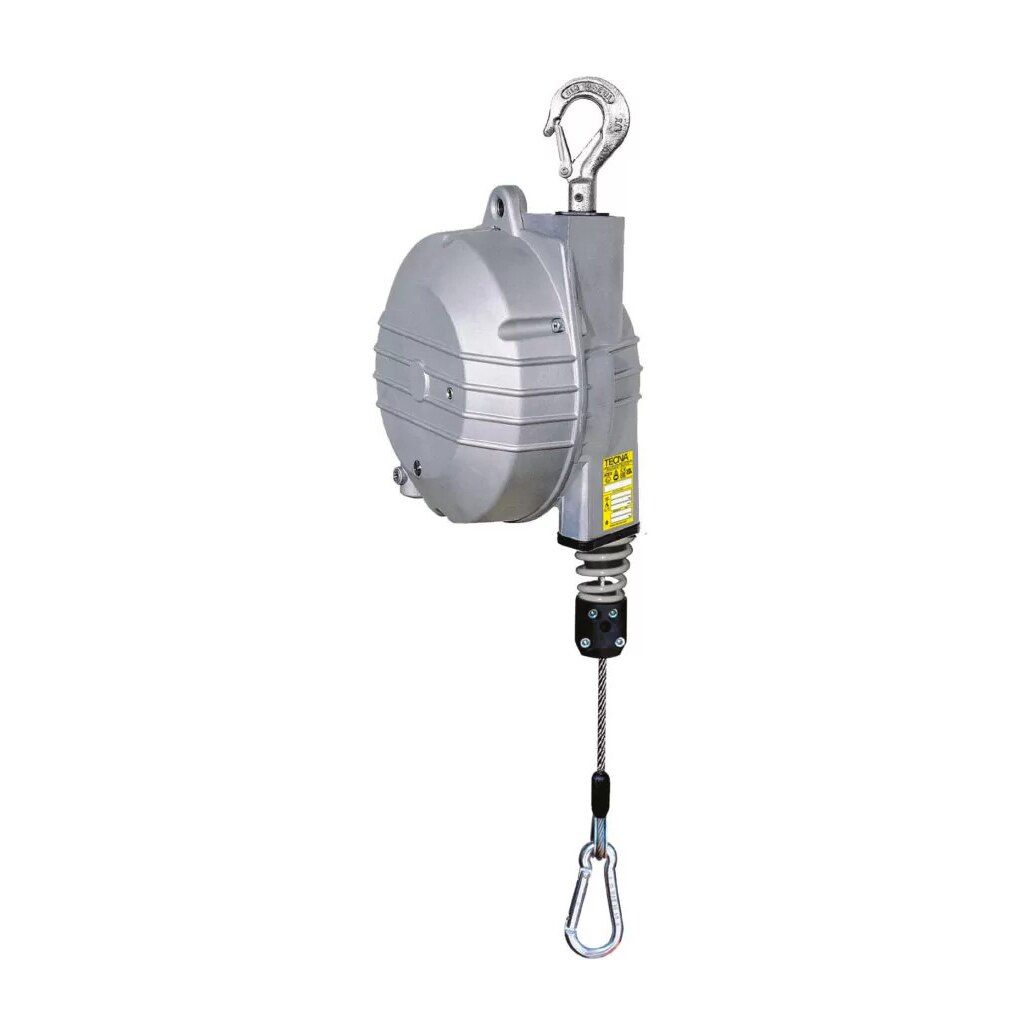

ATEX Spring Balancer, 10 - 14 kg, 2000mm stroke
The Tecna ATEX Balancer 9356AX Spring Balancer delivers explosion-proof load handling with precise tension control and ergonomic performance for hazardous industrial zones. Designed for reliable operation in ATEX-classified environments, it ensures safe tool suspension, smoother workflow, and long-term durability in demanding applications.
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Length (mm) | Price | Qty | |
|---|---|---|---|---|---|
 72967/172967/1 | 1000mm Wire Rope Extension for 935 Series Balancers$51.00 | 72967/1 | 1000 | $51.00 | 1 | View details |
| 72967/372967/3 | 3000mm Wire Rope Extension for 935 Series Balancers$73.50 | 72967/3 | 3000 | $73.50 | 1 | View details |
| 72967/572967/5 | 5000mm Wire Rope Extension for 935 Series Balancers$96.00 | 72967/5 | 5000 | $96.00 | 1 | View details |
Details
Product information
Overview
The Tecna ATEX Balancer 9356AX 935 is engineered for safe and efficient tool handling in environments where explosive gases, vapors, or dust may be present. Fully compliant with ATEX directives, this balancer provides secure operation in II 2D Ex h IIIC T85°C Db locations, making it ideal for high-risk industries including petrochemical, refining, chemical processing, and hazardous manufacturing.
With a load capacity of 10 - 14 kg and a stroke length of 2000 mm, the unit delivers stable, predictable movement that keeps tools positioned at the ideal working height. This reduces operator strain, minimizes repetitive-motion fatigue, and enhances overall productivity.
The balancer’s internal mechanism provides precise tension regulation, ensuring consistent performance across continuous operation. Its corrosion-resistant housing and sealed components are built to withstand harsh environments, airborne contaminants, and demanding duty cycles.
Designed for low maintenance and long service life, the Tecna ATEX Balancer 9356AX 935 supports reliable day-to-day use in safety-critical applications. Whether installed on production lines, assembly stations, or maintenance areas, it helps improve workflow efficiency while maintaining strict compliance requirements.
| Technical Specifications | |
|---|---|
| Manufacturer | Tecna |
| Type | Spring Balancer |
| Series | 935 |
| SKU | 9356AX |
| Model | 9356AX |
| Certifications | CE, DIN 15112, ATEX |
| ATEX Classification | II 2D Ex h IIIC T85°C Db |
| Capacity (kg) | 10 - 14 |
| Housing | Aluminum |
| Stroke (mm) | 2000 |
| Wire Rope | Stainless Steel |
| Weight (kg) | 5.67 |
| MPN | 9356AX |
| Features & Benefits | |
| Ribbed and sealed monobloc construction in aluminium alloy. | |
| Stainless steel rope. | |
| Adjustable capacity by means of a worm screw. | |
| Safety suspension. | |
| Safety device against load dropping due to the spring breakage (<3kg). | |
| Upper rotary suspension with safety hook. | |
| Locking device to block the load at any height. | |
| Adjustable stroke limiting device. | |
| Taper drum rotating on ball bearings. | |
| Cable guide in antifriction material. | |
| Rotary upper hook with ball bearing. | |
| Inert spring drum assembly. | |
| Operating temperature between + 5° to + 60°. | |
| Safety device against load dropping due to the spring breakage (<3kg). | |
