TL46-A-625 | High Performance Contrast Sensor, Red Vertical, NPN, Trimmer
The TL46 contrast sensorseries is characterized by excellent performances in terms of resolution due to a RGB LEDs emission, low response time and high switching speed. The sensor, developed in a sturdy metal housing with standard fixing, is available in 3 different version.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

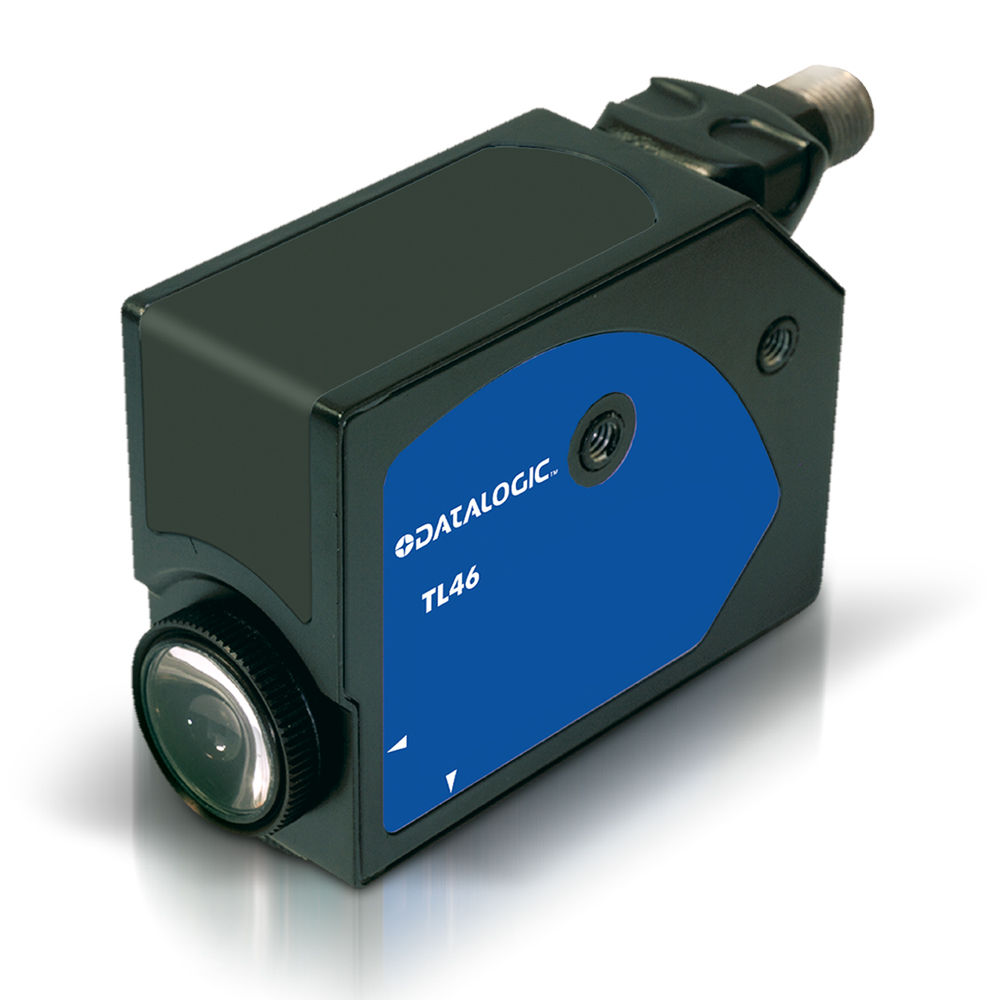

Datalogic TL46-A-625, 954601100
Contrast sensor with trimmer adjustment, Red LED em. NPN M12
The TL46 contrast sensorseries is characterized by excellent performances in terms of resolution due to a RGB LEDs emission, low response time and high switching speed. The sensor, developed in a sturdy metal housing with standard fixing, is available in 3 different version.
TL46-W basic version with 2 set push-buttons and 2 LEDs indicator, TL46-WL standard version has set 3 push-buttons, 4 LEDs indicator and bar graph is also available for manual setting of the threshold and TL46-WLF enhanced version presents a 4-digit display for the setting of the most advanced functions, such as dynamic acquisition of the contrast mark. The sensor reaches the maximum market performances at 30kHz switching frequency.
Features:
- RGB emission: high detection reliability and resolution
- Teach-in push-button and bar graph or display 4 digits indicator: fast and easy setting
- 30KHz switching frequency: precise and repeatability reading
- Rotatable M12 5-pole connector: adaptability to the mechanical part of the plant
Applications:
- Packaging lines
- Paper and Printing machines
- Automatic filling machines
| Technical Specifications | |
|---|---|
| Sensing Distance | 12 mm |
| Spot Dimension | 1.5 x 5 mm |
| Sensitivity Adjustment | Trimmer |
| Application Principle | Contrast mark detection |
| Description | Standard case - vertical spot |
| Optic Position | Axial |
| Functions | Contrast mark detection |
| Output Type | NPN - Dark/Light sel., 0-5 V |
| Switching Frequency | 20 kHz |
| Response Time | 0.025 ms (20 kHz) |
| Supply Voltage | 10-30 VDC |
| No-Load Supply Current | 40mA |
| Load Current | 100mA |
| Output Voltage Drop | 2V |
| Maximum Ripple | 2Vpp |
| LED Indicators | Yellow (output state), orange (arrows) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | Red LED |
| External Light Immunity | According to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions (WxHxD) | 32x60x82 mm |
| Housing Material | Metal - Aluminium / PMMA |
| Connection | M12 plug |
| Lens Material | Glass |
| Storage Temperature | -20°C to +70°C |
| Housing Shape | Cubic |
| Approvals | CE, cULus |
| Vibration Resistance | 0.5 mm amplitude, 10 to 55 Hz frequency, for every axis (EN60068-2-6) |
| Operating Temperature | -10°C to +55°C |
| IP Rating | IP67 |
| MPN | TL46-A-625 |
