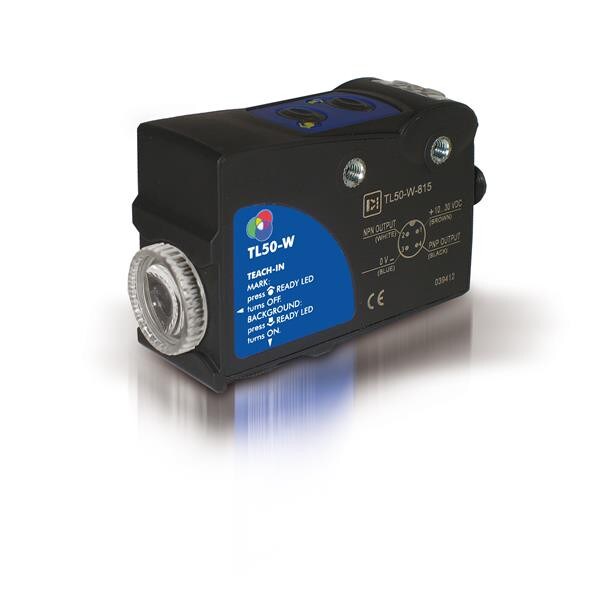

TL50-W-815 | Contrast sensor 8mm. basic vertical spot npn/pnp out - M12
The TL50 contrast sensor line offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The optimized optics of these sensors, the RGB LED emission with automatic color selection and the very fine resolution, allow the detection of the weakest contrast of colors or grayscale between mark and background, or between different objects or surfaces. The high resolution is not a limit for the detection speed, reaching 33ms response time and 15kHz switching frequency
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

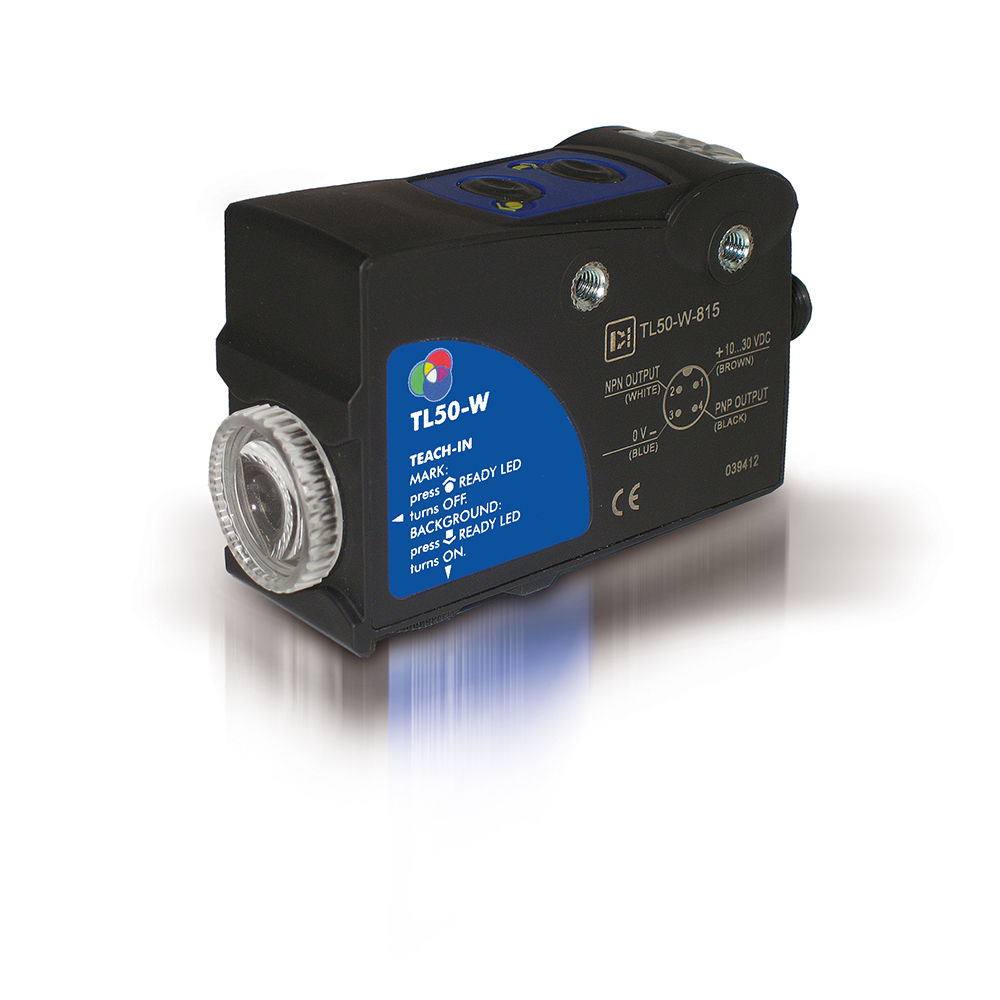

Datalogic TL50-W-815, 954651000
Contrast sensor 8mm. basic vertical spot npn/pnp out - M12
The TL50 contrast sensor line offers the best solution for all the applications where cost reduction is requested, without compromising the excellent detection performances. The optimized optics of these sensors, the RGB LED emission with automatic color selection and the very fine resolution, allow the detection of the weakest contrast of colors or grayscale between mark and background, or between different objects or surfaces. The high resolution is not a limit for the detection speed, reaching 33ms response time and 15kHz switching frequency
Features:
- RGB emission: high detection reliability and resolution
- Teach-in push-button: fast and easy setting
- 15KHz switching frequency: precise and repeatability reading
Applications:
- Packaging lines
- Paper and Printing machines
- Automatic filling machines
| Technical Specifications | |
|---|---|
| Sensing Distance | 9 mm |
| Spot Size | 1.5 x 5 mm |
| Sensitivity Adjustment | Teach-in |
| Principle of Operation | Contrast mark detection |
| Description | Standard case - vertical spot |
| Optic Position | Axial |
| Functions | Contrast mark detection |
| Output Type | NPN/PNP Dark/Light selectable |
| Output Function | Dark/Light selectable |
| Switching Frequency | 15 kHz |
| Response Time | 0.033 ms |
| Supply Voltage | 10-30 VDC |
| No-Load Supply Current | 50mA |
| Output Voltage Drop | 2V @ Iload=100mA |
| LED Indicators | Yellow (output state), Green (Ready), Orange (delay) |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Emission | LED RGB |
| External Light Immunity | According to EN 60947-5-2 : 2020 |
| Impulsive Overvoltage Protection | Yes |
| Insulation Resistance | >20 MΩ 500 Vdc, between electronics and housing |
| Dielectric Strength | 500 Vac 1 min., between electronics and housing |
| Dimensions | 31 x 53 x 80 mm |
| Housing Style | Cubic |
| Housing Material | Plastic - ABS / PMMA |
| Connection | M12 plug |
| Lens Material | Glass |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| IP Rating | IP67 |
| Approvals | CE, cULus |
| Vibration and Shock Resistance | 0.5 mm amplitude, 10-55 Hz frequency, for every axis (EN60068-2-6) |
| MPN | TL50-W-815 |
