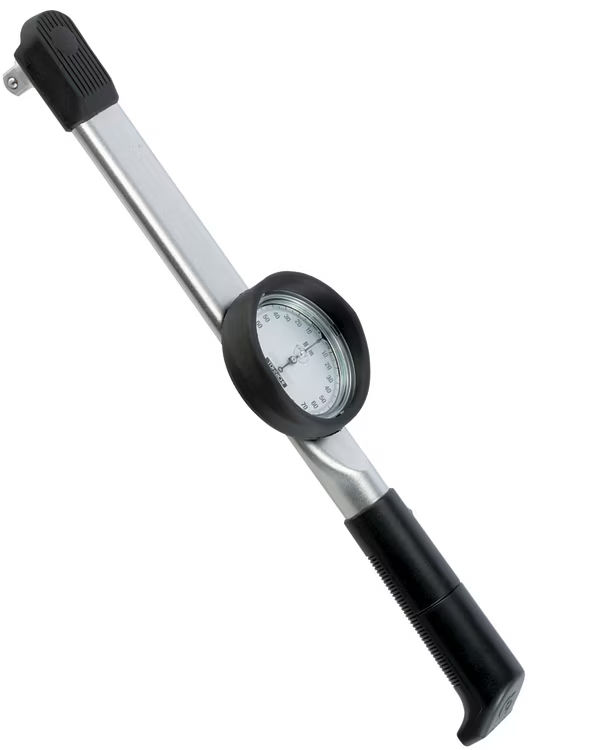

DB Dial Torque Wrench

The DB series Dial Indicator Torque Wrench features a large scale with memory pointer for easy reading. Ideal for torque measuring or quality inspections.

Models and pricing below

Documents1 file

PDFUser Manual (PDF)Open

Models Available

36 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Drive size	Price	Qty
DB1.5N4-SDB1.5N4-S \| Dial Torque Wrench, 0.2 - 1.5 Nm$252.88	DB1.5N4-S	1/4'' square	$252.88	1	View details
DB100F-4ASDB100F-4AS \| Torque Wrench, 0 - 100 lbf ft$305.38	DB100F-4AS	1/2'' square	$305.38	1	View details
DB100N-SDB100N-S \| Dial Torque Wrench, 10 - 100 Nm$286.13	DB100N-S	1/2'' square	$286.13	1	View details
DB13I-2ASDB13I-2AS \| Torque Wrench, 0 - 13 lbf in$252.88	DB13I-2AS	1/4'' square	$252.88	1	View details
DB1500F-8ASDB1500F-8AS \| Dial Torque Wrench, 1500 ft lbs, 10 grad.$1,598.63	DB1500F-8AS	1'' square	$1,598.63	1	View details
DB150I-3ASDB150I-3AS \| Torque Wrench, 0 - 150 lbf in$258.13	DB150I-3AS	3/8'' square	$258.13	1	View details
DB175F-4ASDB175F-4AS \| Torque Wrench, 0 - 175 lbf ft$305.38	DB175F-4AS	1'' square	$305.38	1	View details
DB2000F-12ASDB2000F-12AS \| Dial Torque Wrench, 2000 ft lbs, 20 grad.$1,883.00	DB2000F-12AS	1 1/2'' square	$1,883.00	1	View details
DB200N-SDB200N-S \| Dial Torque Wrench, 20 - 200 Nm$305.38	DB200N-S	1/2'' square	$305.38	1	View details
DB250F-6ASDB250F-6AS \| Torque Wrench, 0 - 250 lbf ft$392.88	DB250F-6AS	3/4'' square	$392.88	1	View details
DB25F-3ASDB25F-3AS \| Torque Wrench, 0 - 25 lbf ft$273.00	DB25F-3AS	3/8'' square	$273.00	1	View details
DB26I-2ASDB26I-2AS \| Torque Wrench, 0 - 26 lbf in$252.88	DB26I-2AS	1/4'' square	$252.88	1	View details
DB280N-SDB280N-S \| Dial Torque Wrench, 30 - 280 Nm$414.47	DB280N-S	3/4'' square	$414.47	1	View details
DB3000F-12ASDB3000F-12AS \| Dial Torque Wrench, 3000 ft lbs, 50 grad.	DB3000F-12AS	1 1/2'' square		1	View details
DB300I-3ASDB300I-3AS \| Torque Wrench, 0 - 300 lbf in$273.00	DB300I-3AS	3/8'' square	$273.00	1	View details
DB350F-6ASDB350F-6AS \| Torque Wrench, 0 - 350 lbf ft$450.63	DB350F-6AS	3/4'' square	$450.63	1	View details
DB3N4-SDB3N4-S \| Dial Torque Wrench, 0.3 - 3 Nm$252.88	DB3N4-S	1/4'' square	$252.88	1	View details
DB40I-2ASDB40I-2AS \| Torque Wrench, 0 - 40 lbf in$252.88	DB40I-2AS	1/4'' square	$252.88	1	View details
DB420N-SDB420N-S \| Dial Torque Wrench, 40 - 420 Nm$450.63	DB420N-S	3/4'' square	$450.63	1	View details
DB500F-6ASDB500F-6AS \| Dial Torque Wrench, 500 ft lbs, 10 grad.$765.63	DB500F-6AS	3/4'' square	$765.63	1	View details
DB50F-3ASDB50F-3AS \| Torque Wrench, 0 - 50 lbf ft$286.13	DB50F-3AS	3/8'' square	$286.13	1	View details
DB50F-4ASDB50F-4AS \| Torque Wrench, 0 - 50 lbf ft$286.13	DB50F-4AS	1/2'' square	$286.13	1	View details
DB50N-SDB50N-S \| Dial Torque Wrench, 5 - 50 Nm$273.00	DB50N-S	3/8'' square	$273.00	1	View details
DB600I-3ASDB600I-3AS \| Torque Wrench, 0 - 600 lbf in$286.13	DB600I-3AS	3/8'' square	$286.13	1	View details
DB600I-4ASDB600I-4AS \| Torque Wrench, 0 - 600 lbf in$286.13	DB600I-4AS	1/2'' square	$286.13	1	View details
DB75I-2ASDB75I-2AS \| Torque Wrench, 0 - 75 lbf in$254.63	DB75I-2AS	1/4'' square	$254.63	1	View details
DB800F-8ASDB800F-8AS \| Dial Torque Wrench, 800 ft lbs$1,054.38	DB800F-8AS	1'' square	$1,054.38	1	View details
DBE1000N-SDBE1000N-S \| Dial Torque Wrench, 100 - 1000 Nm$1,054.38	DBE1000N-S	1'' square	$1,054.38	1	View details
DBE1400N-SDBE1400N-S \| Dial Torque Wrench, 200 - 1400 Nm$1,265.25	DBE1400N-S	1'' square	$1,265.25	1	View details
DBE2100N-SDBE2100N-S \| Dial Torque Wrench, 200 - 2100 Nm$1,598.63	DBE2100N-S	1'' square	$1,598.63	1	View details
DBE2800N-SDBE2800N-S \| Dial Torque Wrench, 300 - 2800 Nm$1,986.95	DBE2800N-S	1 1/2'' square	$1,986.95	1	View details
DBE560N-SDBE560N-S \| Dial Torque Wrench, 50 - 560 Nm$726.25	DBE560N-S	3/4'' square	$726.25	1	View details
DBE700N-SDBE700N-S \| Dial Torque Wrench, 70 - 700 Nm$765.63	DBE700N-S	3/4'' square	$765.63	1	View details
DBE850N-SDBE850N-S \| Dial Torque Wrench, 100 - 850 Nm$926.63	DBE850N-S	1'' square	$926.63	1	View details
DBR4500N-SDBR4500N-S \| Dial Torque Wrench, 500 - 4500 Nm	DBR4500N-S	1 1/2'' square		1	View details
DBR6000N-SDBR6000N-S \| Dial Torque Wrench, 600 - 6000 Nm	DBR6000N-S	1 3/4'' square		1	View details

Overview

The DB Series Tohnichi Torque Wrench Features:

Wide range, high accuracy, lightweight, easy-to -read large scale, suitable for inspection
DB-S model is equipped with a memory pointer to capture peak torque reading
Since the dial is movable, the pointer can be set to the desired torque first and complete tightening as the poiter indicates "0"
The dial indicator has a protective cover to prevent damage to external objects
The accuracy of DB/DBE/DBR is consistent regardless of force point
DBE models come with extension bar. For DBR models applies load by lever block or winch
Applicable for international use including the EU region, Compliant with calibration procedures of ISO 6789 Type I Class B

Features & Benefits
Torque Range: 0.0 In Lb to 3000 Ft Lb
Accuracy: +/- 3%
Accuracy of DB/DBE/DBR is consistent regardless of force point
