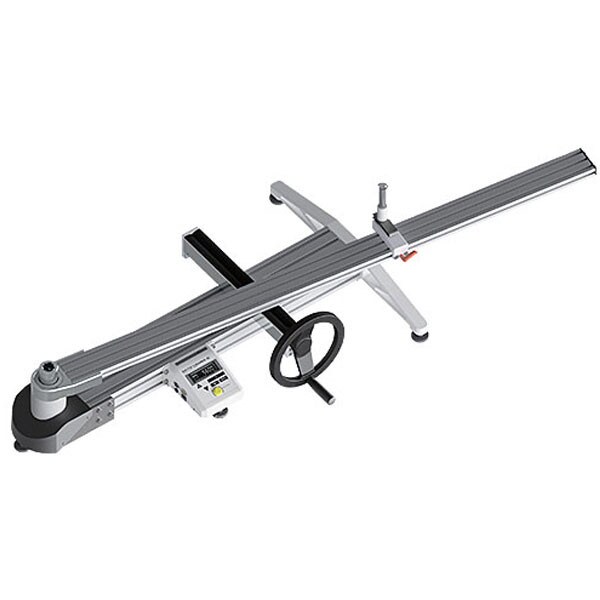

100 - 1000 Nm Torque Wrench Tester, Manual Loader
Elevate your torque wrench calibration and adjustment processes with the Tohnichi 100 - 1000 Nm Torque Wrench Tester with Manual Loader. Its wide torque range, manual loader, customizable judgment patterns, and global unit of measure support make it an indispensable tool for assembly and manufacturing professionals. Invest in this advanced torque wrench tester and experience unparalleled precision and reliability in your quality control procedures.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Introducing the Tohnichi 100 - 1000 Nm Torque Wrench Tester with Manual Loader - the ultimate solution for precise and reliable torque wrench calibration and adjustment. Engineered by Tohnichi, this advanced torque wrench tester combines exceptional performance with user-friendly features to meet the demands of modern assembly and manufacturing processes.
- Min Torque(Nm): 100
- Max Torque(Nm): 1000
- Accuracy: +/-0.5% of reading
- Resolution: 0.1 Nm
- Display: LCD with backlight
- Power Supply: AC 100V - 240V, 50/60Hz
- Dimensions (W x D x H): 440 x 36 x 730 mm
- Weight: 880 g
- Drive Size: 1'' square
| Technical Specifications | |
|---|---|
| Model | DOTE1000N4-G |
| Type | Digital Torque Wrench Tester |
| Drive size | 1'' square |
| Manufacturer | Tohnichi |
| Min Torque (Ft Lb) | 36 |
| SKU | DOTE1000N4-G |
| Stock Code | 2 |
| Min Torque (In Lb) | 440 |
| Max Torque (In Lb) | 880 |
| Max Torque (Ft Lb) | 730 |
| Min Torque (Nm) | 100 |
| Max Torque (Nm) | 1000 |
| Max Torque (Kgf m) | 100 |
| Min Torque (Kgf m) | 10 |
| Series | DOTE4-G |
| Accuracy | ±1% |
| MPN | DOTE1000N4-G |
| Features & Benefits | |
| Wide Torque Range: Covering a broad torque range from 100 to 1000 Nm, this tester accommodates various torque wrench capacities, making it a versatile tool for different applications. | |
| Manual Loader: The manual loader enables smooth and controlled loading of torque wrenches, ensuring accurate and consistent testing results. | |
| Peak and Run Modes: Equipped with both peak and run modes, this torque wrench tester offers versatility for different testing requirements. | |
| Customizable Judgment Patterns: With 10 customizable hi/lo judgment patterns, users can tailor the tester to their specific needs and preferences. | |
| Global Units of Measure: The tester supports multiple units of measure, including cNm, Nm, kgf.cm, kgf.m, lbf.in, and lbf.ft, allowing for global compatibility. | |
