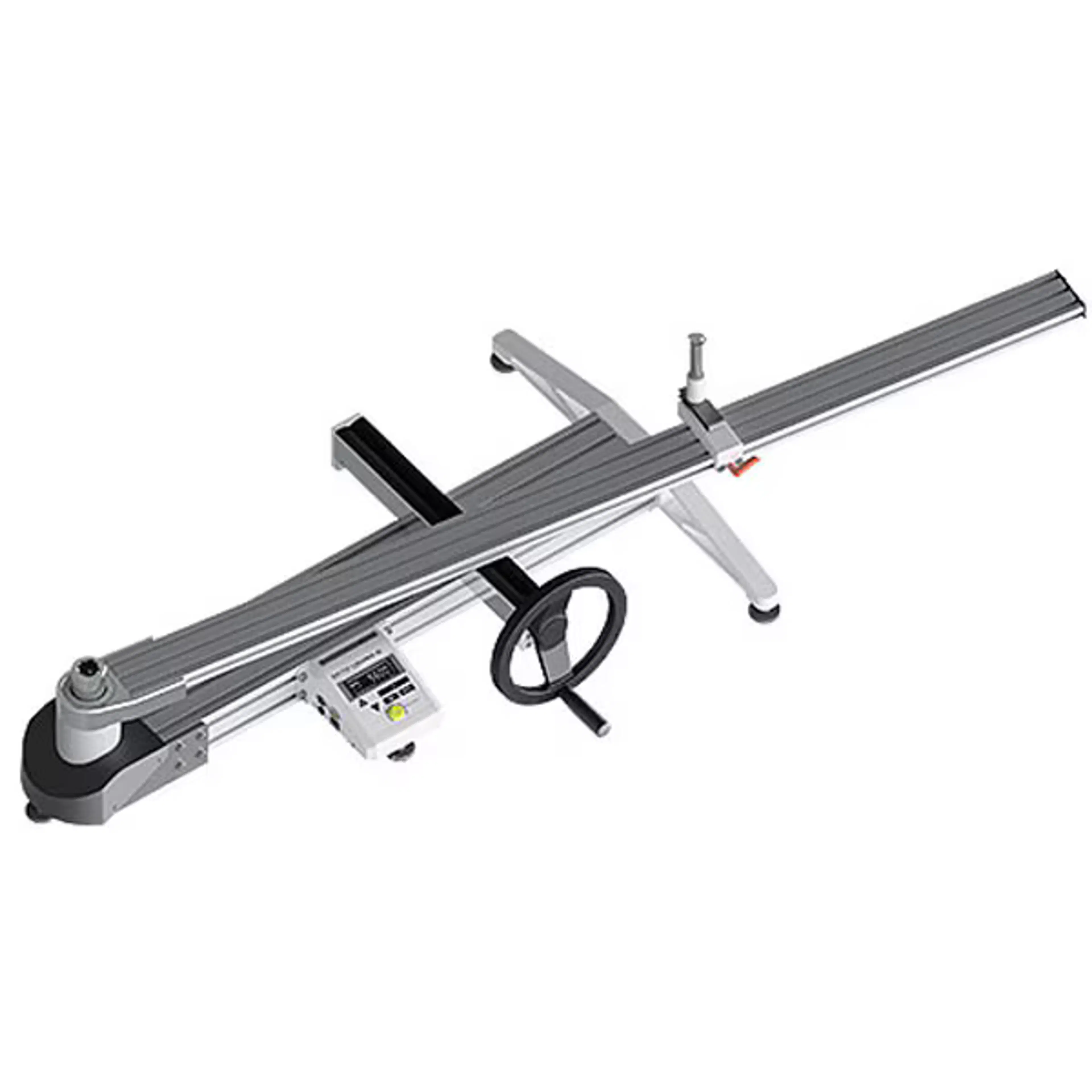

100 - 1000 Nm Torque Wrench Tester, Motor Driven Loader
Elevate your torque wrench calibration and adjustment processes with the Tohnichi 100 - 1000 Nm Torque Wrench Tester with Motor Driven Loader. Its wide torque range, motor-driven loader, customizable judgment patterns, and global unit of measure support make it an indispensable tool for quality control professionals. Invest in this advanced tester and experience unparalleled precision, efficiency, and reliability in your torque wrench maintenance routines.
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Introducing the Tohnichi 100 - 1000 Nm Torque Wrench Tester with Motor Driven Loader - a cutting-edge solution for calibrating and adjusting torque wrenches with utmost precision and efficiency. Engineered by Tohnichi, this advanced tester combines exceptional performance with user-friendly features to streamline your quality control processes.
- Min Torque(Nm): 100
- Max Torque(Nm): 1000
- Accuracy: +/- 1% of reading
- Resolution: 0.1 Nm
- Drive Size: 1'' square
- Power Supply: AC 100V, 50/60Hz
- Dimensions(WxDxH)(mm): 440 x 880 x 360
- Weight: 730 kg
| Technical Specifications | |
|---|---|
| Model | DOTE1000N4-G-MD2 |
| Type | Digital Torque Wrench Tester |
| Drive size | 1'' square |
| Manufacturer | Tohnichi |
| Min Torque (Ft Lb) | 36 |
| SKU | DOTE1000N4-G-MD2 |
| Stock Code | 2 |
| Min Torque (In Lb) | 440 |
| Max Torque (In Lb) | 880 |
| Max Torque (Ft Lb) | 730 |
| Min Torque (Nm) | 100 |
| Max Torque (Nm) | 1000 |
| Max Torque (Kgf m) | 100 |
| Min Torque (Kgf m) | 10 |
| Series | DOTE4-G |
| Accuracy | ±1% |
| MPN | DOTE1000N4-G-MD2 |
| Features & Benefits | |
| Versatile Torque Range: Covering a wide torque range from 100 Nm to 1000 Nm, this tester accommodates various torque wrench capacities, making it a versatile tool for your calibration needs. | |
| Motor Driven Loader: Equipped with a motor-driven loader, the tester enables smooth and effortless operation, reducing operator fatigue and improving overall productivity. | |
| Peak/Run Modes: The tester offers both peak and run modes, providing flexibility to capture maximum torque values or continuous running torque measurements. | |
| Customizable Judgment Patterns: With 10 customizable hi/lo judgment patterns, you can tailor the tester to meet your specific requirements and quality standards. | |
| Global Units of Measure: The tester supports multiple units of measure, including cNm, Nm, kgf.cm, kgf.m, lbf.in, and lbf.ft, allowing for global compatibility and ease of use. | |
