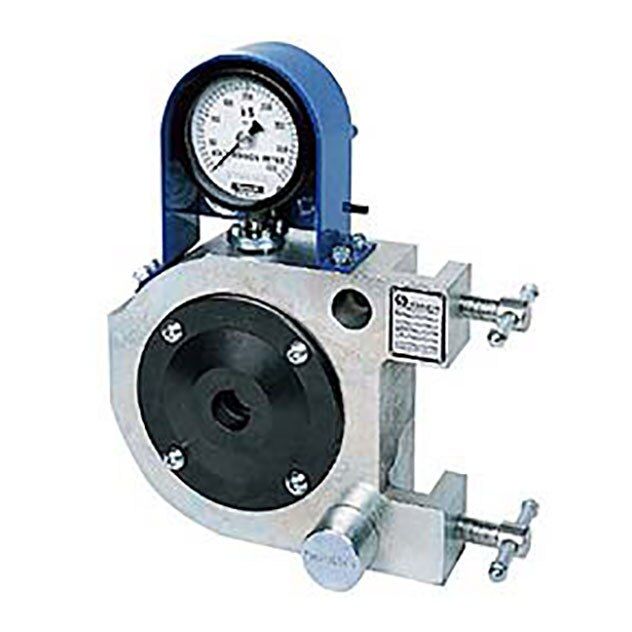

Hydraulic bolt tension meter, 23,000 - 90,000 lbf, M16 - M24
Elevate your bolting operations with the Tohnichi 40BTM-2-A Hydraulic Bolt Tension Meter. Its wide measurement range, bolt size compatibility, and reliable hydraulic mechanism ensure precise and dependable tension measurements. The compact design and internal shock absorber make it a versatile and durable tool for various industrial applications. Invest in the Tohnichi 40BTM-2-A and experience the confidence of accurate bolt tensioning.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview
Introducing the Tohnichi 40BTM-2-A Hydraulic Bolt Tension Meter, a robust and reliable tool designed to accurately measure bolt tension. Engineered by Tohnichi, this advanced tension meter combines precision and durability to meet the demands of your bolting applications.
- Measurement Range: 23,000 - 90,000 lbf
- Bolt Size Compatibility: M16 - M24
- Mechanism: Bourdon Type Hydraulic
- Dimensions: 260mm
- Application: Torque Coefficient Evaluation, Strength Test of Bolts
- Features: Internal Shock Absorber, Compact and Lightweight
- Manufacturer: Tohnichi
| Technical Specifications | |
|---|---|
| Model | 40BTM-2-A |
| Type | Hydraulic bolt tension meter |
| Wrench Type | Bolt Tension Meter |
| Manufacturer | Tohnichi |
| SKU | 40BTM-2-A |
| Stock Code | 2 |
| Dimensions | 261 x 289 mm |
| Bolt Size - mm | M16 - M24 |
| Overall Length | 260 |
| Weight (lbs) | 27.78 |
| Series | BTM |
| Capacity (lbs) | 90000 |
| Weight (kg) | 12.6 |
| Tension Range | 23,000 - 90,000 lbf |
| MPN | 40BTM-2-A |
| Features & Benefits | |
| Wide Measurement Range: With a measurement range of 23,000 to 90,000 lbf, the 40BTM-2-A tension meter caters to a variety of bolting requirements, making it a versatile addition to your toolbox. | |
| Bolt Size Compatibility: This tension meter is compatible with bolts ranging from M16 to M24, providing flexibility to tackle different bolt sizes commonly found in various industries. | |
| Bourdon Type Hydraulic Mechanism: The 40BTM-2-A employs a reliable Bourdon type hydraulic mechanism, ensuring accurate and consistent tension measurements. | |
| Compact and Lightweight Design: Despite its robust construction, this tension meter boasts a compact and lightweight profile, allowing for easy handling and access to tight spaces. | |
| Internal Shock Absorber: Equipped with an internal shock absorber, the 40BTM-2-A can withstand the impact of impact wrenches, making it suitable for use in demanding industrial environments. | |
