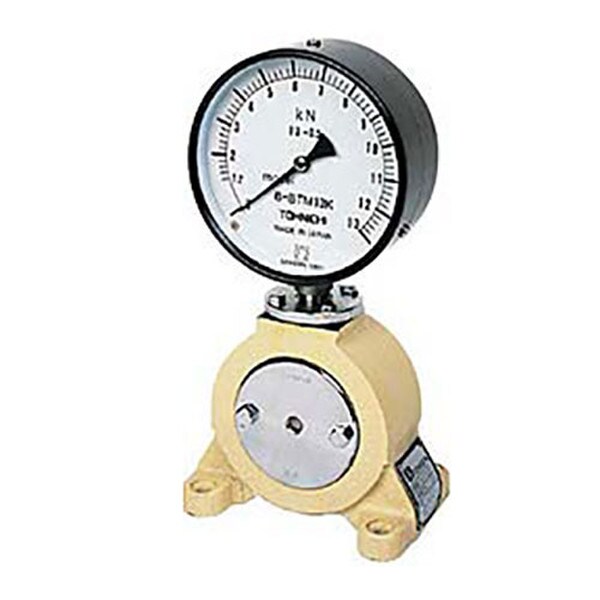

Tohnichi4B-BTM
Hydraulic bolt tension meter, 0.4 - 4 tons, M10 - M14
The Tohichi 4B-BTM Hydraulic Bolt Tension Meter is an indispensable tool for accurate bolt tension measurement. Its versatility, compact design, and reliable performance make it an asset in various industries, including automotive, construction, and manufacturing. Invest in this high-quality bolt tension meter to ensure precise and safe fastening operations.
$3,313.63List $3,787.00
Save $473.37Total$3,313.63Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
4B-BTM | Hydraulic bolt tension meter, 0.4 - 4 tons, M10 - M144B-BTM
Total$3,313.63
1
Details
Product information
Overview
Introducing the Tohnichi 4B-BTM Hydraulic Bolt Tension Meter, a robust and reliable tool designed to accurately measure bolt tension. Engineered by Tohnichi, this bolt tension meter combines precision and durability to meet the demands of various industrial applications.
- Axial Tension Range: 2893.2 - 28932 Lbf Ft
- Overall Length: 134mm
- Bolt Size Compatibility: M10 - M14
- Measurement Type: Hydraulic
- Manufacturer: Tohnichi
| Technical Specifications | |
|---|---|
| Model | 4B-BTM |
| Type | Hydraulic bolt tension meter |
| Wrench Type | Bolt Tension Meter |
| Manufacturer | Tohnichi |
| SKU | 4B-BTM |
| Stock Code | 2 |
| Dimensions | 135 x 241 mm |
| Bolt Size - mm | M10 - M14 |
| Overall Length | 134 |
| Weight (lbs) | 21.61 |
| Series | BTM |
| Weight (kg) | 9.8 |
| Capacity (tons) | 4 |
| Tension Range | 0.4 - 4 tons |
| MPN | 4B-BTM |
| Features & Benefits | |
| Accurate Tension Measurement: With a measurement range of 0.4 to 4 tons, the 4B-BTM enables precise bolt tension readings, ensuring optimal torque and reliable fastening. | |
| Versatile Bolt Size Compatibility: This bolt tension meter is compatible with bolts ranging from M10 to M14, making it suitable for a wide variety of applications. | |
| Bourdon Type Hydraulic Mechanism: The 4B-BTM utilizes a Bourdon type hydraulic mechanism, providing accurate and consistent tension measurements. | |
| Compact and Lightweight Design: Its compact and lightweight construction allows for easy handling and portability, making it convenient for use in various environments. | |
| Internal Shock Absorber: The integrated shock absorber allows for the use of impact wrenches, ensuring versatility and efficiency in tightening operations. | |
