High Power Semi-Automatic Airtork Torque Wrench, 10 - 50 Nm
Elevate your tightening operations with the Tohnichi AC50N3 High Power Semi-Automatic Airtork Torque Wrench. Its innovative design, exceptional performance, and user-friendly features make it an indispensable tool for any assembly professional. Invest in this powerhouse and experience the ultimate in speed, precision, and efficiency.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|
 CNA-4MK3CNA-4MK3 | Count Checker$463.87 | — | $463.87 | 1 | View details |
 DOTE50N4-G-MD2DOTE50N4-G-MD2 | 5 - 50 Nm Torque Wrench Tester, Motor Driven Loader$7,927.50 | DOTE50N4-G-MD2 | $7,927.50 | 1 | View details |
| DOTE50N4-GDOTE50N4-G | 5 - 50 Nm Torque Wrench Tester, Manual Loader$4,681.25 | DOTE50N4-G | $4,681.25 | 1 | View details |
Details
Product information
Overview

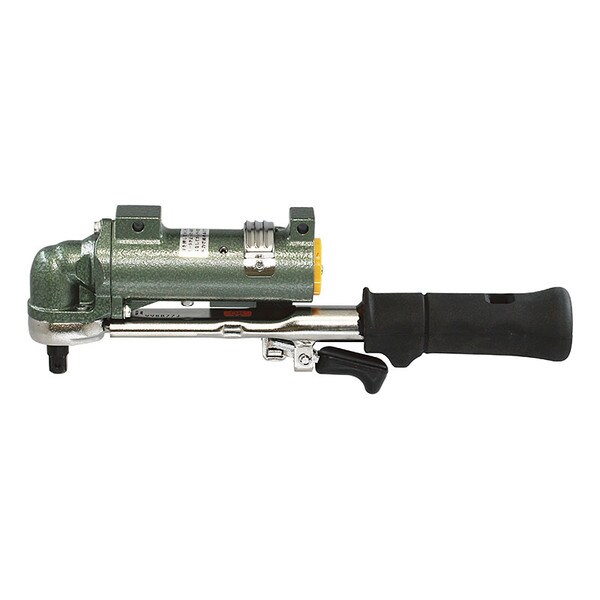

Introducing the Tohnichi AC50N3 High Power Semi-Automatic Airtork Torque Wrench, a revolutionary tool that combines speed, precision, and efficiency in one powerful package. Engineered by Tohnichi, a leading name in the assembly industry, this torque wrench takes your fastening operations to new heights.
- Min Torque(Nm): 10
- Max Torque(Nm): 50
- Drive Size: 3/8'' square
- Free Speed(RPM): 1000
- Head Type: Angle Head
- Model: AC50N3
- Manufacturer: Tohnichi
| Technical Specifications | |
|---|---|
| Model | AC50N3 |
| Type | Standard |
| Drive size | 3/8'' square |
| Manufacturer | Tohnichi |
| Free Speed (RPM) | 1000 |
| SKU | AC50N3 |
| Stock Code | 2 |
| Style | Angle Head |
| Min Torque (Nm) | 10 |
| Max Torque (Nm) | 50 |
| Graduations (Nm) | 0.5 |
| Series | AC3 |
| Weight (kg) | 1.5 |
| MPN | AC50N3 |
| Features & Benefits | |
| Semi-Automatic Operation: Experience the convenience of a semi-automatic torque wrench. The built-in air motor allows for fast provisional tightening, while the final tightening is achieved manually with precision. | |
| Enhanced Efficiency: This innovative tool replaces the conventional two-step tightening process, integrating both pneumatic and manual tightening into a single streamlined operation, saving you time and effort. | |
| Simple Torque Adjustment: Adjusting the tightening torque is effortless with the included hex key. Simply use the scale on the handle to set the desired torque value. | |
| Improved Trigger Mechanism: The AC3 version of this torque wrench features a new ratchet square drive that accepts anti-vibration sockets (not included) and an enhanced trigger mechanism for improved control. | |
| No Reaction Arm Required: With a maximum capacity of 180 Nm, this torque wrench eliminates the need for a reaction arm, providing greater flexibility and ease of use. | |
