Click the image to zoom

TohnichiTPC

Protocol Converter

$306.00

Total$306.00Taxes & shipping at checkout

Quantity

Free UPS Ground over $999.99
Factory-authorised service

Warning:California Proposition 65 Trade Regulations Advisory Notice

Documents1 file

PDFTohnichi TPC Protocol Converter Brochure (PDF)Open

TPC | Protocol ConverterTPC

Total$306.00

Recommended Accessories

30 items

Add-on accessories that can be purchased alongside this product.

Product	Price	Qty
CD5CD5 \| Compact Display$1,681.87	$1,681.87	1	View details
CSPBLA100N3X15DCSPBLA100N3X15D \| CSPBLA100N3X15D Solar RF Torque Wrench$553.28	$553.28	1	View details
CSPBLA140N3X15DCSPBLA140N3X15D \| CSPBLA140N3X15D Solar RF Torque Wrench$582.40	$582.40	1	View details
CSPBLA280N3X22DCSPBLA280N3X22D \| CSPBLA280N3X22D Torque Wrench$659.68	$659.68	1	View details
CSPBLA420NX22DCSPBLA420NX22D \| CSPBLA420NX22D Solar RF Torque Wrench$778.40	$778.40	1	View details
CSPBLA50N3X12DCSPBLA50N3X12D \| CSPBLA50N3X12D Solar RF Torque Wrench$542.08	$542.08	1	View details
CSPBLA50N3X15DCSPBLA50N3X15D \| CSPBLA50N3X15D Solar RF Torque Wrench$547.68	$547.68	1	View details
CSPFHSLS140N3X15DCSPFHSLS140N3X15D \| 2.4 GHz Wireless Interchangeable Head Type Preset Torque Wrench, 30-140N.m, 300-1400kgf.cm, 265.5-1239.1lbf.in, 15D$573.30	$573.30	1	View details
CSPFHSLS200N3X19DCSPFHSLS200N3X19D \| 2.4 GHz Wireless Interchangeable Head Type Preset Torque Wrench, 40-200N.m, 400-2000kgf.cm, 354-1770.1lbf.in, 19D$582.76	$582.76	1	View details
CSPFHSLS25N3X10DCSPFHSLS25N3X10D \| 2.4 GHz Wireless Interchangeable Head Type Preset Torque Wrench, 5-25N.m, 50-250kgf.cm, 44.3-221.2lbf.in, 10D$528.16	$528.16	1	View details
CSPFHSLS50N3X12DCSPFHSLS50N3X12D \| 2.4 GHz Wireless$533.40	$533.40	1	View details
CSPFMA100N3X15DCSPFMA100N3X15D \| CSPFMA100N3X15D Wireless Torque Wrench 900MHZ$553.28	$553.28	1	View details
CSPFMA140N3X15DCSPFMA140N3X15D \| CSPFMA140N3X15D Wirelss Torque Wrench 900MHZ$582.40	$582.40	1	View details
CSPFMA200N3X19DCSPFMA200N3X19D \| CSPFMA200N3X19D Wirelss Torque Wrench 900MHZ$592.48	$592.48	1	View details
CSPFMA25N3X10DCSPFMA25N3X10D \| CSPFMA25N3X10D TORQUE WRENCH 900MHZ$536.48	$536.48	1	View details
CSPFMA280N3X22DCSPFMA280N3X22D \| CSPFMA280N3X22D TORQUE WRENCH 900MHZ$659.68	$659.68	1	View details
CSPFMA420NX22DCSPFMA420NX22D \| CSPFMA420NX22D TORQUE WRENCH 900MHZ$778.40	$778.40	1	View details
CSPFMA50N3X12DCSPFMA50N3X12D \| CSPFMA50N3X12D TORQUE WRENCH 900 MHZ$542.08	$542.08	1	View details
QSPFH100N4-ARQSPFH100N4-AR \| 2.4 GHz Wireless Ratchet Head Head Type Preset Torque Wrench, 20-100N.m, 200-1000kgf.cm, 177-885lbf.in, 1/2'' Square Drive$488.19	$488.19	1	View details
QSPFH140N3-ARQSPFH140N3-AR \| 2.4 GHz Wireless Ratchet Head Head Type Preset Torque Wrench, 30-140N.m, 300-1400kgf.cm, 265.5-1239.1lbf.in, 1/2'' Square Drive$504.99	$504.99	1	View details
QSPFH200N4-ARQSPFH200N4-AR \| 2.4 GHz Wireless Ratchet Head Head Type Preset Torque Wrench, 40-200N.m, 400-2000kgf.cm, 354-1770.1lbf.in, 1/2'' Square Drive$527.39	$527.39	1	View details
QSPFH280N3-ARQSPFH280N3-AR \| 2.4 GHz Wireless Ratchet Head Head Type Preset Torque Wrench, 40-280N.m, 4-28kgf.m, 354-2478.2lbf.in, 3/4'' Square Drive$583.39	$583.39	1	View details
R-BLAR-BLA \| 900 MHz Receiver for BLA$709.39	$709.39	1	View details
R-FH256R-FH256 \| Radio Frequency Torque Wrench System Receiver$513.39	$513.39	1	View details
R-FHD256R-FHD256 \| 2.4 GHz Receiver for FHD/FD/FDD$1,886.00	$1,886.00	1	View details
R-FMAR-FMA \| Fma Receiver For 900Mhz$623.47	$623.47	1	View details
SB-FMASB-FMA \| Fma Setting Box For 900Mhz$994.93	$994.93	1	View details
T-BLAT-BLA \| Solar Powered 900 MHz Transmitter Module$352.80	$352.80	1	View details
T-FHSLS256T-FHSLS256 \| Radio Frequency Torque Wrench System Transmitter$322.00	$322.00	1	View details
T-FMAT-FMA \| Fma Transmitter 900Mhz$354.67	$354.67	1	View details

Overview

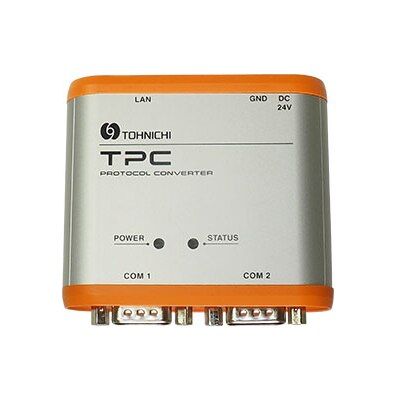

Tohnichi Protocol Converter

TPC

Protocol Converter, Model TPC by Tohnichi. Available to order from Flexible Assembly Systems. Do you see the same Protocol Converter for a much lower price? Contact Customer Service about Price Matching!

Features:

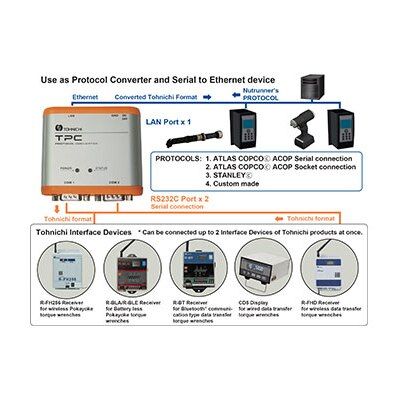

Protocol Converter for providing compatibility of Tohnichi interface devices to other protocols.

Convert Tohnichi output format to existing protocols in your network.
Tag timestamps on tightening data by built-in clock.
Integrate tightening management into VIN by connecting a barcode reader.

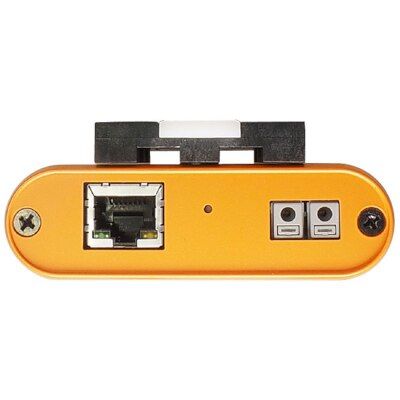

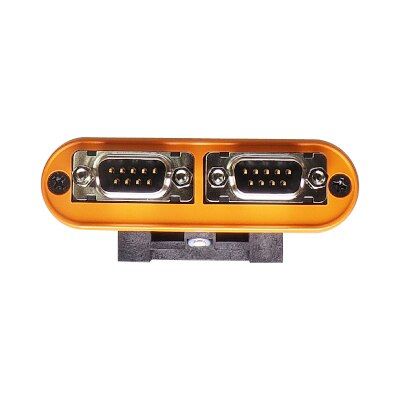

RS232C and Ethernet conversion function.
Interface with up to two different Tohnichi devices: R-FH256 Receiver, R-BLA/R-BLE Receiver, R-BT Receiver for Bluetooth, CD5 Display, R-FHD Receiver.
Select from Three standard protocols: 1: Atlas Copco Open Protocol Serial Connections, 2: Atlas Copco Open Protocol Socket Connection, 3: Stanley or request a specific protocol for an additional fee.

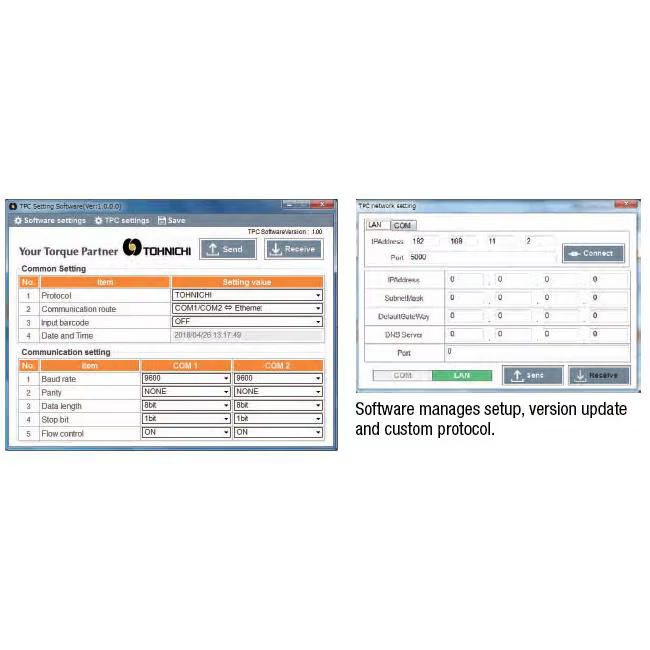

Includes Setting Software to manage set up, communications settings, version updates and custom protocols.

Technical Specifications
Model	TPC
Material	Aluminum
Manufacturer	Tohnichi
Application Level/Display	LED
Operating Temperature Range	0 to 40°C
SKU	TPC
Stock Code	2
Power Source	BA-8W
Power supply	DC24V (18V - 30V), AC100V - 240V with external AC adapter
Output	RS232C
MPN	TPC

Protocol Converter
