TohnichiA100N3

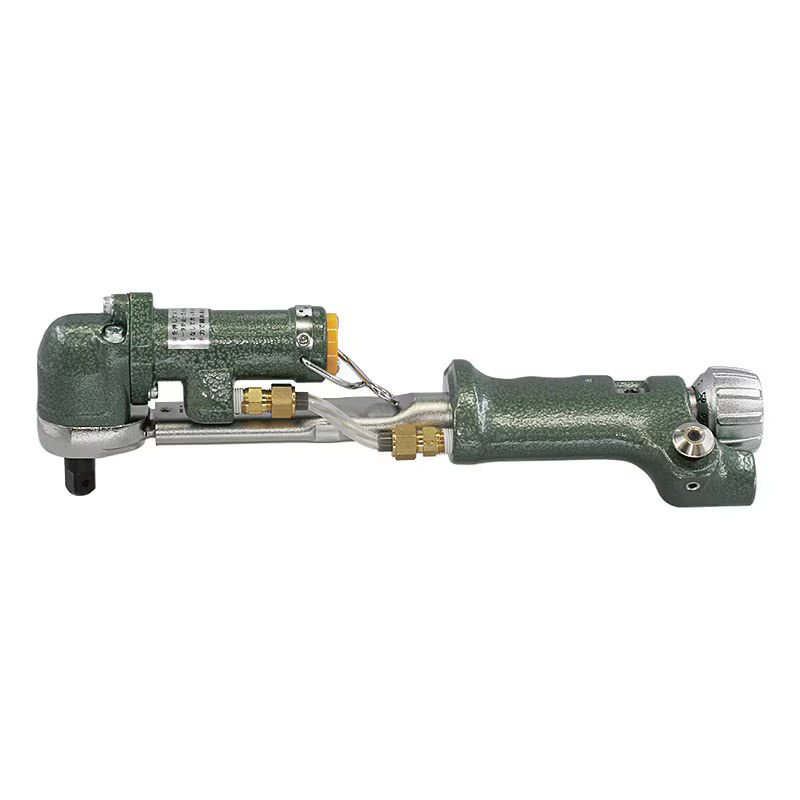

Semi-Automatic Airtork Torque Wrench, 20 - 100 Nm
Elevate your assembly operations with the Tohnichi A100N3 Semi-Automatic Airtork Torque Wrench. Its innovative design, combining speed and precision, will revolutionize your fastening processes. Order now from Flexible Assembly Systems and experience the difference for yourself.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
A100N3 | Semi-Automatic Airtork Torque Wrench, 20 - 100 NmA100N3
Price on request
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Model | Price | Qty | |
|---|---|---|---|---|
 CNA-4MK3CNA-4MK3 | Count Checker$463.87 | — | $463.87 | 1 | View details |
 DOTE100N4-G-MD2DOTE100N4-G-MD2 | 10 - 100 Nm Torque Wrench Tester, Motor Driven Loader$7,927.50 | DOTE100N4-G-MD2 | $7,927.50 | 1 | View details |
| DOTE100N4-GDOTE100N4-G | 10 - 100 Nm Torque Wrench Tester, Manual Loader$4,681.25 | DOTE100N4-G | $4,681.25 | 1 | View details |
Details
Product information
Overview
Introducing the Tohnichi A100N3 Semi-Automatic Airtork Torque Wrench, a revolutionary tool that combines speed, precision, and efficiency in one powerful package. Engineered by Tohnichi, a leading manufacturer of high-quality assembly tools, this torque wrench takes your fastening operations to the next level.
- Min Torque(Nm): 20
- Max Torque(Nm): 100
- Drive Size: 1/2'' square
- Free Speed(RPM): 800
- Head Type: Angle Head
- Start Type: Push-to-Start
- Manufacturer: Tohnichi
| Technical Specifications | |
|---|---|
| Model | A100N3 |
| Type | Air torque nutrunner |
| Drive size | 1/2'' square |
| Manufacturer | Tohnichi |
| Free Speed (RPM) | 800 |
| SKU | A100N3 |
| Start Type | Push-to-Start |
| Style | Angle Head |
| Min Torque (Nm) | 20 |
| Max Torque (Nm) | 100 |
| Graduations (Nm) | 1 |
| Series | A3 |
| MPN | A100N3 |
| Features & Benefits | |
| Semi-Automatic Operation: Experience the best of both worlds with the A100N3's semi-automatic design. The air motor mounted on the torque wrench enables fast provisional tightening, while the final tightening is performed manually with precision. | |
| Increased Efficiency: This innovative tool replaces the conventional two-step tightening process, integrating both pneumatic and manual tightening into a single streamlined operation, saving you time and effort. | |
| Simple Torque Adjustment: Adjusting the tightening torque is a breeze with the A100N3. Simply turn the knob to adjust the scale on the handle, allowing you to switch between torque settings quickly and easily. | |
| Palm Button Control: The palm button engages the air motor, providing effortless provisional tightening. Once the desired provisional torque is achieved, release the button and apply hand force until the torque wrench clicks at the required torque setting. | |
| Easy Calibration: Calibration is a breeze with the A100N3. Using a standard torque wrench tester like Tohnichi's DOTE4-G, you can calibrate the tool without the need for a joint simulator, as the torque wrench controls the final applied torque. | |
