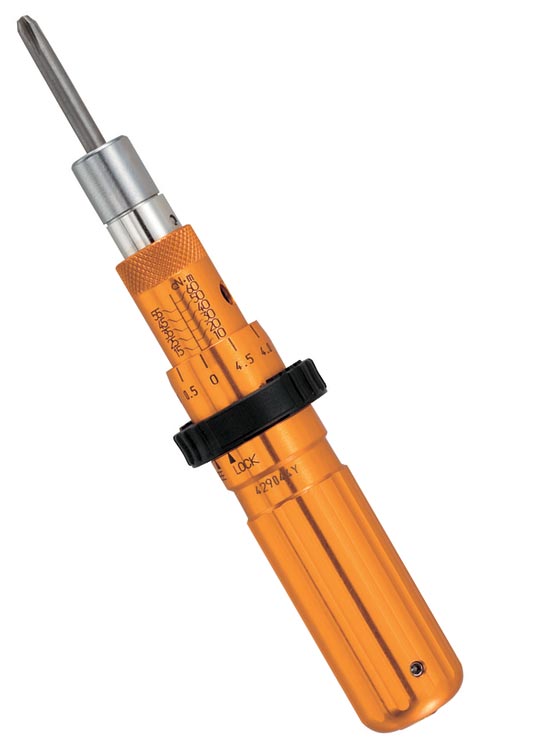

TD Series Torque Screwdriver

With the TD series adjustable Torque Screwdriver , torque settings are easily and accurately changed through a unique adjusting knob with an easy-to-read laser etched scale.

Models and pricing below

Documents2 files

Models Available

35 items

Other models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.

Product	Model	Screw Size	Price	Qty
1.5RTD1.5RTD \| Rotary Adjustable Torque Screwdriver, 0.2 - 1.5 Kgf cm, 0.01 grad.$167.13	1.5RTD	M1.4 - M1.8	$167.13	1	View details
12RTD12RTD \| Rotary Adjustable Torque Screwdriver, 2 - 12 Kgf cm, 0.1 grad.$174.13	12RTD	M3 - M3.5	$174.13	1	View details
26RTD26RTD \| Rotary Adjustable Torque Screwdriver, 6 - 26 Kgf cm, 0.2 grad.$189.88	26RTD	M4 - M4.5	$189.88	1	View details
3RTD3RTD \| Rotary Adjustable Torque Screwdriver, 0.4 - 3 Kgf cm, 0.02 grad.$167.13	3RTD	M1.8 - M2.2	$167.13	1	View details
50RTD50RTD \| Rotary Adjustable Torque Screwdriver, 10 - 50 Kgf cm, 0.5 grad.$229.25	50RTD	M4.5 - M6	$229.25	1	View details
6RTD6RTD \| Rotary Adjustable Torque Screwdriver, 1 - 6 Kgf cm, 0.05 grad.$171.50	6RTD	M2.2 - M3	$171.50	1	View details
AMLD12ZAMLD12Z \| Adjustable Torque Screwdriver, 3 - 12 in oz, 0.2 grad.$657.13	AMLD12Z	M1.1 - M.16	$657.13	1	View details
AMLD3ZAMLD3Z \| Adjustable Torque Screwdriver, 1 - 3 in oz, 0.05 grad.$657.13	AMLD3Z	M1	$657.13	1	View details
AMLD6ZAMLD6Z \| Adjustable Torque Screwdriver, 2 - 6 in oz, 0.1 grad.$657.13	AMLD6Z	M1 - M1.2	$657.13	1	View details
AMRD12ZAMRD12Z \| Rotary Adjustable Torque Screwdriver for fine screws, 3 - 12 in oz, 0.2 grad.$898.63	AMRD12Z	M1.1 - M.16	$898.63	1	View details
AMRD3ZAMRD3Z \| Rotary Adjustable Torque Screwdriver for fine screws, 1 - 3 in oz, 0.05 grad.$898.63	AMRD3Z	M1	$898.63	1	View details
AMRD6ZAMRD6Z \| Rotary Adjustable Torque Screwdriver for fine screws, 2 - 6 in oz, 0.1 grad.$898.63	AMRD6Z	M1 - M1.2	$898.63	1	View details
LTD1.3ILTD1.3I \| Adjustable Torque Screwdriver, 0.2 - 1.3 in lbs, 0.01 grad.$150.50	LTD1.3I	M1.4 - M1.8	$150.50	1	View details
LTD180ILTD180I \| Adjustable Torque Screwdriver, 30 - 180 in lbs, 0.5 grad.$735.83	LTD180I	M7 - M8	$735.83	1	View details
LTD2.6ILTD2.6I \| Adjustable Torque Screwdriver, 0.4 - 2.6 in lbs, 0.02 grad.$150.50	LTD2.6I	M1.8 - M2.2	$150.50	1	View details
LTD22ILTD22I \| Adjustable Torque Screwdriver, 6 - 22 in lbs, 0.2 grad.$171.50	LTD22I	M4 - M4.5	$171.50	1	View details
LTD40ILTD40I \| Adjustable Torque Screwdriver, 10 - 40 in lbs, 0.5 grad.$210.00	LTD40I	M4.5 - M6	$210.00	1	View details
LTD5ILTD5I \| Adjustable Torque Screwdriver, 1 - 5 in lbs, 0.05 grad.$155.75	LTD5I	M2.2 - M3	$155.75	1	View details
LTD90ILTD90I \| Adjustable Torque Screwdriver, 20 - 90 in lbs, 0.5 grad.$272.13	LTD90I	M6 - M7	$272.13	1	View details
RTD1.3IRTD1.3I \| Rotary Adjustable Torque Screwdriver, 0.2 - 1.3 in lbs, 0.01 grad.$167.13	RTD1.3I	M1.4 - M1.8	$167.13	1	View details
RTD10IRTD10I \| Rotary Adjustable Torque Screwdriver, 2 - 10 in lbs, 0.1 grad.$174.13	RTD10I	M3 - M3.5	$174.13	1	View details
RTD120CNRTD120CN \| Rotary Adjustable Torque Screwdriver, 20 - 120 Ncm, 1 grad.$174.13	RTD120CN	M3 - M3.5	$174.13	1	View details
RTD150ZRTD150Z \| Rotary Adjustable Torque Screwdriver, 30 - 150 in oz, 2 grad.$174.13	RTD150Z	M3 - M3.5	$174.13	1	View details
RTD15CNRTD15CN \| Rotary Adjustable Torque Screwdriver, 2 - 15 Ncm, 0.1 grad.$167.13	RTD15CN	M1.4 - M1.8	$167.13	1	View details
RTD2.6IRTD2.6I \| Rotary Adjustable Torque Screwdriver, 0.4 - 2.6 in lbs, 0.02 grad.$167.13	RTD2.6I	M1.8 - M2.2	$167.13	1	View details
RTD20ZRTD20Z \| Rotary Adjustable Torque Screwdriver, 6 - 20 in oz, 0.2 grad.$167.13	RTD20Z	M1.4 - M1.8	$167.13	1	View details
RTD22IRTD22I \| Rotary Adjustable Torque Screwdriver, 6 - 22 in lbs, 0.2 grad.$189.88	RTD22I	M4 - M4.5	$189.88	1	View details
RTD260CNRTD260CN \| Rotary Adjustable Torque Screwdriver, 60 - 260 Ncm, 2 grad.$189.88	RTD260CN	M4 - M4.5	$189.88	1	View details
RTD30CNRTD30CN \| Rotary Adjustable Torque Screwdriver, 4 - 30 Ncm, 0.2 grad.$167.13	RTD30CN	M1.8 - M2.2	$167.13	1	View details
RTD40IRTD40I \| Rotary Adjustable Torque Screwdriver, 10 - 40 in lbs, 0.5 grad.$229.25	RTD40I	M4.5 - M6	$229.25	1	View details
RTD40ZRTD40Z \| Rotary Adjustable Torque Screwdriver, 15 - 40 in oz, 0.5 grad.$167.13	RTD40Z	M1.8 - M2.2	$167.13	1	View details
RTD500CNRTD500CN \| Rotary Adjustable Torque Screwdriver, 100 - 500 Ncm, 5 grad.$229.25	RTD500CN	M4.5 - M6	$229.25	1	View details
RTD5IRTD5I \| Rotary Adjustable Torque Screwdriver, 1 - 5 in lbs, 0.05 grad.$171.50	RTD5I	M2.2 - M3	$171.50	1	View details
RTD60CNRTD60CN \| Rotary Adjustable Torque Screwdriver, 10 - 60 Ncm, 0.5 grad.$171.50	RTD60CN	M2.2 - M3	$171.50	1	View details
RTD80ZRTD80Z \| Rotary Adjustable Torque Screwdriver, 20 - 80 in oz, 1 grad.$171.50	RTD80Z	M2.2 - M3	$171.50	1	View details

Overview

Ratcheting (Rotary) slip clutch mechanism available on RTD Models Only
Preventing over-torque by "slipping" when more force is applied beyond set torque
Toggle clutch type torque detection mechanism ensures accuracy and long durability
Easy torque adjustment
Locking mechanism prevents the change of torque while in use
Applicable to use in the EU region
Complies with calibration procedures of ISO6789 Type II Class D
Certificate Of Calibration Included

Features & Benefits
Torque Range: 1.0 In Oz to 180 In Lb
Accuracy: +/- 3%
From $123
