TSLOTS650105
1.5 in. x 1.5 in. Black T-Slotted Aluminum
Extruded aluminum are the building blocks for your ideas and innovations. Each TS15-15 extrusion can be cut up to 240'' (20 ft / 6096 mm)
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
650105 | 1.5 in. x 1.5 in. Black T-Slotted Aluminum650105
Price on request
Details
Product information
Overview
TSLOTS 650105

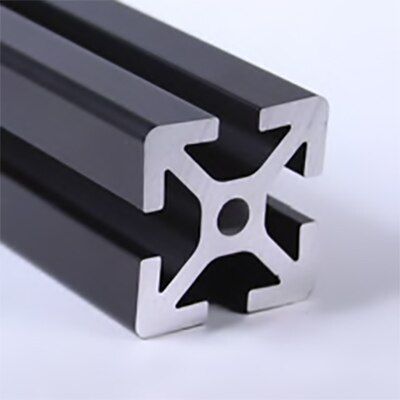

1.5” X 1.5” Black T-Slotted Aluminum
The TSLOTS 1.5” X 1.5” Black T-Slotted Aluminum is available to order online at FlexibleAutomationSupply.com.
Are you looking for a custom extrusion or 1.5” X 1.5” Black T-Slotted Aluminum that is similar to the current 650105? Contact Customer Service for more information.

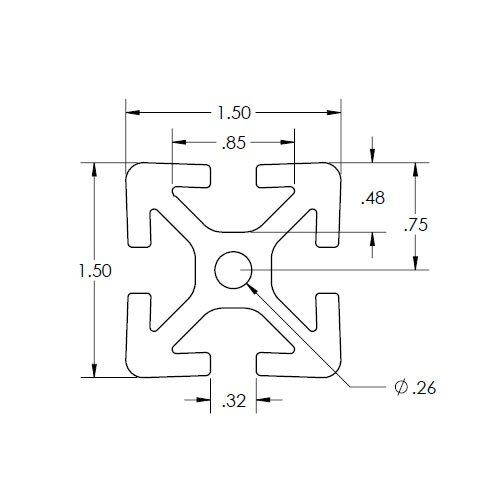

| Technical Specifications | |
|---|---|
| # Slots | 4 |
| Dimension C | 0.32 |
| Dimension D | Ø.26 |
| Dimension A | 1.00 |
| Dimension B | 1.50 |
| Moment of Inertia | Ix=.266 in4 (11.072 cm4); Iy=.266 in4 (11.072 cm4) |
| Model | 650105 |
| Estimated Area | 1.198 in2 |
| Type | Smooth |
| Manufacturer | TSLOTS |
| Finish | Black Anodized |
| Length (mm) | 6096 |
| Length (In) | 240 |
| SKU | 650105 |
| Width (in) | 1.5 |
| Weight (lbs) | 1.406 lbs/ft |
| Height (in) | 1.5 |
| Series | 15 |
| Length (in) | 1 |
| MPN | 650105 |
| Features & Benefits | |
| Smooth Fractional Extrusion | |
| Black Anodized finish | |
| Request cut lengths up to 240'' (20 ft / 6096 mm) | |
| Order by in, ft, or mm | |
| Order by in | |
| ft | |
| or mm | |
