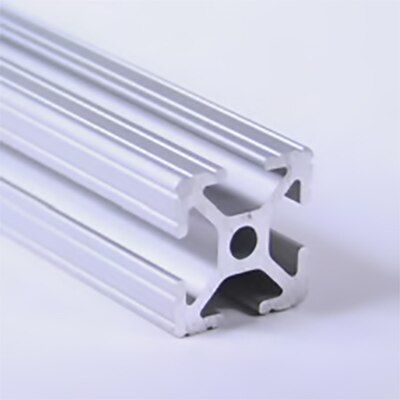

1 in. x 1 in. Grooved T-Slotted Extrusion
Extruded aluminum are the building blocks for your ideas and innovations. Each TS10-10 GR extrusion can be cut up to 240'' (20 ft / 6096 mm)
A specialist replies within one business day.
Details
Product information
Overview
TSLOTS 650070
1'' X 1'' Grooved T-Slotted Extrusion
Spring Lock FeatureTSLOTS Extrusions have a 2° taper that spring locks fasteners as they are tightened. Fasteners will not loosen, even under heavy vibration.
Aluminum AlloyAn aluminum extrusion alloy is a predetermined mixture of one or more elements together with aluminum to be heated and hydraulically pressed through an extrusion die. Some common elements alloyed with aluminum include copper, magnesium, manganese, chromium, silicon, iron, nicklel and zinc.
TSLOTS extrsions use the 6560 or equivelent alloy. In addition to aluminum, the major alloying elements for this alloy include "Mg .25 - .45%" and "Si .35 - .8%".
AnodizingAnodizing is an electrochemical process that thickens and toughens the naturally occurring protective oxide. The resulting finish makes a corrosion resistant extrusion. TSLOTS extrusions have an etch anodize finish that is .25 - .35 mil. thick and the anodize is a Type 2 Sulfuric.
| Technical Specifications | |
|---|---|
| # Slots | 4 |

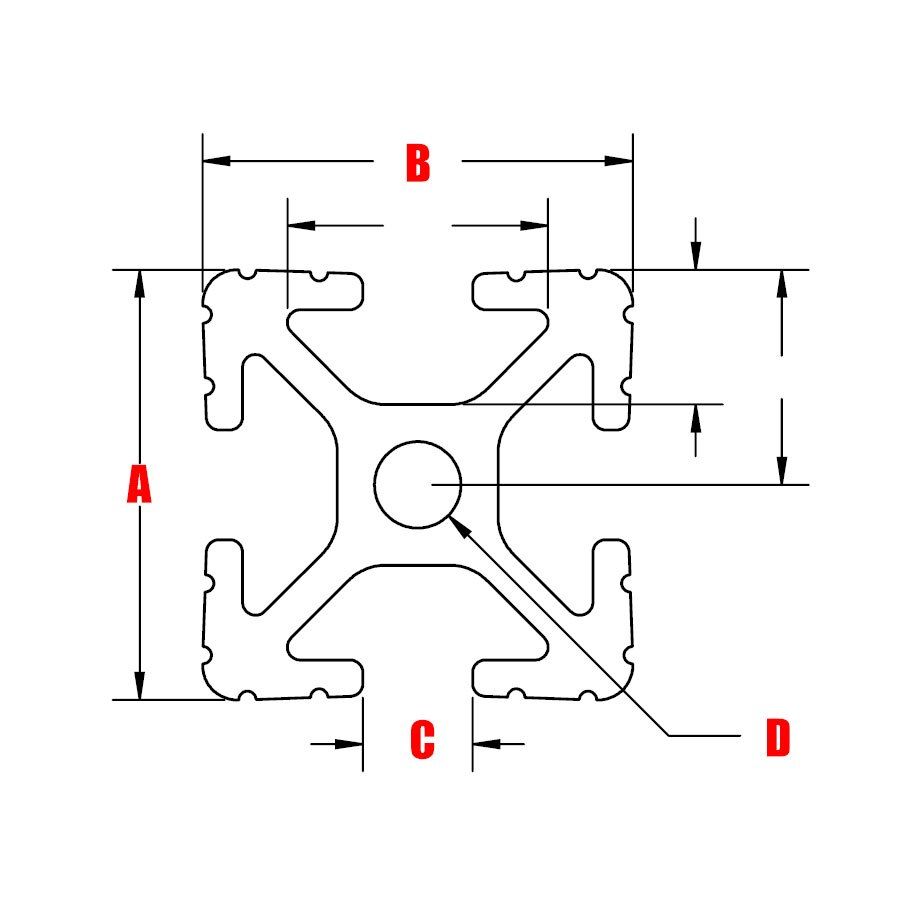

| Dimension C | 0.26 |
| Dimension D | Ø.20 |
| Dimension A | 1.00 |
| Dimension B | 1.00 |
| Moment of Inertia | Ix=0.046 in4 (1.915 cm4); Iy=0.046 in4 (1.915 cm4) |
| Model | 650070 |
| Estimated Area | 0.457 in2 |
| Type | Grooved |
| Manufacturer | TSLOTS |
| Finish | Black Anodized |
| Length (mm) | 6096 |
| Length (In) | 240 |
| SKU | 650070 |
| Width (in) | 1 |
| Weight (lbs) | 0.548 lbs/ft |
| Height (in) | 1 |
| Series | 10 |
| Length (in) | 1 |
| MPN | 650070 |
| Features & Benefits | |
| Grooved Fractional Extrusion | |
| Black Anodized finish | |
| Request cut lengths up to 240'' (20 ft / 6096 mm) | |
| Order by in, ft, or mm | |
| Order by in | |
| ft | |
| or mm | |
