URYUUAT-200L

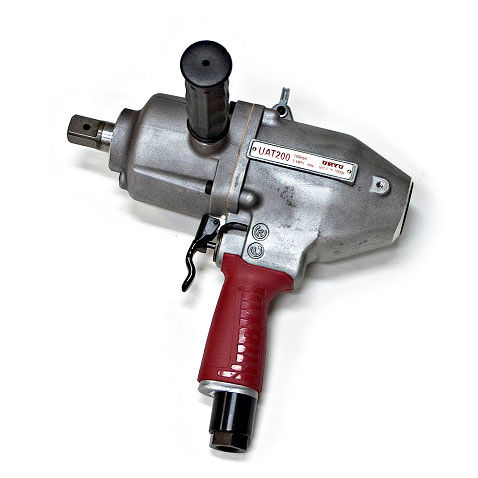

Pneumatic Pulse Tool, 280 Nm, 3/4'' square
AIMCO and Uryu's latest generation of pulse tools incorporates significant improvements to provide the lightest pulse tool on the market today. Rollers in the driving blade and an accumulator chamber keep fluid temperature lower for longer life and better repeatability.
$4,732.88List $6,010.00
Save $1,277.12Total$4,732.88Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
UAT-200L | Pneumatic Pulse Tool, 280 Nm, 3/4'' squareUAT-200L
Total$4,732.88
1
Details
Product information
| Technical Specifications | |
|---|---|
| SKU | UAT-200L |
| Model | UAT-200L |
| Air Hose Size - in | 1/2 |
| Air Inlet Thread N.P.T. - in | 3/8 |
| Air Usage - CFM | 24.6 |
| Free Speed - rpm | 2,400 |
| Overall Length - in | 11 |
| Overall Length - mm | 279 |
| Sound Level - dB(A) | 85 |
| Square Drive - in | 3/4 |
| Torque Range - ft-lbs | 125.8 - 207.2 |
| Torque Range - Nm | 170 - 280 |
| Weight - kg | 5.8 |
| Weight - lb | 12.8 |
| MPN | UAT-200L |
| Features & Benefits | |
| Features patented Auto Relief Technology that provides additional torque control during the pulse events. | |
| Eliminates initial spike of torque during a cycle. Highly effective on hard joint applications | |
| Up to 30% improvement in fastening accuracy and time. | |
| Eliminates initial spike of torque during a cycle. Highly effective on hard joint applications,Up to 30% improvement in fastening accuracy and time. | |
