URYUUGW-6N

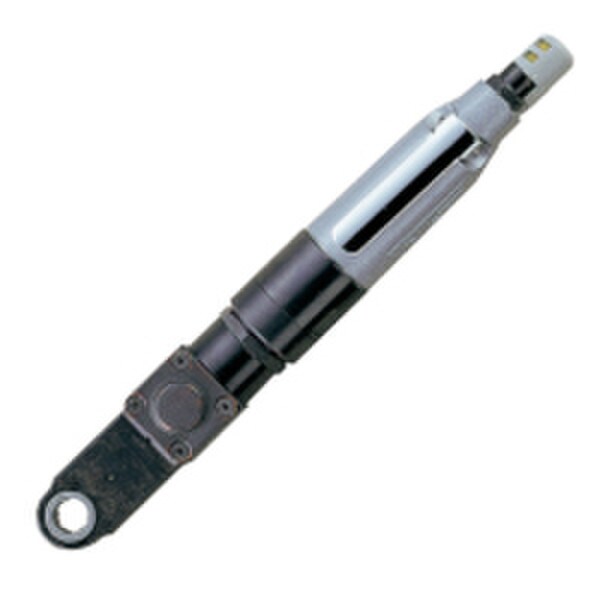

Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket size
Designed for tubenut fastening, the UOW can transfer torque through a variety of options.
$2,574.34List $3,269.00
Save $694.66Total$2,574.34Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
UGW-6N | Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket sizeUGW-6N
Total$2,574.34
1
Details
Product information
Overview
URYU Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket size
Inline Air Geared Nutrunner, 18 Nm, 3/8 - 7/16 in. socket size, model# UGW-6N by URYU; available to order from Flexible Assembly Systems. Do you see this Air Geared Nutrunner available elsewhere for a lower price? Contact customer service on price matching!
UGW-6N by URYU
Designed for tubenut fastening, the UOW Series can transfer torque through a variety of options.
Features:
- Stall Type — Depending on the application requirements, the standard
- UOW Series will stall when torque resistance matches power output
- Mechanical Shut-off Type — For greater torque accuracy and less reaction impulse to the operator, the UOW-T Series incorporates a mechanical clutch to shut off the tool at the preset torque
- Electronically Monitored Type — For critical torque applications requiring monitoring or controlling of the fastening torque, the UOW-M
- Series utilizes a transducer to signal the clutch shut-off
- UOW series incorporates a one-hand, two-step throttle, which automatically reverses the socket to a preset open position
| Technical Specifications | |
|---|---|
| SKU | UGW-6N |
| Model | UGW-6N |
| Air Hose Size - in | 3/8 |
| Air Inlet Thread N.P.T. - in | 1/4 |
| Air Usage - CFM | 22 |
| Free Speed - rpm | 530 |
| Max Hex Socket Size - in | 3/8, 7/16 |
| Max Hex Socket Size - mm | 9, 10, 11, 12 (10 mm included with wrench if no other size is specified) |
| Max. Torque - ft-lb | 13.3 |
| Max. Torque - Nm | 18 |
| Noise Level - dB(A) | 76 |
| Overall Length - in | 12.2 |
| Overall Length - mm | 310 |
| Weight - kg | 1.4 |
| Weight - lb | 3.1 |
| MPN | UGW-6N |
| Features & Benefits | |
| UOW series will stall when torque resistance matches power output | |
| Incorporates a one-hand, two-step throttle, which automatically reverses the socket to a preset open position | |
| Mechanical Shut-Off for greater torque accuracy and less reaction impulse to the operator | |
| Utilizes a transducer to signal the cluth shut-off | |
| Incorporates a one-hand | |
| two-step throttle | |
| which automatically reverses the socket to a preset open position | |
