Inline Ratchet Wrench, 57 Nm, 9/16 - 3/4 in. socket size
Designed to set flush over the fastener head, the URW Series is ideal for narrow fastening spaces. Motor torque is transferred from a gear driven, dual lobed cam that pushes a spring loaded push rod, rotating the socket one tooth at a time.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
3 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview

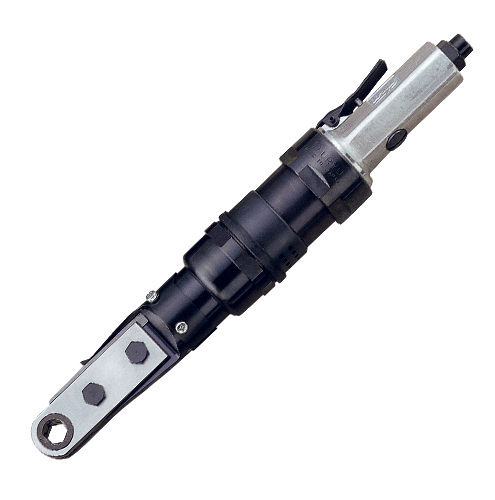

URYU Inline Ratchet Wrench, 57 Nm, 9/16 - 3/4 in. socket size
Inline Ratchet Wrench, 57 Nm, 9/16 - 3/4 in. socket size, model# URW-10N by URYU; available to order from Flexible Assembly Systems. Do you see this Ratchet Wrench available elsewhere for a lower price? Contact customer service on price matching!
URW-10N by URYU
Designed to set flush over the fastener head, the URW Series is ideal for narrow fastening spaces. Motor torque is transferred from a gear driven, dual lobed cam that pushes a spring loaded push rod, rotating the socket one tooth at a time. A wide variety of socket sizes, head thicknesses, and tool lengths allow the URW Series access to many difficult applications.
| Technical Specifications | |
|---|---|
| SKU | URW-10N |
| Model | URW-10N |
| Air Hose Size - in | 3/8 |
| Air Inlet Thread N.P.T. - in | 1/4 |
| Air Usage - CFM | 25 |
| Free Speed - rpm | 150 |
| Max Hex Socket Size - in | 9/16, 5/8, 11/16, 3/4 |
| Max Hex Socket Size - mm | 10, 12, 13, 14, 15, 16, 17, 18, 19 (17 mm is included with wrench if no other size is specified) |
| Max. Torque - ft-lbs | 42.2 |
| Max. Torque - Nm | 57 |
| Overall Length - in | 15.5 |
| Overall Length - mm | 394 |
| Weight - kg | 2.6 |
| Weight - lb | 5.8 |
| MPN | URW-10N |
| Features & Benefits | |
| Ideal for Many Difficult Applications Including Narrow Fastening Spaces | |
| Wide variety of socket sizes, head thickness and tool lengths allow access to many difficult applications | |
| Reverse rotation obtained by simply turning tool over | |
| Recommended Air Pressure: 85 psi | |
| Wide variety of socket sizes | |
| head thickness and tool lengths allow access to many difficult applications | |
