Inline Stall Air Tubenut Nutrunner, 32 Nm, 5/8 - 1-3/16 in. socket size
Designed for tubenut fastening, the UOW Series can transfer torque through a variety of options
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
Recommended Accessories
7 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview

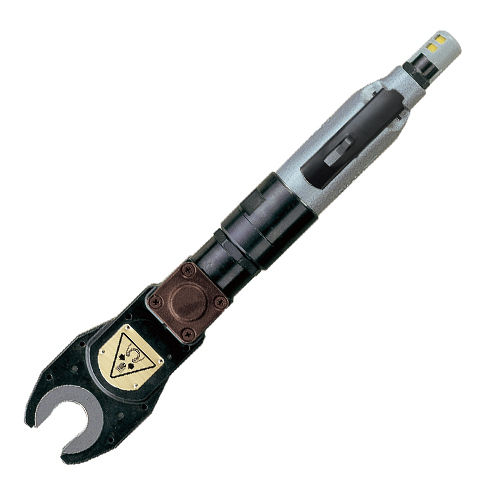

URYU Inline Stall Air Tubenut Nutrunner, 32 Nm, 5/8 - 1-3/16 in. socket size
Inline Stall Air Tubenut Nutrunner, 32 Nm, 5/8 - 1-3/16 in. socket size, model# UOW-11-30 by URYU; available to order from Flexible Assembly Systems. Do you see this Air Tubenut Nutrunner available elsewhere for a lower price? Contact customer service on price matching!
UOW-11-30 by URYU
Designed for tubenut fastening, the UOW Series can transfer torque through a variety of options.
Features:
- Stall Type — Depending on the application requirements, the standard
- UOW Series will stall when torque resistance matches power output
- Mechanical Shut-off Type — For greater torque accuracy and less reaction impulse to the operator, the UOW-T Series incorporates a mechanical clutch to shut off the tool at the preset torque
- Electronically Monitored Type — For critical torque applications requiring monitoring or controlling of the fastening torque, the UOW-M
- Series utilizes a transducer to signal the clutch shut-off
- UOW series incorporates a one-hand, two-step throttle, which automatically reverses the socket to a preset open position
| Technical Specifications | |
|---|---|
| SKU | UOW-11-30 |
| Model | UOW-11-30 |
| Air Hose Size - in | 3/8 |
| Air Inlet Thread N.P.T. - in | 1/4 |
| Air Usage - CFM | 12.5 |
| Free Speed - rpm | 135 |
| Max Hex Socket Size - in | 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1-1/8, 1-3/16 |
| Max Hex Socket Size - mm | 14, 17, 18, 19, 23, 24, 26, 27, 29, 30, 32 (30 mm is included with wrench if no other size is specified) |
| Max. Torque - ft-lb | 23.7 |
| Max. Torque - Nm | 32 |
| Noise Level - dB(A) | 75 |
| Overall Length - in | 13.6 |
| Overall Length - mm | 347 |
| Weight - kg | 2.5 |
| Weight - lb | 5.5 |
| MPN | UOW-11-30 |
| Features & Benefits | |
| Stall type open-end wrench | |
| All-gear drive mechanism ensure long life and silent operation | |
| Provides smooth and easy operation and automatic release of socket back to preset open position with unique one-hand, two-step throttle lever | |
| Recommended Air Pressure: 85 psi | |
| Provides smooth and easy operation and automatic release of socket back to preset open position with unique one-hand | |
| two-step throttle lever | |
