Pistol Grip Auto Shut Off Pulse Tool, 30 - 55 Nm, 3/8 in. drive
AIMCO and Uryu's latest generation of pulse tools incorporates significant improvements to provide the lightest pulse tool on the market today. Rollers in the driving blade and an accumulator chamber keep fluid temperature lower for longer life and better repeatability.
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Details
Product information
Overview

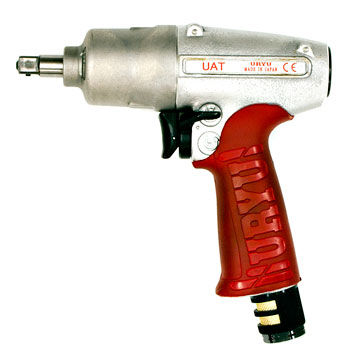

URYU Pistol Grip Auto Shut Off Pulse Tool, 30 - 55 Nm, 3/8 in. drive
Pistol Grip Auto Shut Off Pulse Tool, 30 - 55 Nm, 3/8 in. drive, model# UAT-70 by URYU; available to order from Flexible Assembly Systems. Do you see this Pulse Tool available elsewhere for a lower price? Contact customer service on price matching!
UAT-70 by URYU
UAT features patented Auto Relief Technology providing additional control to the application of torque during the pulsing events.
Features:
- Auto Relief eliminates initial spike of torque during a cycle. Highly effective on hard joint applications
- Auto Relief ramps up pressure within the pulse unit resulting in more pulses in less time providing a more efficient and even torque event
| Technical Specifications | |
|---|---|
| SKU | UAT-70 |
| Model | UAT-70 |
| Air Hose Size - in | 3/8 |
| Air Inlet Thread N.P.T. - in | 1/4 |
| Air Usage - CFM | 14 |
| Free Speed - rpm | 6000 |
| Overall Length - in | 7.1 |
| Overall Length - mm | 180 |
| Sound Level - dB(A) | 80 |
| Square Drive - in | 3/8 |
| Torque Range - ft-lbs | 22.2-40.7 |
| Torque Range - Nm | 30-55 |
| Weight - kg | 1.1 |
| Weight - lb | 2.3 |
| MPN | UAT-70 |
| Features & Benefits | |
| UAT features patented Auto Relief Technology providing additional control to the application of torque during pulsing events | |
| Auto Relief eliminates initial spike of torque during a cycle | |
| Highly effective on hard joint applications | |
