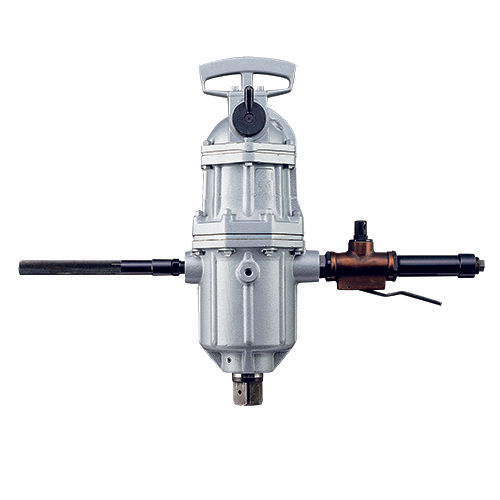

URYUUW-75S
T-Handle Air Impact Wrench, 7800 - 17000 nm, 1-1/2 in. square drive
UW-75S | T-Handle Air Impact Wrench, 7800 - 17000 nm, 1-1/2 in. square drive
$13,874.18List $17,618.00
Save $3,743.82Total$13,874.18Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
UW-75S | T-Handle Air Impact Wrench, 7800 - 17000 nm, 1-1/2 in. square driveUW-75S
Total$13,874.18
1
Details
Product information
Overview
URYU T-Handle Air Impact Wrench, 7800 - 17000 nm, 1-1/2 in. square drive
T-Handle Air Impact Wrench, 7800 - 17000 nm, 1-1/2 in. square drive, model# UW-75S by URYU; available to order from Flexible Assembly Systems. Do you see this Air Impact Wrench available elsewhere for a lower price? Contact customer service on price matching!
UW-75S by URYU
UW-Series impact tools offer fast, economical operation in high-volume heavy assembly applications.
| Technical Specifications | |
|---|---|
| SKU | UW-75S |
| Model | UW-75S |
| Air Hose Size - in | 3/4 |
| Air Inlet Thread N.P.T. - in | 1 |
| Air Usage - CFM | 114 |
| Capacity (Nominal Bolt Size) in | 3 |
| Capacity (Nominal Bolt Size) mm | 76 |
| Center To Outside - in | 3.6 |
| Center To Outside - mm | 91.0 |
| Free Speed - rpm | 1,400 |
| Noise Level - dB(A) | 112 |
| Overall Length - in | 26.3 |
| Overall Length - mm | 668 |
| Square Drive - in | 1-1/2 |
| Square Drive - mm | 38.1 |
| Torque Range - ft-lbs | 5,753: 12,539 |
| Torque Range - Nm | 7,800 - 17,000 |
| Weight Less Socket - kg | 56.0 |
| Weight Less Socket - lb | 123.0 |
| MPN | UW-75S |
