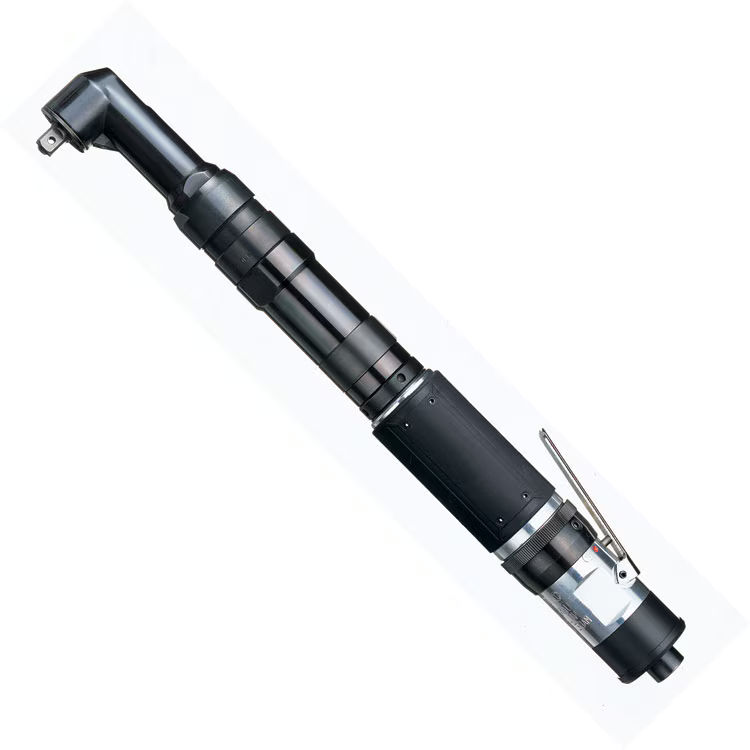

UAN Series
Designed for fastening in tight quarters or applications not served well by an in-line or pistol grip nutrunner or pulse tool. Low reaction force characteristics on hard joints make it comfortable for the operator to use
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
7 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Recommended Accessories
1 itemAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|
| $150.00 | 1 | View details |
Details
Product information
Overview
- High power to weight ratio for higher productivity
- Wide variety of speeds and torque ranges to match your application
- Easily adjusts to forward or reverse rotation with smooth rolling selector
- Torque adjusts from outside of tool with a Phillips screwdriver
- Delivers minimal torque reaction with instant shut-off
- Light weight
- Low noise levels with exhaust located at rear of tool
- Fewer parts and higher reliability than previous models
- Easily lubricate the angle head bevel gears without disassembling the tool with grease-cock feature
- ISO 5393 testing reveals a 6-sigma combined capability of less than 20% on all models
- Mechanical clutch offers precise torque control regardless of joint rate *Provides greater precision, especially on hard joints, with low inertia design
- High power allows for torque repeatability on soft joints and prevailing torque applications
- A Poka-Yoke option is available for bolt counting or error-proofing (Use in conjunction with UTM-1100 fastener counter)
- Recommended Air Pressure: 85 psi
| Features & Benefits | |
|---|---|
| Torque Range: 4.3 to 44.2 Ft Lb | |
| Styles Available: Angle | |
| From $1,882 up to $2,264 |
