AIMCOUS-LT40BL-21

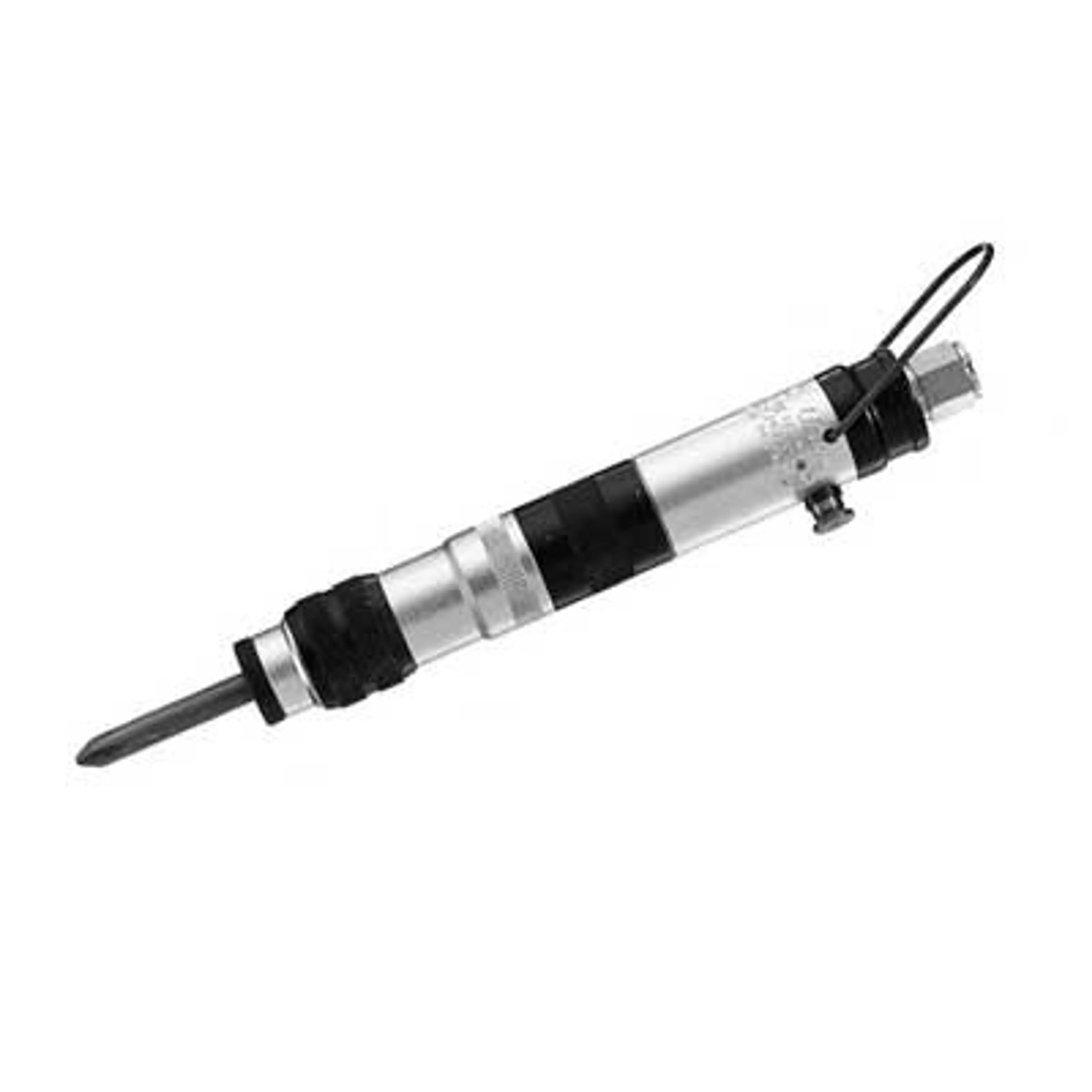

Inline Air Screwdriver

Precise Reaction to a Preset Torque Makes the LT Series the Choice for Critical Torque Applications Where Utmost Accurate Torque Control is Required, such as Plastics, Electronics or Light Assembly

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Warning:California Proposition 65Trade Regulations Advisory Notice

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents2 files

Recommended Accessories

2 items

Add-on accessories that can be purchased alongside this product.

ProductPriceQty
BLD1BLD1 | Light-Duty Balancer 0.9 - 2.2 lbs$76.08$76.081View details
NIST CERTNIST Certificate$150.00$150.001View details

Details

Product information

Overview

AIMCO URYU US-LT40BL-21

Inline Air Screwdriver

  • Provides a precise shut-off to the preset torque. The clutch mechanism shuts off the air supply when the desired torque level is met, preventing over-torque. This also instantly signals the end of the cycle to the operator
  • The torque reaction felt when proper torque is reached is minimized by the innovative clutch design. Also, this series of tools operates far from the upper range of the power curve, maintaining maximum speed during rundown, even at higher torque
  • Continuous drive clutch provides fast operation for hard and soft joints
  • Designed to reduce overall weight and length by as much as 30% over conventional tools
  • Wide variety of speed and torque
  • Oil free rotor blades provide a clean, slick-free environment. This is especially important for applications where air quality is important
  • Easy to operate locking reverse button makes disassembly simple
  • Each model is equipped with its standard clutch spring
  • Additional clutch spring specifications available
  • Recommended air pressure: 85 psi
    • Technical Specifications
    Min Torque - In Lbs8.7
    Max Torque - In Lbs14.8
    Min Torque - Nm1.00
    Max Torque - Nm1.70
    Start TypeLever Start
    Clutch TypeAuto Shut Off
    StyleInline;"Drive Size=1/4'' hex
    Free Speed - rpm2100
    Length - Inches8.2
    Stock CodeC
    MPNUS-LT40BL-21
    Features & Benefits
    Precise repeatability improves quality
    Quick shut off for minimum torque reaction
    Minimal wear on internal parts
    Ideal for industrial torque control applications
