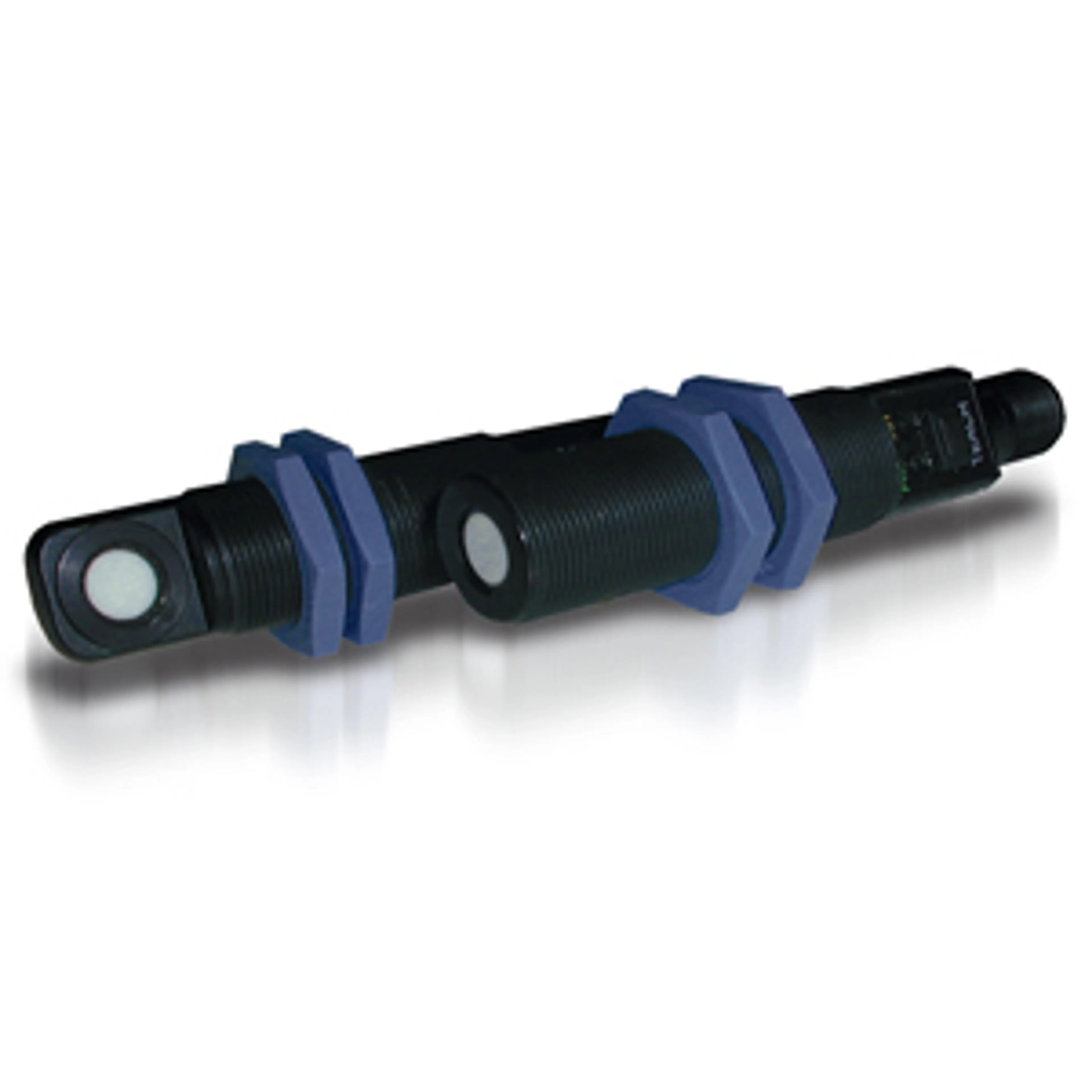

Datalogic US18-PR-5-N03-VH / 95B040050
Ultrasonic M18 Radiall - 0-10V Analogue - M12
Ultrasonic M18 sensors of the US18 series are available in two different barrel housings: tubular and right angle mounting. M18 Tubular series offers models either with discrete bipolar output (1 NPN and 1 PNP) or with 4-20 mA or 0-10 V analog output, each with axial or radial acoustic emission. M18 Right angle series provides discrete outputs (PNP or NPN).
US18 series guarantees a small blind zone providing a wide operating range from 30 to 300 mm for the tubular models and from 50 to 500 mm for the right angle models. The sensors are easily configured through the Teach-in function, while the operating status is visibly signalled by 2 bi-coloured LEDs.
Features:
- Clear object detection, inspection on transparent or highly reflective film and liquid level measurement
- Standard M18 tubular and M18 right angle mounting
- 30-300 mm or 50-500 mm Background and Foreground Suppression
- Teach-in push button or remote input for distance range setting
- Auto-Window function for automatic distance range setting
- Standard M12 4-pole connector and M12 5-pole connector
- PNP or NPN outputs for object detection and 0-10 V or 4-20 mA analog outputs for distance measure
- IP67, NEMA 6P-rated
Applications:
- Packaging machines
- Beverage& Bottling
- Automotive assembling line
| Technical Specifications | |
|---|---|
| Product Code | 95B040050 |
| Model Name | US18-PR-5-N03-VH |
| Sensing Range | 200 mm to 8000 mm |
| Nominal Sensing Distance | 300 mm |
| Analogue Output | 0-10 V |
| Digital Output | Bipolar PNP/NPN, NO/NC configurable |
| Supply Voltage | 10-30 VDC |
| Housing | M18 tubular, lateral emission |
| Dimensions | Ø18 x 95 mm |
| Connection | M12 Connector |
| Housing Material | Plastic - PE |
| Minimum Resolution | 1 mm |
| Repeatability | 1 mm |
| Hysteresis | 5 mm |
| Response Time | 100 ms to 1600 ms |
| Configuration | Remote Teach-in and DIP Switch |
| Minimum Window Size | 20 mm |
| Analogue Output Linearity | +/- 0.2% of span from 200 to 8000 mm; +/- 0.1% of span from 500 to 8000 mm |
| Operating Temperature | -20° to +70°C |
| Emission Frequency | 300kHz |
| Functions | Object detection/distance measurement |
| Sensitivity Adjustment | Teach-in |
| MPN | 95B040050 |
