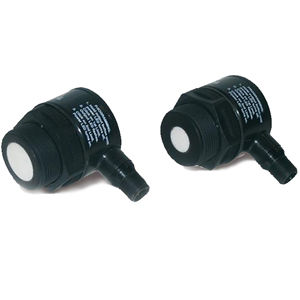

Datalogic US30-PR-5-N13-VH / 95B040070
Mini Ultrasonic M30 Radiall 1000Mm?? - 0-10V Analogue - M12
M30x1 ultrasonic sensors of the US30 series are available in models with operating distances reaching 200 cm either with bipolar digital output (1 NPN and 1 PNP) or with 4-20 mA or 0-10 V analogue output. The sensors can be easily configured using the Teach-in function, while the operating status is visibly signalled by 3 LEDs. The temperature compensation function corrects the sound speed changes due to temperature variations, so the sensor precision remains unchanged in all situations
Applications:
- Food machines
- Packaging and packing machines, material handling
- Automatic warehouses
- Level control
- Metal, paper and wood working machines
- Automotive
| Technical Specifications | |
|---|---|
| Nominal Sensing Distance | 1 m |
| Operating Range | 200 mm to 8000 mm |
| Sensitivity Adjustment | Teach-in |
| Application Description | M30 tubular - lateral emission |
| Functions | Object detection/distance measurement |
| Output Type | 0-10 V |
| Digital Output Option | Bipolar PNP/NPN NO/NC configurable (on other models) |
| Response Time | 100 ms to 1600 ms |
| Operating Voltage | 10-30 VDC |
| Emission Frequency | 224kHz |
| Dimensions | Ø30x45 mm |
| Connection | M12 Connector |
| Housing Material | Plastic - PBT |
| Minimum Resolution | 1 mm |
| Analog Output Linearity | +/- 0.2% of span from 200 to 8000 mm; +/- 0.1% of span from 500 to 8000 mm (1 mm minimum) |
| Minimum Window Size | 20 mm |
| Repeatability | 1 mm |
| Hysteresis | 5 mm |
| Configuration | DIP SWITCH selectable, Remote TEACH-Mode |
| Operating Temperature | -20° to +70°C |
| Temperature Compensation | Yes |
| MPN | 95B040070 |
