Datasensing95B040130

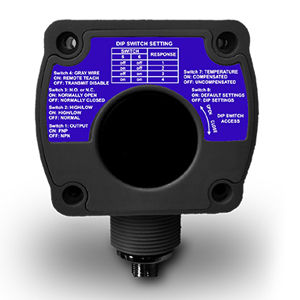

Ultrasonic radial 8000mm - analogue output - M12
Datalogic Automation US50 is the new series of ultrasonic sensors with M50 plastic tubular housing. All models are provided with a radial emitting head and offer the following versions: Digital bipolar PNP/NPN NO/NC configurable output Analogue 0-10V / 4-20mA configurable output.
$677.92List $1,155.54
Save $477.62Total$677.92Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
95B040130 | Ultrasonic radial 8000mm - analogue output - M1295B040130
Total$677.92
1
Details
Product information
Overview
Datalogic US50-PR-5-N43-IVH / 95B040130
Ultrasonic Radial 8000Mm - Analogue Output - M12
Datalogic Automation US50 is the new series of ultrasonic sensors with M50 plastic tubular housing. All models are provided with a radial emitting head and offer the following versions:
- Digital bipolar PNP/NPN NO/NC configurable output
- Analogue 0-10V / 4-20mA configurable output.
Operating distance from 200mm to 8m makes US50 ideal solution for all industrial applications where the target must be detected or measured really far away from the sensor.
Features:
- Features ultrasonic dead-zone of only 2.5% of the total range: 75% less than comparable products
- Available in analog or discrete dc models: maximum flexibility
- Features a completely sealed, shock-resistant housing : ideal for monitoring levels of liquids as well as solids
- Narrow sensing beam: capability to detect targets at long range within confined areas?ùsuch as a storage tank?ùwithout interference from the tank walls
- Compensates for temperature: greatest sensing accuracy
- Push-button and remote TEACH-mode programming: simple setup.
Applications:
- Ceramics
- Beverage & Bottling
- Transportation lines
- Packaging lines
| Technical Specifications | |
|---|---|
| Product Name | US50-PR-5-N43-IVH |
| Description | Ultrasonic radial 8000 mm - analogue output - M12 Ultrasonic sensor |
| Nominal Sensing Distance | 8 m |
| Operating Range | 200 mm to 8000 mm |
| Output Type | Configurable Digital Bipolar PNP/NPN (NO/NC) and Configurable Analog 0-10V / 4-20mA |
| Operating Voltage | 10-30 VDC |
| Response Time | 100 ms to 1600 ms |
| Minimum Resolution | 1 mm |
| Analog Output Linearity | +/- 0.2% of span (200-8000mm); +/- 0.1% of span (500-8000mm) |
| Minimum Window Size | 20 mm |
| Repeatability | 1 mm |
| Hysteresis | 5 mm |
| Configuration Method | DIP Switch selectable, Remote Teach-in |
| Functions | Object detection/distance measurement |
| Emission Frequency | 75kHz |
| Application Description | M50 tubular - lateral emission |
| Dimensions | Ø50x67 mm |
| Connection | M12 Connector |
| Housing Material | Plastic - ABS |
| Operating Temperature | -20° to +70°C |
| Temperature Compensation | Yes |
| MPN | 95B040130 |
