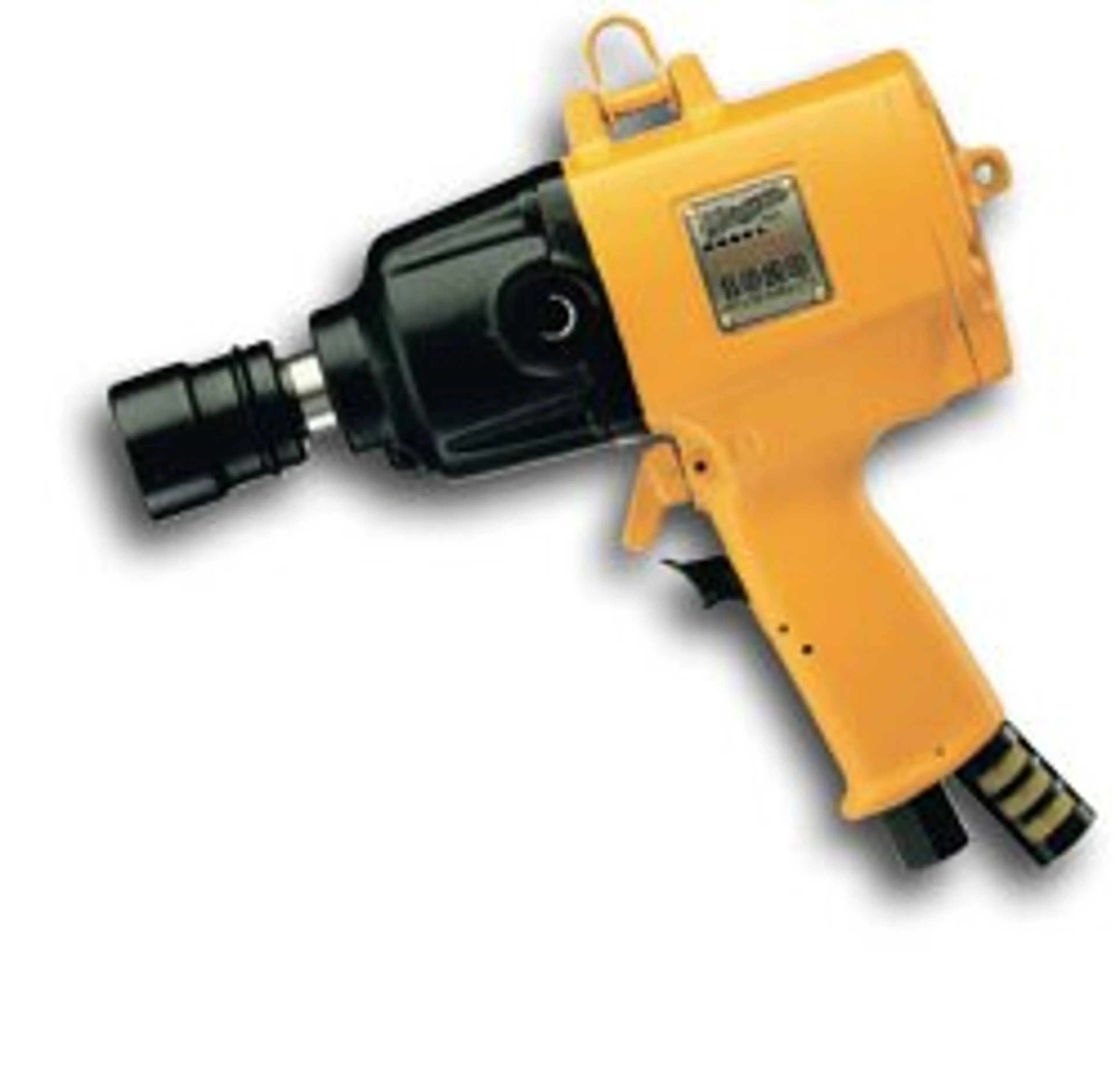

22 - 33 Ft Lb, Auto Shut-off Pulse Tool

AIMCO URYU UX-T800

22 - 33 Ft Lb, Auto Shut-Off Pulse Tool

Specifications:
Air Inlet Thread: 1/4 in
Free Speed: 8300 rpm
Noise Level: 79 dB(A)
Overall Length: 7.7 in
Torque Range: 22 - 33 ft-lb
Torque Range: 30 - 45 Nm
Weight: 1.8
Square Drive: 3/8 in

Features:

• Achieve high torque with incredible accuracy & repeatability!
• Ideal for applications requiring no operator influence in the final fastening rundown for precise torque repeatability
• When preset torque is achieved, the hydraulic pressure is sufficient enough to bypass a spring-loaded piston and move the shut-off rod to rear, quickly opening the pilot valve and shutting off the tool
• No air timer involved with shut-off mechanism
• High speed rundown reduces fastening time
• Shut off mechanism instantly signals cycle completion to operator
• One hand operation frees the other for productive use
• Ergonomic benefits for less fatigue and increased productivity
• Quick and easy forward and reverse operation with single-hand reverse lever
• Virtually no reaction impulse during and after fastener rundown
• Fast rundown reduces operator exposure
• Low vibration and sound levels due to absence of metal-to-metal contact
• High power to weight ratio Anti-vibration jacket handle provides comfortable operator handling
• Exhaust silencer with combined one-piece air inlet bushing
• Quick and easy forward and reverse operation with single-hand reverse lever

Click Here For Exploded View
