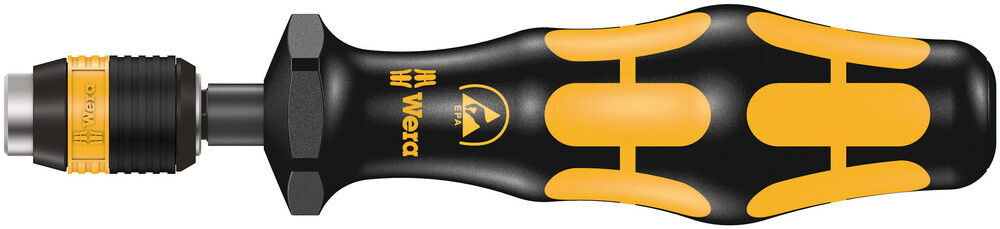

wera 074822 | 1/4'' 0.3 - 1 Nm ESD Pre-Set Adjustable Torque Screwdriver with Quick Release Chuck image 1
Click the image to zoom
Wera
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
wera 074822

1/4'' 0.3 - 1 Nm ESD Pre-Set Adjustable Torque Screwdriver with Quick Release Chuck

Ideal for all applications where a constant, identical torque is required and where a high degree of repeat accuracy is needed.

$96.70List $120.88
Save $24.18
Total$96.70Taxes & shipping at checkout
Quantity
1
  • Free UPS Ground over $999.99
  • Factory-authorised service
Documents1 file

Recommended Accessories

1 item

Add-on accessories that can be purchased alongside this product.

ProductPriceQty
Pre-setPre-set$20.00$20.001View details

Details

Product information

Overview

Wera 1/4 in. 0.3 - 1 Nm ESD Pre-Set Adjustable Torque Screwdriver with Quick Release Chuck

05074822001

1/4 in. 0.3 - 1 Nm ESD Pre-Set Adjustable Torque Screwdriver with Quick Release Chuck by Wera, available to order from Flexible Assembly Systems. Do you see this ESD Pre-Set Adjustable Torque Screwdriver available for a lower price? Contact Customer Service about Price Matching!

These tools are ideal for all applications where a constant, identical torque is required and where a high degree of repeat accuracy is needed. The torque value can be adjusted within the measuring range.

These torque screwdrivers are supplied with a fixed pre-set torque value. This is ideal for all applications that require constant, identical torque. They feature a pre-set torque range of 0.3 Nm to 4.0 Nm (adjustable between 0.3 Nm – 8.8 Nm), two different handles, measurement accuracy of ± 6 % and Rapidaptor chuck technology for rapid bit change.

The pre-set torque screwdrivers of the Kraftform 7400 series can be individually pre-set within the specified adjustable range.

Note: Adjusting requires a 5/16 in. Nut Driver and Torque Tester; Due to no range display on the screwdriver.

Technical Specifications
Min Torque - In Lbs2.66
Max Torque - In Lbs8.85
Min Torque - Nm0.3
Max Torque - Nm1
StyleInline;"Drive Size=1/4'' hex
Length - mm133
TypeESD Pre-Set Adjustable Torque Screwdriver
ESD Compliantyes
MPNwera 074822
Features & Benefits
Torque value can be adjusted within the measuring range
Supplied with a fixed pre-set torque value
