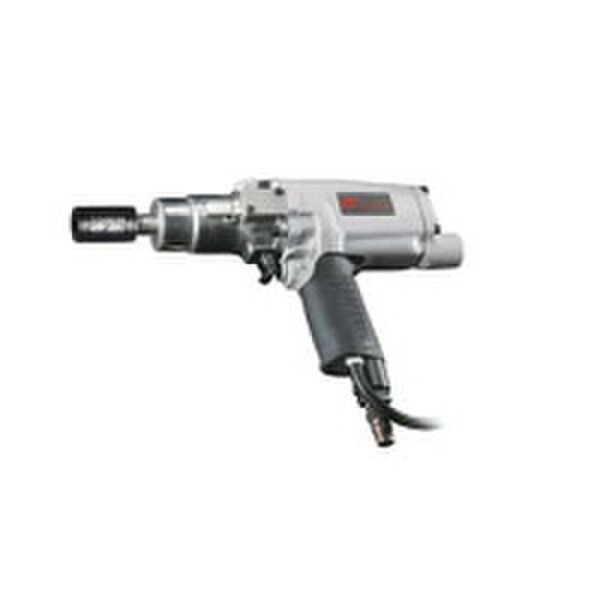

Pistol Grip Transducerized Pulse Tool

Pistol Grip Pulse Tools - reactionless pulse tool with closed loop electronic control

Price on request

Your requestWe price the quantity you set here

Quantity

A specialist replies within one business day.

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

YEX-150S | Pistol Grip Transducerized Pulse ToolYEX-150S

Price on request

Twin blade pulse mechanism for compact size, low weight
Minimal noise, vibration and reaction for operator comfort
Patented cooling system reduces maintenance, extends life
Adjustable pulse mechanism provides greater versatility and accuracy
Integral audible signal helps operator focus attention on the fastening operations
Outboard solenoid valve reduces tool weight, enhances operator convenience
(1) Year Manufacturers Warranty

Strain gauge is located on tool anvil close to the socket for a more accurate measurement of torque
Non-contacting pick-up reduces signal noise, improving torque repeatability
Programming and calibration is fast and easy

Technical Specifications
Stat 1	9000 rpm
Stat 2	4.0 - 13.0 Ft Lb
Drive size	3/8'' square
Manufacturer	Ingersoll Rand
Min Torque (Ft Lb)	4.0
Free Speed (RPM)	9000
SKU	YEX-150S
Stock Code	3
Style	Pistol Grip
Max Torque (In Lb)	159.3
Max Torque (Ft Lb)	13
Min Torque (Nm)	5.4
Max Torque (Nm)	18
UPC	00663023009025
Max Free Speed (rpm)	9000
Weight (lbs)	3.56
Series	YEX
Drive Type	3/8 in. square
MPN	YEX-150S
Features & Benefits
Excellent power to weight ratio
Reactionless, high-speed operation
Accurate, adjustable closed loop torque control
Low noise and vibration
Reactionless
high-speed operation
Accurate
adjustable closed loop torque control
