CTA-Series
Bottle cap torque tester provide a simple, accurate, and economical manual bottle cap torque testing solution.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
3 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
| Product | Model | Stat 2 | Price | Qty | |
|---|---|---|---|---|---|
 MTT01-100MTT01-100 | Cap torque tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm$1,577.00 | MTT01-100 | 10.0 - 100.0 In Lb | $1,577.00 | 1 | View details |
| MTT01-12MTT01-12 | Cap torque tester, 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm$1,577.00 | MTT01-12 | 1.2 - 12.0 In Lb | $1,577.00 | 1 | View details |
| MTT01-50MTT01-50 | Cap torque tester, 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm$1,577.00 | MTT01-50 | 5.0 - 50.0 In Lb | $1,577.00 | 1 | View details |
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Price | Qty | |
|---|---|---|---|

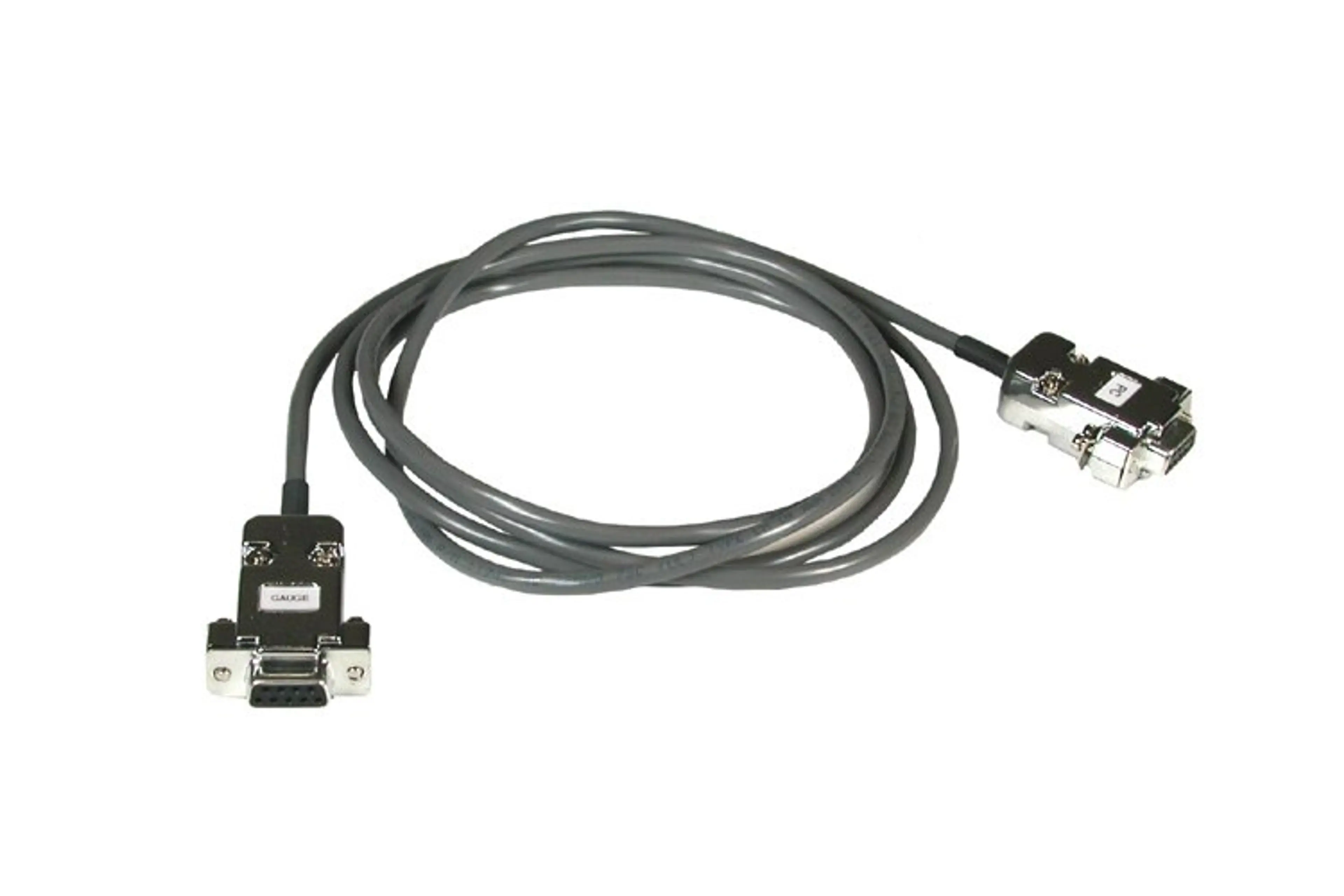

 09-1048A09-1048A | Cable, serial, legacy gauge to PC DB-9$91.20 | $91.20 | 1 | View details |
 15-100415-1004 | MESUR™ gauge software$638.40 | $638.40 | 1 | View details |

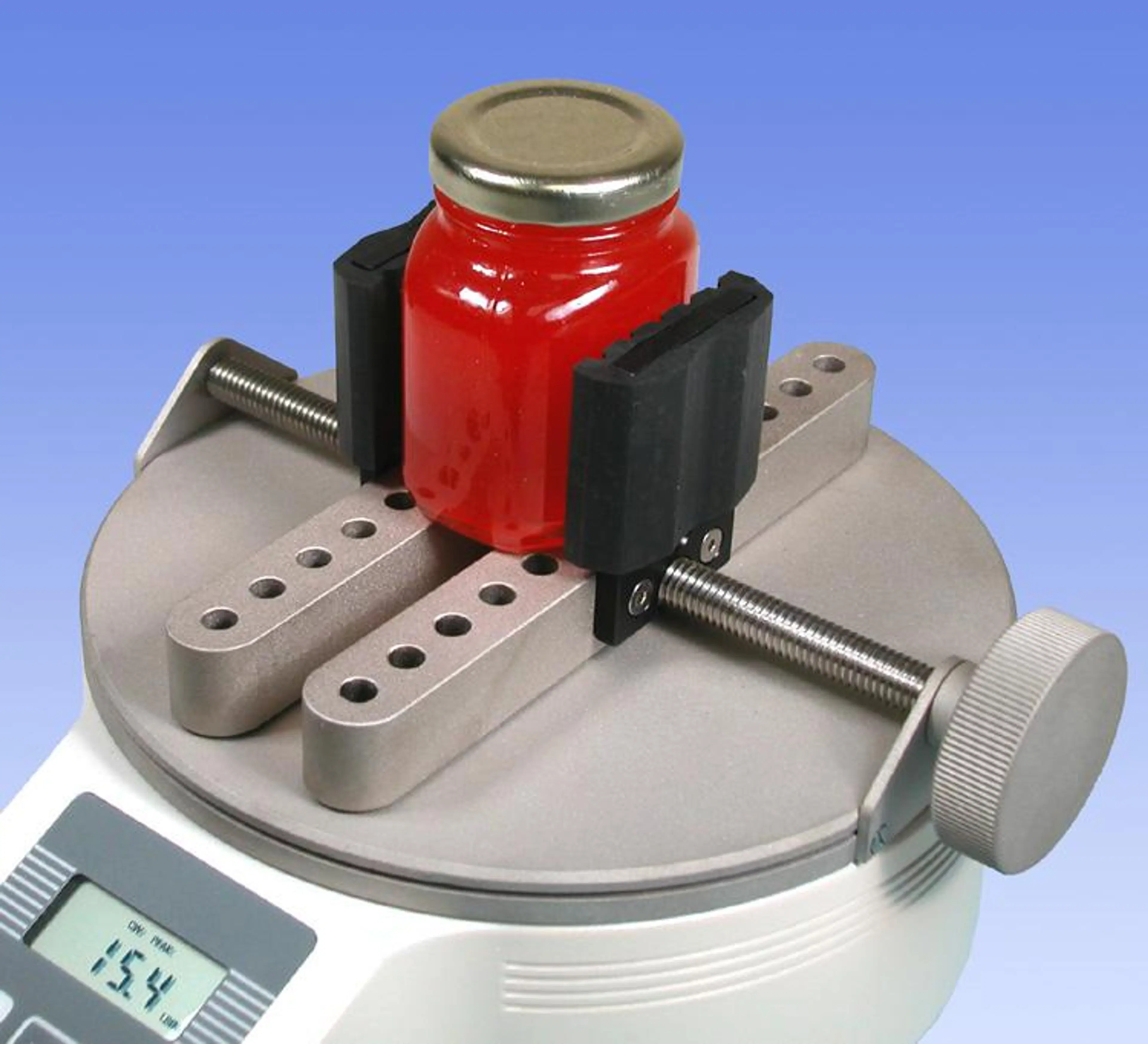

 CT001CT001 | Sample gripping jaws for TT01 / R53, pair$80.75 | $80.75 | 1 | View details |

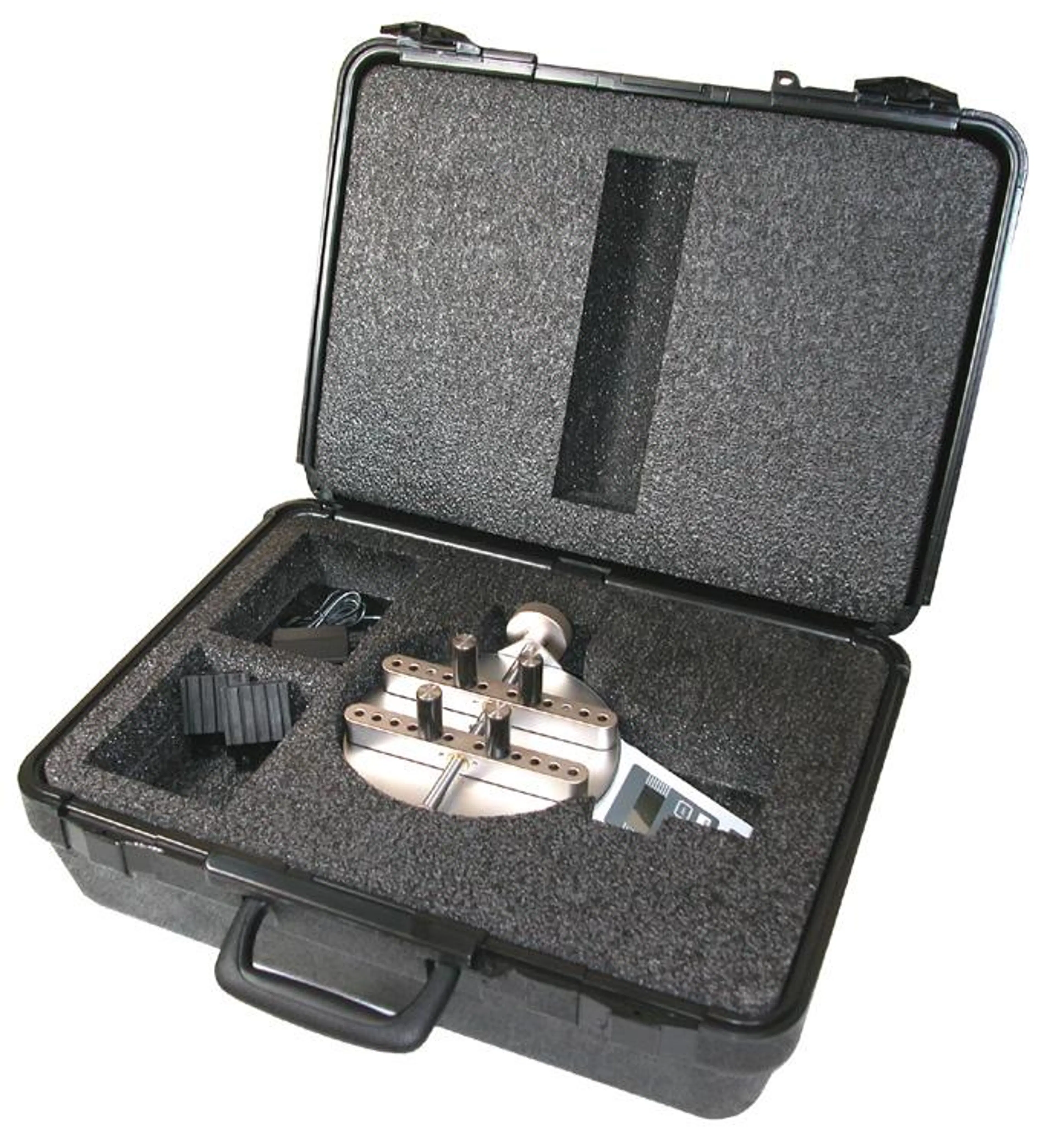

 CT002CT002 | Carrying case for TT05/TT01$237.50 | $237.50 | 1 | View details |
 RSU100RSU100 | Communication adapter, RS-232 to USB$128.25 | $128.25 | 1 | View details |
Details
Product information
Overview

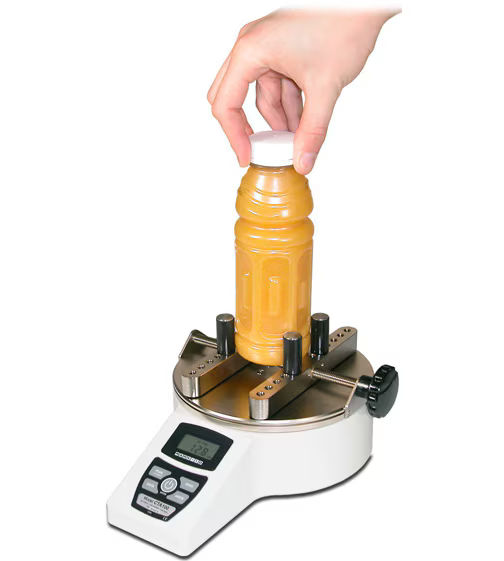

Series CTA Bottle Cap Torque Testers present a simple, accurate, and economical solution for manual cap torque testing. These cap torque testers are ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others. The cap torque tester captures peak readings for application and removal torques. Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Standard adjustable posts effectively grip a broad range of container shapes and sizes. Optional flat jaws and adjustable jaws are available for unique samples. Innovative mechanical overload protection provides peace of mind. The CTA cap torque tester features an aluminum housing, rugged construction and close attention to engineering.
-
Measures in real time or peak torque modes
- Captures peak readings for application and removal torques
- Data output via RS-232 and Mitutoyo
- Selectable units of measurement
- Movable threaded sample gripping posts
- Accepts samples up to 7.5" (189.4 mm) dia.
- 3 torque capacities available
- Operates on a 9V battery or AC adapter
- Accuracy: ±0.5% of full scale ±1 digit
- Safe overload: 150% of capacity
- Weight: 6.5 lbs (2.9 kg)
- CE mark
- Includes 3 YEAR WARRANTY
| Features & Benefits | |
|---|---|
| Torque Range: 1.2 In Lb to 100 In Lb | |
| Accuracy: +/- 0.5% | |
| From $1,228 up to $1,445 |
