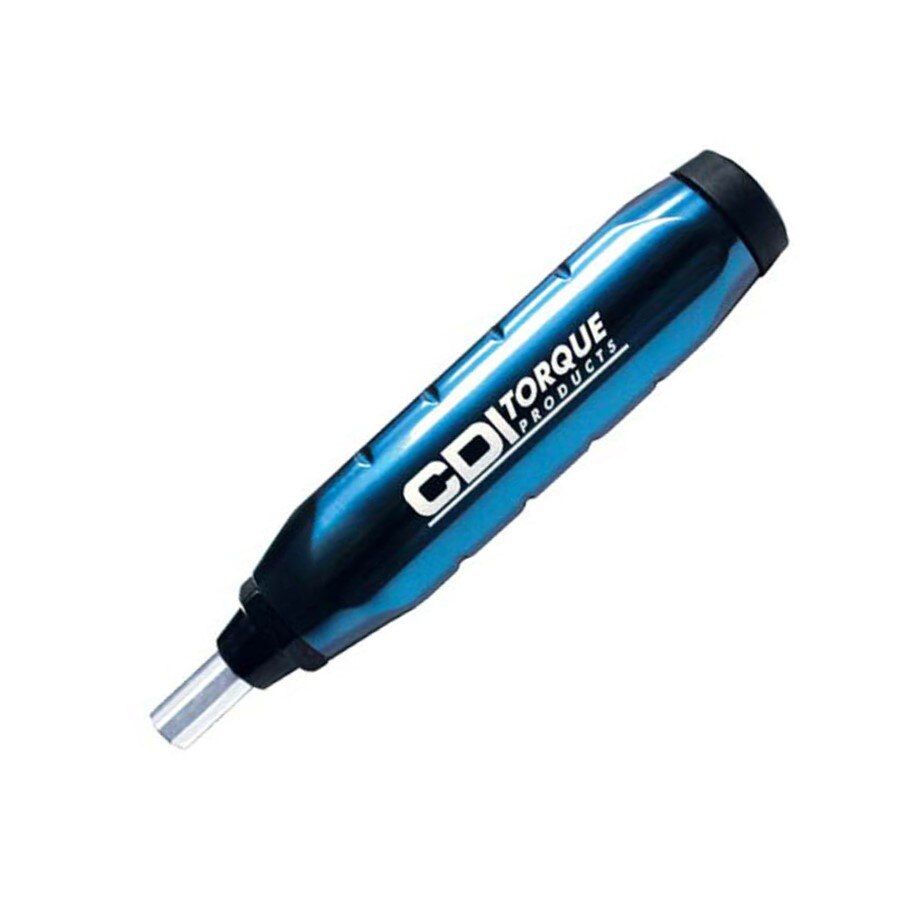

CDI401SP
1/4'' Torque Screwdrr 4-40 In. Lb. User-Set
The tamper resistant design of the Pre-set series is particularly suited for high-volume use in assembly operations. A simple, camover design prevents over-tightening and possible damage to components.
$295.40List $422.00
Save $126.60Total$295.40Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Frequently bought together
What other buyers ordered alongside this one.
401SP | 1/4'' Torque Screwdrr 4-40 In. Lb. User-Setthis item$295.401 item$295.40
401SP | 1/4'' Torque Screwdrr 4-40 In. Lb. User-Set401SP
Total$295.40
1
Recommended Accessories
6 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Max Torque - In Lbs | Max Torque - In Oz | Max Torque - Ft Lbs | Price | Qty | |
|---|---|---|---|---|---|---|
 151SM151SM | 1/4'' Torque Screwdriver, 3-15 in lbs, Micro Adjustable$338.80 | 15 | 240 | 1 | $338.80 | 1 | View details |
 21SP21SP | 1/4'' Torque Screwdriver 6-32 In. Oz.$247.80 | 2 | 32 | 0.18 | $247.80 | 1 | View details |
 401SM401SM | 1/4'' Torque Screwdriver, Micro-Adjustable, 5 - 40 in lbs$357.00 | 40 | 640 | 3 | $357.00 | 1 | View details |
 61SM61SM | 1/4'' Torque Screwdrr 20-100 In. Oz. Micro-Adj.$338.10 | 1.25 | 100 | 0.18 | $338.10 | 1 | View details |
 61SP61SP | 1/4'' Torque Screwdrr 10-100 In. Oz. User-Set$260.40 | 6.25 | 100 | 1 | $260.40 | 1 | View details |
| — | — | — | $150.00 | 1 | View details |
Details
Product information
Overview
CDI 401SP-CDI
1/4" Torque Screwdrr 4-40 In. Lb. User-Set
Features
- The tamper resistant design of the Pre-Set series is particularly suited for high-volume use in assembly operations. A simple, camover design prevents over-tightening and possible damage to components.
- Pre-set Screwdrivers may be ordered factory set at no additional charge or they may be easily set with any quality torque calibration system. The end cap removes for easy access to the 1/8" hex adjustment screw. A hex adjustment key is included with each driver.
- The Pre-Set series includes four models with available torque settings from 6 in. ozs. up to 40 in.lbs. When precision and repeatability are a must, the choice is simple?CDI Torque Screwdrivers.
- 4 Models Available
- Trilobular Comfort Grip
- Universal 1/4" Hex Bit Holder with Strong Rare Earth Magnet
- Cam-over Torque Limiting Clutch
- Rugged, light weight aluminum body
- May be ordered pre-set from factory
- Automatic lock in Counterclockwise direction
- Accuracy +/- 6% Clockwise direction, from 20- 100% of full scale
- Optional Calibration Certificate available
| Technical Specifications | |
|---|---|
| Max Torque - Ft Lbs | 3 |
| Min Torque - In Lbs | 4 |
| Max Torque - In Lbs | 40 |
| Max Torque - In Oz | 640 |
| Min Torque - Nm | 0.45 |
| Max Torque - Nm | 4.5 |
| Style | Inline;"Drive Size=1/4'' hex |
| Length - Inches | 5.6 |
| Length - mm | 142 |
| MPN | 401SP |
| Features & Benefits | |
| Universal 1/4" hex bit holder with strong rare earth magnet | |
| Rugged, Lightweight aluminum body | |
| Automatic lock in counterclockwise direction | |
| Trilobular Comfort Grip | |
| Rugged | |
| Lightweight aluminum body | |
