CDI61SM

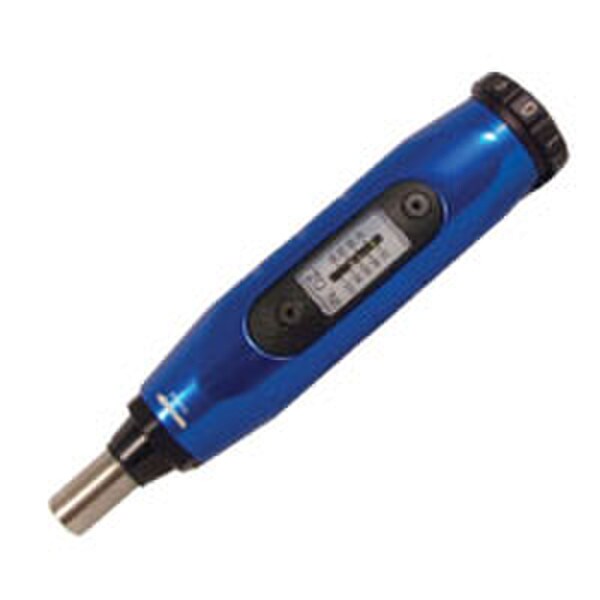

1/4'' Torque Screwdrr 20-100 In. Oz. Micro-Adj.
Adjustable models offer versatility for applications that require more than one torque value.
$338.10List $483.00
Save $144.90Total$338.10Taxes & shipping at checkout
Quantity
1
- Free UPS Ground over $999.99
- Factory-authorised service
Frequently bought together
What other buyers ordered alongside this one.
61SM | 1/4'' Torque Screwdrr 20-100 In. Oz. Micro-Adj.this item$338.101 item$338.10
61SM | 1/4'' Torque Screwdrr 20-100 In. Oz. Micro-Adj.61SM
Total$338.10
1
Recommended Accessories
5 itemsAdd-on accessories that can be purchased alongside this product.
| Product | Max Torque - In Lbs | Max Torque - In Oz | Max Torque - Ft Lbs | Price | Qty | |
|---|---|---|---|---|---|---|

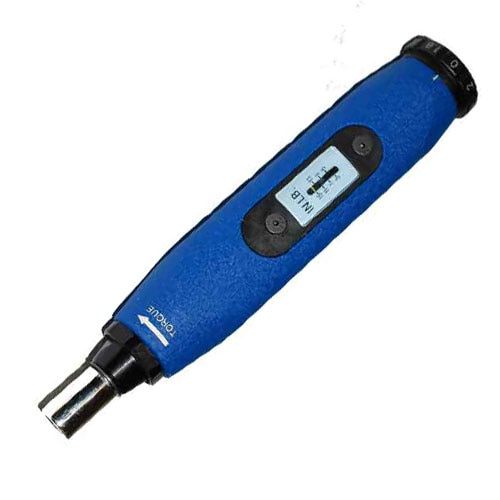

 151SM151SM | 1/4'' Torque Screwdriver, 3-15 in lbs, Micro Adjustable$338.80 | 15 | 240 | 1 | $338.80 | 1 | View details |
 21SP21SP | 1/4'' Torque Screwdriver 6-32 In. Oz.$247.80 | 2 | 32 | 0.18 | $247.80 | 1 | View details |
 401SM401SM | 1/4'' Torque Screwdriver, Micro-Adjustable, 5 - 40 in lbs$357.00 | 40 | 640 | 3 | $357.00 | 1 | View details |
 401SP401SP | 1/4'' Torque Screwdrr 4-40 In. Lb. User-Set$295.40 | 40 | 640 | 3 | $295.40 | 1 | View details |
 61SP61SP | 1/4'' Torque Screwdrr 10-100 In. Oz. User-Set$260.40 | 6.25 | 100 | 1 | $260.40 | 1 | View details |
Details
Product information
Overview
CDI 61SM-CDI
1/4" Torque Screwdrr 20-100 In. Oz. Micro-Adj.
Features:
- Adjustable models offer versatility for applications that require more than one torque value. These torque screwdrivers are particularly suited for the electronics industry and for instrument assembly work. A simple, cam-over design prevents over-tightening and possible damage to components.
- Torque settings are easily and accurately changed with a unique adjusting knob and easyto- read window scale. Adjusting the screwdriver is simple. Just pull out the adjusting knob to unlock, turn to the desired setting, then push the knob in until it clicks! Positive locking knob makes accidental setting changes impossible.
- Automatic lock in counterclockwise direction makes fastener removal a snap. The Micro-Adjustable series includes six models with torque settings ranging from 20 in. ozs. to 40 in. lbs.
- 6 Models Available
- Positive locking pull down adjustment knob
- Trilobular Comfort Grip
- Universal 1/4? Hex Bit Holder with Strong Rare Earth Magnet
- Cam-over Torque Limiting Clutch
- Easy-to-read window scale
- Light weight ease-of-use
- Automatic lock in Counterclockwise direction
- Accuracy +/- 6% Clockwise direction, from 20- 100% of full scale
- Individually serialized with matching certificate of calibration traceable to N.I.S.T.
| Technical Specifications | |
|---|---|
| Max Torque - Ft Lbs | 0.18 |
| Max Torque - In Lbs | 1.25 |
| Min Torque - In Oz | 20 |
| Max Torque - In Oz | 100 |
| Max Torque - Nm | 2 |
| Style | Inline;"Drive Size=1/4'' hex |
| Length - Inches | 5.5 |
| Length - mm | 140 |
| MPN | 61SM |
| Features & Benefits | |
| Easy-to-read window scale | |
| Cam-over torque locking clutch | |
| Trilobular comfort grip | |
| light weight, ease-of-use | |
| light weight | |
| ease-of-use | |
