61H150G4 | Pro Series 61H Straight Grinder

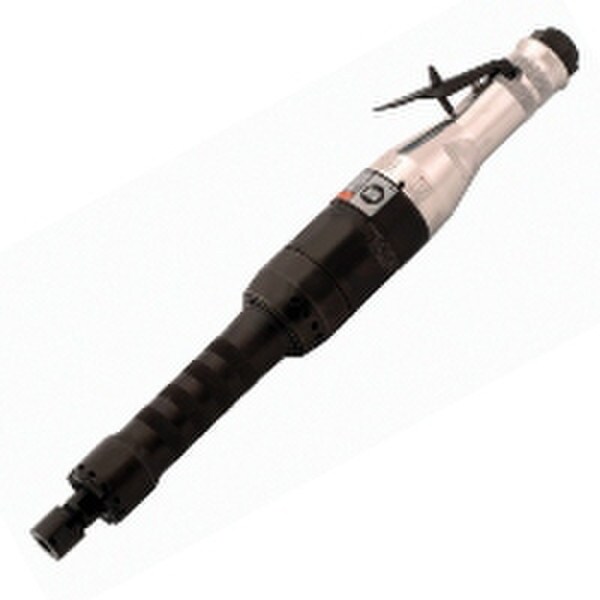

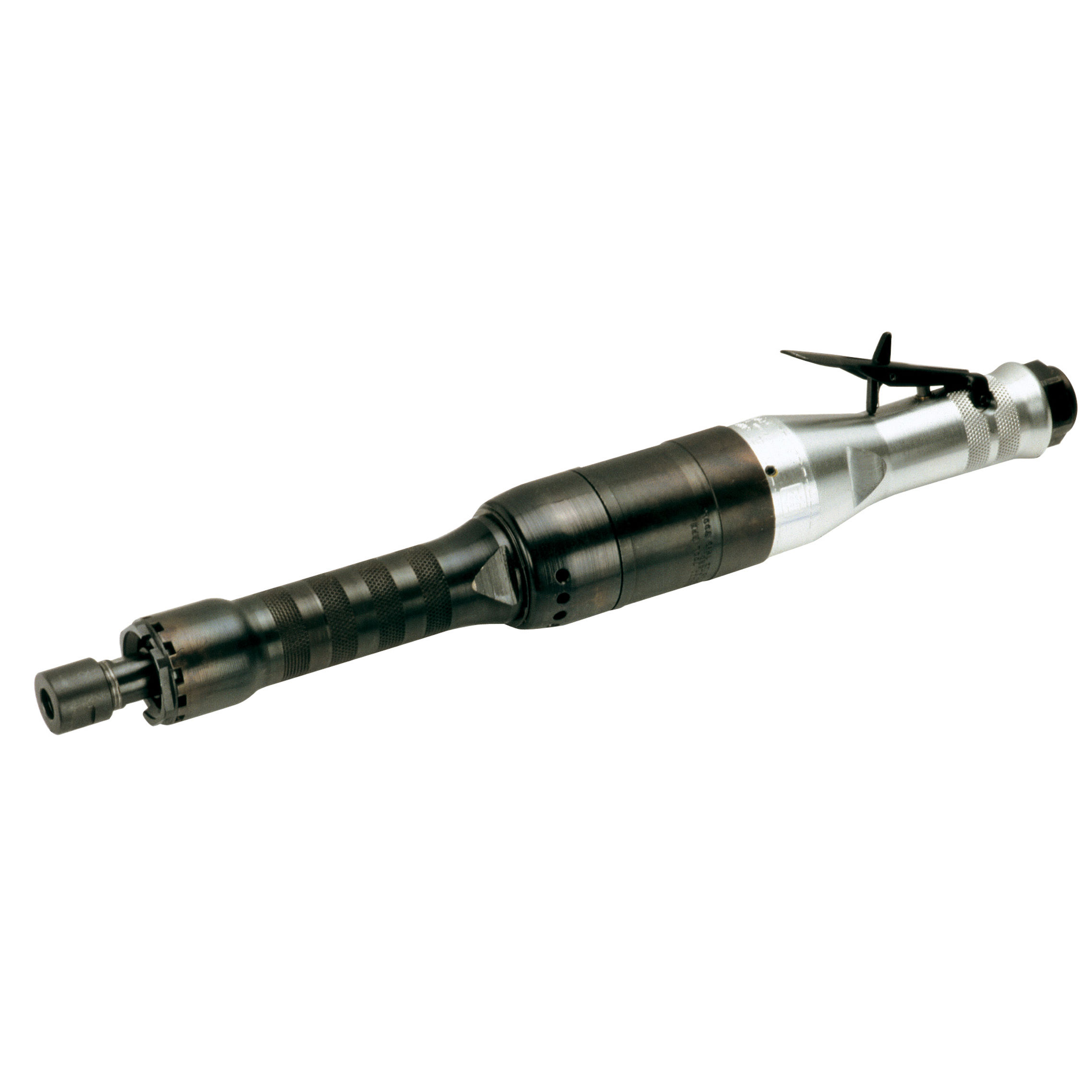

Ingersoll Rand 61H150G4

Pro Series 61H Straight Grinder

Pro Series grinders incorporate a patented motor controller which is designed to increase productivity while enhancing operator safety. Adjustable side handles, an ergonomic main handle, and self locking throttle all help to reduce operator fatigue.

• Solid steel motor and arbor housing provide maximum durability
• Built-in mist lubricator automatically oils motor when throttle is activated
• Heavy-duty, double-row ball bearings assure long life and smooth operation
• 61 = Series (61, 77, 88, 99)
• H = Type (A- angle, H- horizontal, V- vertical)
• L = Throttle (L- lever, G-grip)
• 60 = Free Speed (45- 4500, 60- 6000, 77- 7700, 90- 9000, 120- 12000, 150- 15000)
• G = Type of Wheel (G- collet, H- Type 1 wheel, L- cone wheel, P- Type 27 wheel, S- Type 11 Wheel)
• 6 = Diameter and Thread of Arbor (6- 3/8” 24 th., 8- 1/2" 13 th., 10- 5/8” 11 th.)
• 4 = Diameter of Wheel or Collet (4- 1/4" collet, 3- 3” wheel, 4- 4”wheel, 6- 6” wheel, 7- 7” wheel, 8- 8” wheel, 9- 9” wheel)
