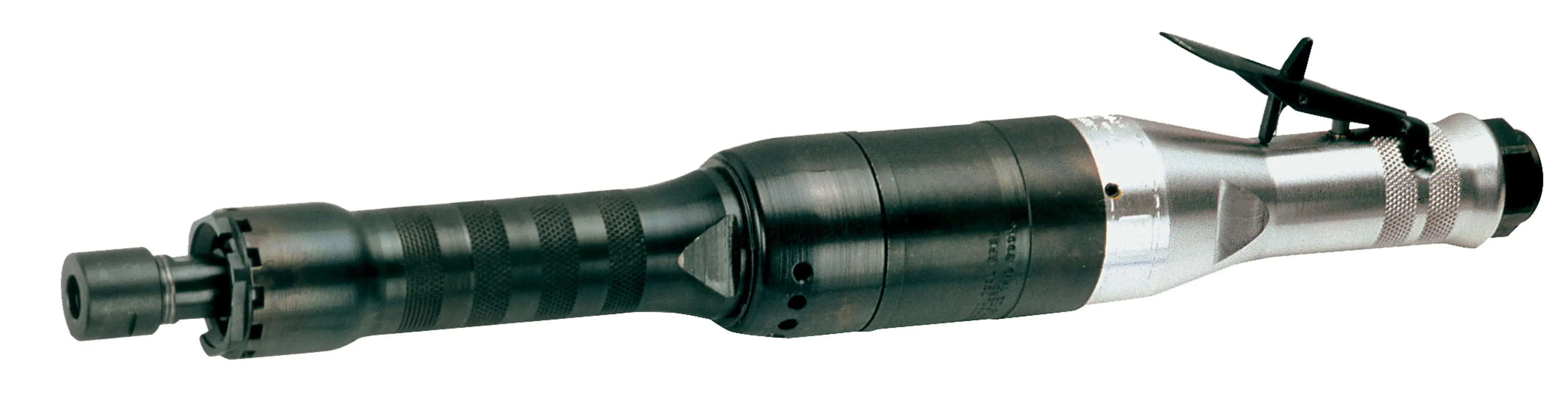

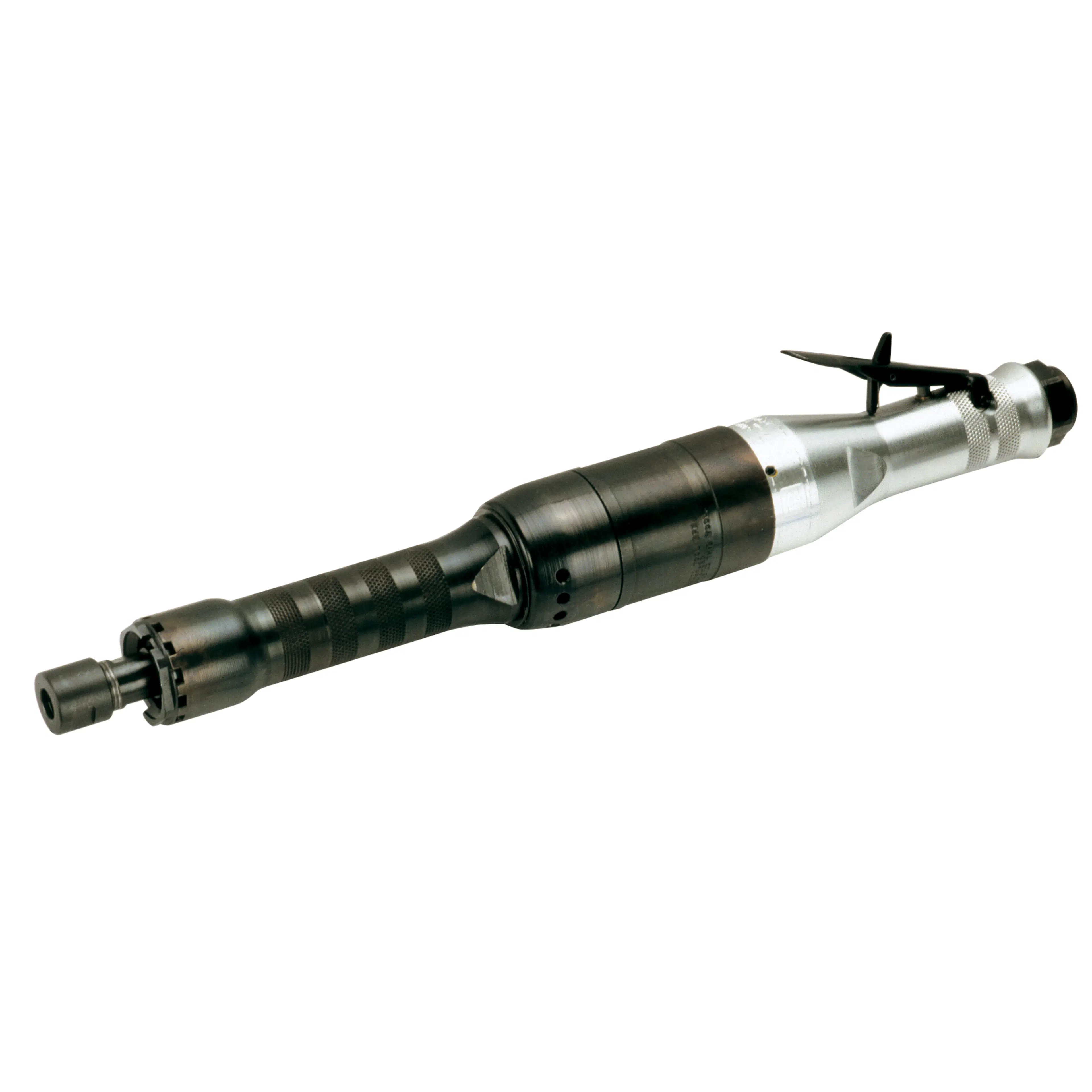

Pro Series Straight Air Grinder
Pro Series straight air grinder from Ingersoll Rand incorporates a patented motor controller which is designed to increase productivity while enhancing operator safety.
One series, several modelsPick the model that fits your job.Models in this series differ in size, capacity or configuration. Browse them on this page, or call us and we'll match one to your application.Each model is sold and priced individually.
Models Available
12 itemsOther models in the same range, from NetSuite's Models Available list. Each is a separate product with its own SKU and price, so they can be added to the order.
Details
Product information
Overview
Pro Series grinders incorporate a patented motor controller which is designed to increase productivity while enhancing operator safety. Adjustable side handles, an ergonomic main handle, and self locking throttle all help to reduce operator fatigue.
- Solid steel motor and arbor housing provide maximum durability
- Built-in mist lubricator automatically oils motor when throttle is activated
- Heavy-duty, double-row ball bearings assure long life and smooth operation
- 61 = Series (61, 77, 88, 99)
- H = Type (A- angle, H- horizontal, V- vertical)
- L = Throttle (L- lever, G-grip)
- 60 = Free Speed (45- 4500, 60- 6000, 77- 7700, 90- 9000, 120- 12000, 150- 15000)
- G = Type of Wheel (G- collet, H- Type 1 wheel, L- cone wheel, P- Type 27 wheel, S- Type 11 Wheel)
- 6 = Diameter and Thread of Arbor (6- 3/8” 24 th., 8- 1/2" 13 th., 10- 5/8” 11 th.)
- 4 = Diameter of Wheel or Collet (4- 1/4" collet, 3- 3” wheel, 4- 4”wheel, 6- 6” wheel, 7- 7” wheel, 8- 8” wheel, 9- 9” wheel)
| Features & Benefits | |
|---|---|
| RPM Range: 3000 - 15000 rpm | |
| Styles Available: Grip and Lever |
