Ingersoll Rand61H150G4

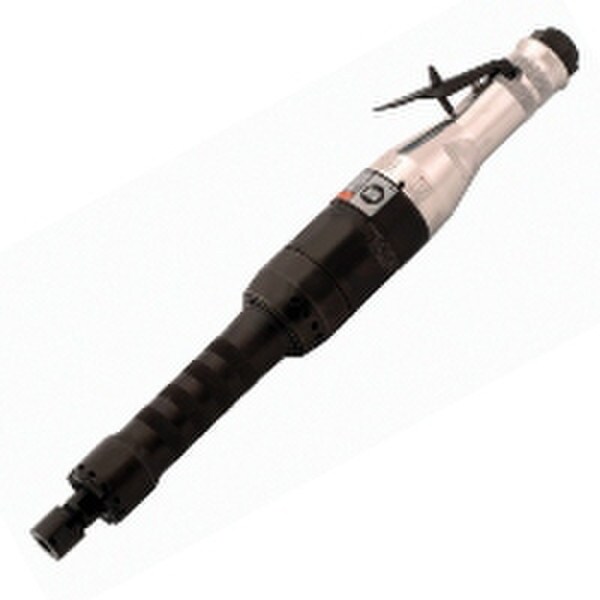

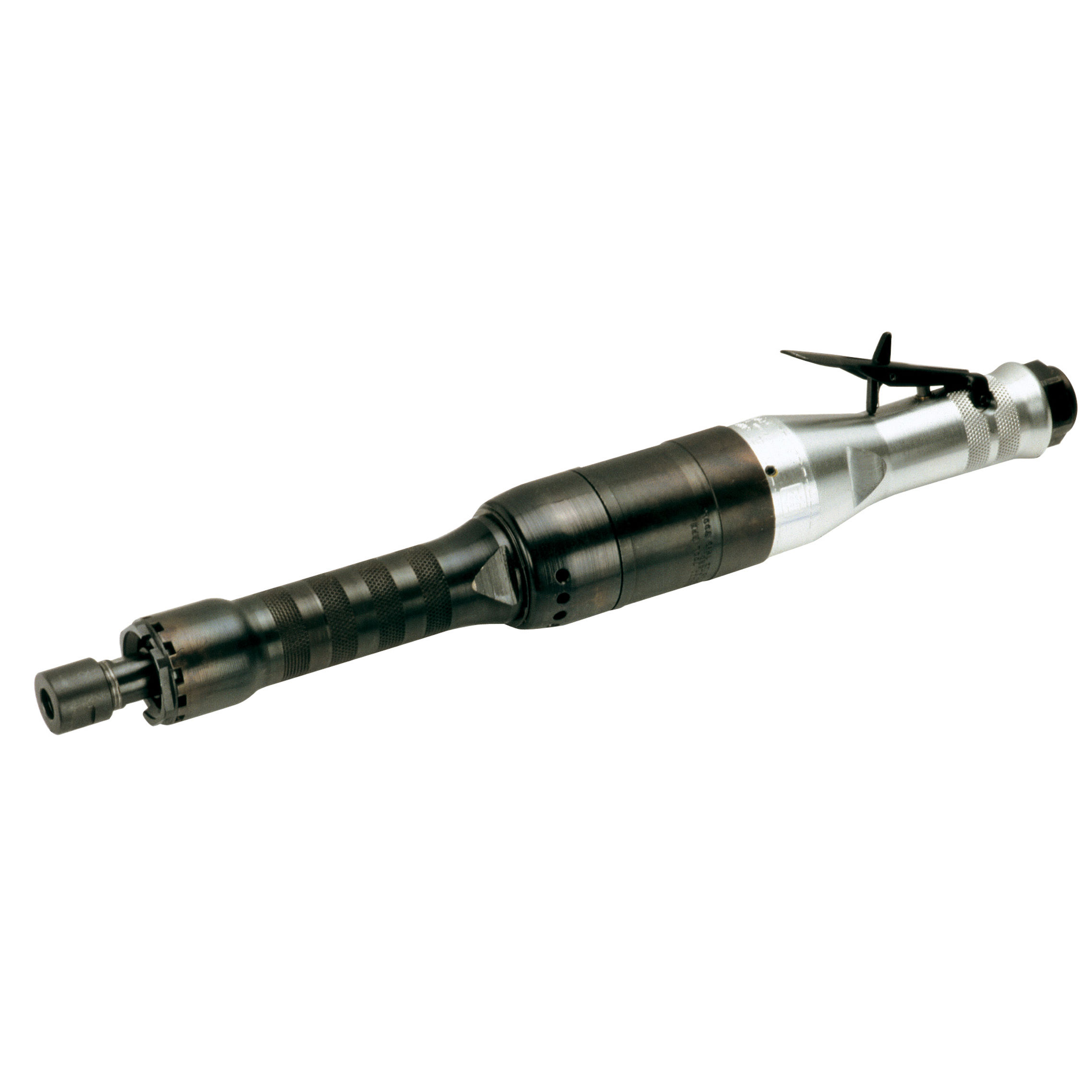

Pro Series 61H Straight Grinder
$1,796.06List $2,790.00
Save $993.94Total$1,796.06Taxes & shipping at checkout
Quantity
1
Item Ships free Order total must be over $999.99, under 20 lbs and shipping within continental USA
- Free UPS Ground over $999.99
- Factory-authorised service
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
61H150G4 | Pro Series 61H Straight Grinder61H150G4
Total$1,796.06
1
Details
Product information
Overview
Ingersoll Rand 61H150G4
Pro Series 61H Straight Grinder
Pro Series grinders incorporate a patented motor controller which is designed to increase productivity while enhancing operator safety. Adjustable side handles, an ergonomic main handle, and self locking throttle all help to reduce operator fatigue.
- Solid steel motor and arbor housing provide maximum durability
- Built-in mist lubricator automatically oils motor when throttle is activated
- Heavy-duty, double-row ball bearings assure long life and smooth operation
- 61 = Series (61, 77, 88, 99)
- H = Type (A- angle, H- horizontal, V- vertical)
- L = Throttle (L- lever, G-grip)
- 60 = Free Speed (45- 4500, 60- 6000, 77- 7700, 90- 9000, 120- 12000, 150- 15000)
- G = Type of Wheel (G- collet, H- Type 1 wheel, L- cone wheel, P- Type 27 wheel, S- Type 11 Wheel)
- 6 = Diameter and Thread of Arbor (6- 3/8” 24 th., 8- 1/2" 13 th., 10- 5/8” 11 th.)
- 4 = Diameter of Wheel or Collet (4- 1/4" collet, 3- 3” wheel, 4- 4”wheel, 6- 6” wheel, 7- 7” wheel, 8- 8” wheel, 9- 9” wheel)
| Technical Specifications | |
|---|---|
| Power Source | Air Powered |
| Air Inlet Size | 3/8" NPT |
| Min Hose Size | 1/2" |
| Air Pressure (PSI) | 90 |
| Air Consumption @ Load | 40 |
| Free Speed (RPM) | 15000 |
| Exhaust Direction | Side |
| Power (HP) | 1.33 |
| Collet Size | 1/4" |
| Weight (lbs) | 4.3 |
| Weight (kg) | 1.95 |
| Length (in) | 15.5 |
| Length (mm) | 394 |
| MPN | 61H150G4 |
