Atlas Copco8436 0260 25

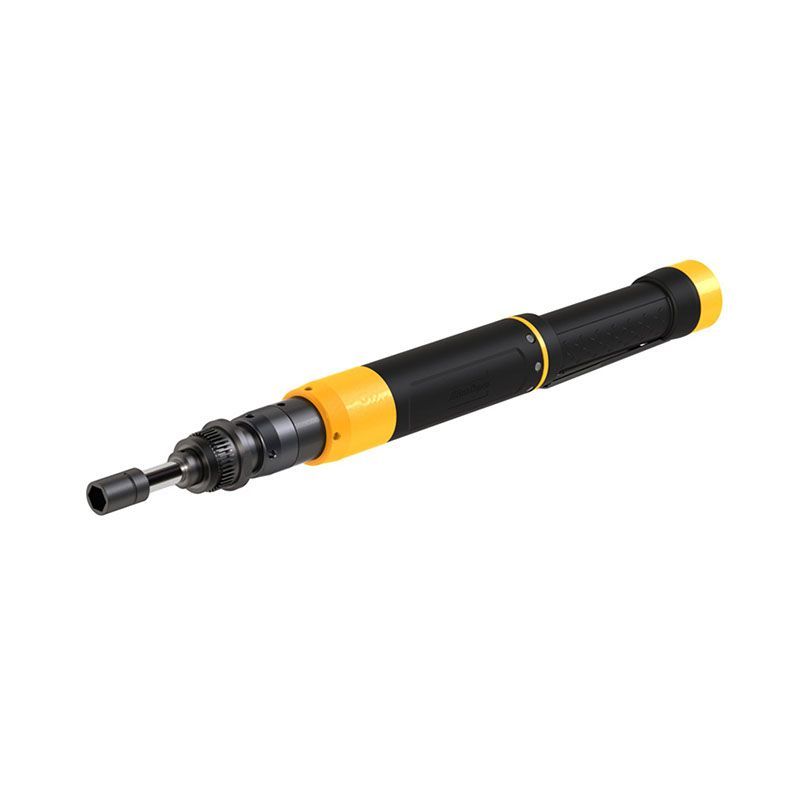

ETD ES61-25-10-T25 | Inline Electric Nutrunner, 10 - 25 Nm, 1793 rpm
The Tensor Es tool is designed for tough working environments. Durable performance in quality critical assembly.
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000
A specialist replies within one business day.
Warning:California Proposition 65Trade Regulations Advisory Notice
Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.
8436 0260 25 | ETD ES61-25-10-T25 | Inline Electric Nutrunner, 10 - 25 Nm, 1793 rpmETD ES61-25-10-T25
Price on request
Recommended Accessories
10 itemsAdd-on accessories that can be purchased alongside this product.
Details
Product information
Overview
Atlas Copco 8436 0260 25
Inline Electric Nutrunner W/ Ball Retainer, 7.4-18.4 Ft Lbs
The Tensor ES tool is designed for tough working environments. Its industrial design and brand new torque transducer together makes the decision to go electric easy. Durable performance in quality critical assembly now faster than ever thanks to the new and revolutionary tightening strategy TurboTight.
Features:
- Torque transducer with an accuracy of ±7.5% over six sigma.
- Robust, sealed design with one single extruded aluminum body protecting internal components from dust and oil.
- New durable motor with higher speeds.
- Engineered in modules with component commonality.
- Clear LEDs visible through 360°.
- Hot swap.
| Technical Specifications | |
|---|---|
| csdistance | 23 mm |
| length | 456 mm |
| outputsize | 3/8' |
| weight | 4.1 lb |
| modeltype | Straight |
| outputtype | Square, Male |
| shutoffsystem | Transducer |
| splinemounting | 2/2 |
| toolfamily | ES |
| torquerangemax | 25 Nm |
| torquerangemin | 10 Nm |
| torquescatter3s | ≤ 7.5 % |
| speedrangemax | 1793 r/min |
| soundpressure | <70 dB(A) |
| soundstandard | ISO15744 |
| vibrationstandard | ISO28927-2 |
| vibrationvalue | <2.5 m/s² |
| ccccertified | No |
| cqccertified | No |
| eaccertified | Yes |
| eulegislation | 2006/42/EC (MD) |
| eustandard | EN 61000-6-2:2019 |
| kccertified | Yes |
| kcid | R-REI-50A-ETVES61 |
| ukregulations | S.I. 2008/1597 |
| ukstandard | BS EN 62841-1:2015 + AC:2015 + A11:2022 |
| weee | 5 - Small equipment <50cm |
| motorpower | 1500 W |
| motorvoltagetype | 3 a.c. |
| motorvoltage | 200 V |
| MPN | ETD ES61-25-10-T25 |
| Features & Benefits | |
| Durable motor with high speeds | |
| Robust, sealed design protecting internal components from dust and oil. | |
| Engineered in modules with component commonality | |
| Durable motor with high speeds,Robust, sealed design protecting internal components from dust and oil. | |
