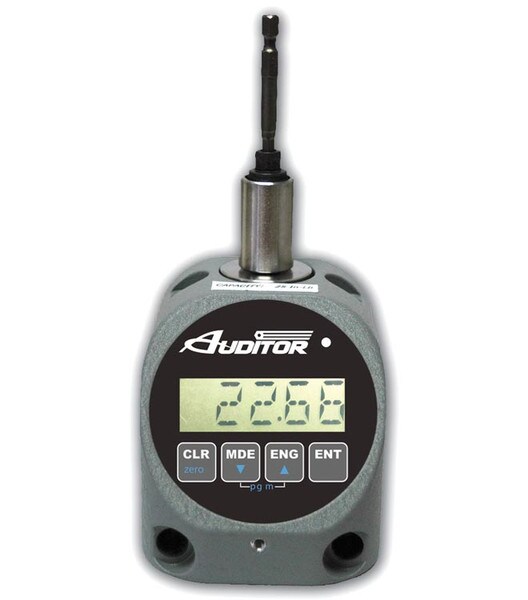

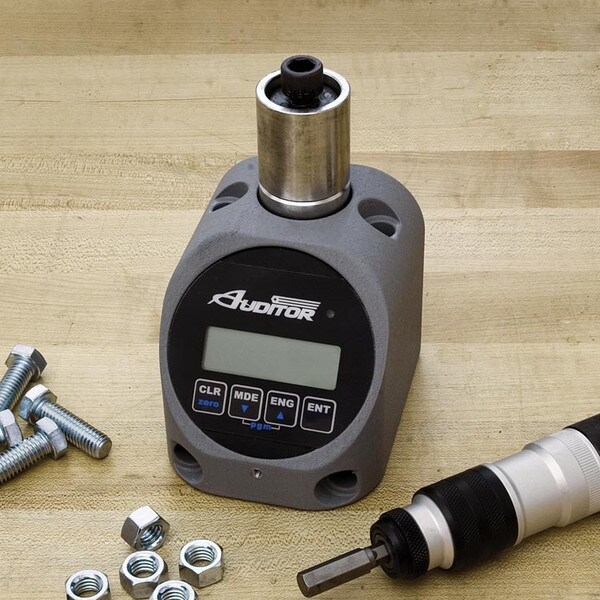

AIMCO ATC-25 | Portable torque tester, 25 in lbs / 2.82 Nm, 1/4'' square

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


AIMCO ATC-25 | Portable torque tester, 25 in lbs / 2.82 Nm, 1/4'' square

Rating:
(0)No Reviews yet
$1,056.78
AIMCO

Details

Introducing the ATC-25 Portable Torque Tester, a compact and versatile tool designed to revolutionize your torque testing needs. Manufactured by AIMCO, this state-of-the-art tester packs a multitude of features into a small, portable package, making it an essential addition to any assembly or quality control workstation.

  • Capacity: 25 in lbs / 2.82 Nm
  • Drive: 1/4'' square
  • Accuracy: Bidirectional accuracy of +/-1% of indicated reading within top 90% of full scale
  • Modes of Operation: Track, Peak, and 1st Peak
  • Power Tool Filtering Speeds: Selectable filtering speeds of 125Hz, 250Hz, 500Hz, 1000Hz, and 1500Hz

Invest in the ATC-25 Portable Torque Tester and unlock a new level of precision and versatility in your torque testing operations. Its compact size, intuitive interface, and comprehensive range of features make it an indispensable tool for assembly and quality control professionals. Elevate your testing capabilities with the ATC-25 and experience the confidence that comes with accurate and reliable measurements.

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.


Features & Benefits

  • Versatile Mounting Design: The ATC-25's versatile mounting design simplifies testing for both pistol and inline tools, accommodating a wide range of applications with ease.
  • Bevel Washer Joint Kits: Precise simulation of application joint characteristics is made possible with the inclusion of bevel washer joint kits, ensuring accurate and reliable testing results.
  • Bidirectional Accuracy: With a bidirectional accuracy of +/-1% of the indicated reading within the top 90% of full scale, the ATC-25 delivers precise and consistent measurements you can trust.
  • Intuitive Menu Structure: The user-friendly Auditor Series menu structure allows for quick and easy start-up, minimizing downtime and maximizing productivity.
  • Multiple Engineering Units: The tester offers eight (8) available engineering units, including oz-in, lb-in, lb-ft, Nm, cNm, kgf-cm, gf-cm, and kgf-m, providing versatility for various applications.

Technical Information

Technical Specifications

Technical Specifications

SKU: ATC-25-aimco
Manufacturer AIMCO
Model ATC-25
Stock CodeC
Dimensions 3.13 x 3.75 x 3.25 in
Drive size 1/4'' square
Series ATC
Torque Range (In Lbs) 2.5 - 25
Torque Range (Nm) - 2.82
Type Electronic Torque Tester
Weight6 lbs

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Videos & Media

introducing the atc-25 portable torque tester, a compact and versatile tool designed to revolutionize your torque testing needs. this advanced device from aimco uryu packs a multitude of features into a small, portable package, making it an essential addition to any assembly or quality control workstation. the atc-25's versatile mounting design simplifies testing for both pistol and inline tools, accommodating a wide range of applications with ease. precise simulation of application joint characteristics is made possible through the inclusion of bevel washer joint kits, ensuring accurate and reliable testing results. the user-friendly auditor series menu structure allows for quick start-up and easy operation, minimizing training time and maximizing productivity. with a bidirectional accuracy of 1% of the indicated reading within the top 90% of full scale, the atc-25 delivers precise and consistent torque measurements. the tester offers eight (8) available engineering units, including oz-in, lb-in, lb-ft,newton meters, cnm, kgf-cm, gf-cm, and kgf-m, providing versatility for various applications. with a capacity of 25 inch pounds / 2.82 newton metersand accuracy of ±1% of indicated reading within the top 90% of full scale, the atc-25 is a reliable and precise tool for your torque testing needs. the atc-25 is powered by nimh rechargeable batteries, providing 8-10 hours of continuous use, and features an rs-232 output for data transfer. invest in the atc-25 portable torque tester and unlock a new level of precision and versatility in your torque testing processes. its compact size, user-friendly interface, and comprehensive range of features make it an indispensable tool for assembly and quality control professionals.

Frequently Asked Questions

Learn more about our products

01What is the ATC-25's torque range?

The ATC-25 has a torque range between 2.5 - 25 in lbs.

02What type of application is the ATC-25 best suited for?

03How often does the ATC-25 need to be calibrated?

04Does the ATC-25 have a warranty?
