Tohnichi CEM100N3x15D-G | Data Tork, Digital Torque Wrench, 20 - 100 Nm

On Sale
Now: $1,036.00
Was: $1,184.00
Technical Specifications
Min Torque - Ft Lbs15
Max Torque - Ft Lbs73
Min Torque - In Lbs200
Max Torque - In Lbs900
Min Torque - Nm20
Max Torque - Nm101.7
Length - mm384
Stock CodeA

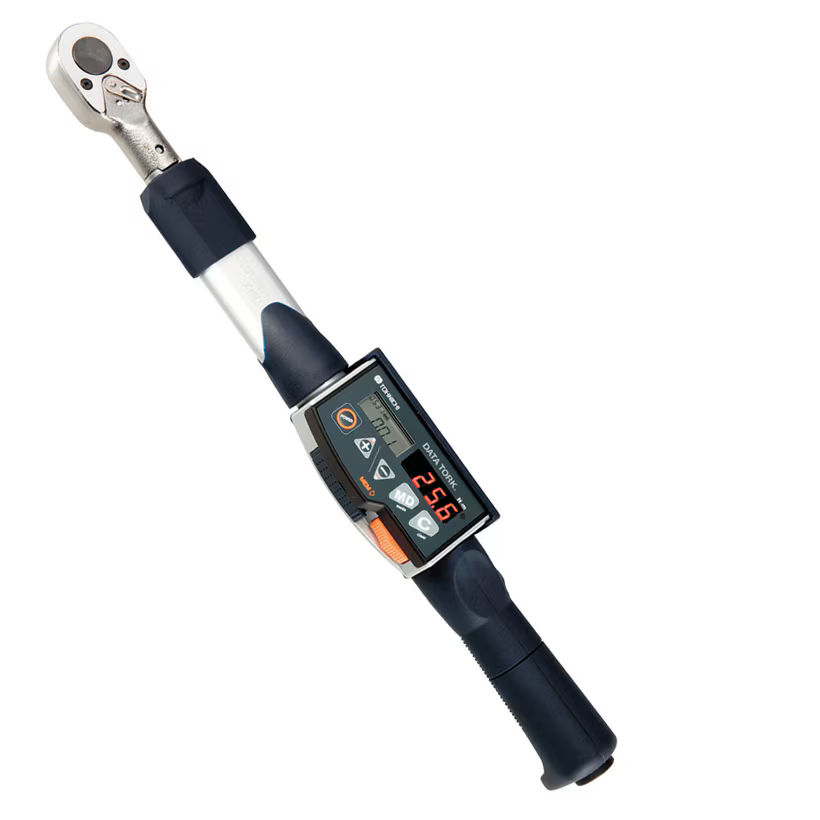

Tohnichi CEM100N3X15D-G

Cem3 Digital Torque Wrench

Used primarily as a quality inspection tool.Tests tightened fasteners by performing loosening or retightening tests. Confirm product quality and test tightening consistency of automated machinery.
  • Multiple unit of measure selection (Certificate in SI**)
  • Industrial grade digital torque wrench
  • Accuracy of +/-1% of indicated value
  • Bi-directional loading
  • 999 Data Memory Capacity with torque value, time/date stamp, and count
  • Dual LED and LCD Displays; Large Red LCD digits indicate torque value for easy viewing
  • Rechargeable Battery with Battery Level Indicator and Sleep Mode
  • Available in SI, Metric or English by selecting specific model when ordering
  • Set up HI Lo for Judgments linked to Red/Blue Lights (colorblind friendly) and Alarms
  • Tightening Mode for easy application of specific torque with over torque judgment
  • Light weight yet durable display casing with rubber protector
  • Automatic or Manual memory storage
  • RS232 output (#584 USB cable sold separately) {Blue tooth version available see CEM3-BT)
  • Includes Rechargeable Battery (BP-5), Battery Charger (BC-3-100), QH Ratchet Head, and Certificate of Calibration
  • Accepts Tohnichi interchangeable heads (additional heads sold separately)
