CDI DTT Torque Tester

Details

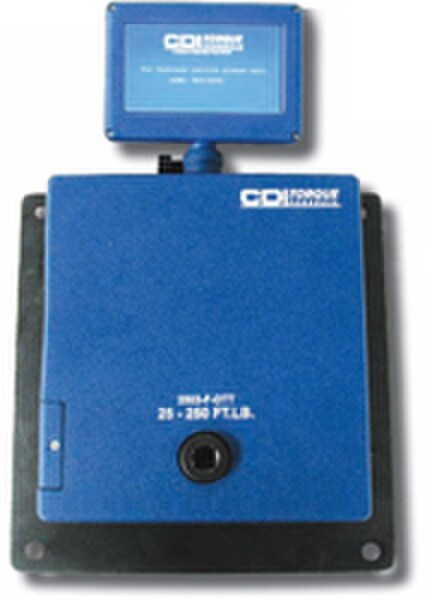

The CDI Digital Torque TesterTM (DTT)is designed to be an affordable torque tester that can be mounted on a wall or used in a bench-top vise to allow the operator to conveniently test torque wrenches and torque screwdrivers. It features an easy to use touch pad screen to capture peak torque values during a test in real time, and download stored torque data to a PC. All DTT torque testers are sold in a kit with the complete tester, hard carrying case, two socket driver reducer adapters and AC/DC power supply.

CDI Torque Products is America's largest manufacturer of electronic and mechanical Torque Tools. A leading industry innovator for over 30 years, CDI provides the highest in quality torque measurement and torque limiting devices.

Integral Transducer and sturdy housing allow mounting in virtually any position
Integral Transducer: Full bridge strain gage, 350 ohm, 1500uE, 3mV/V F.S, 3.75 excitation
Units of Torque: Nm, kgcm, ft.lb., in.lb., kgm
Audible (tone)
Torque Accuracy: ±0.5% CW and CCW from 5.6 to 100% of full scale at 25° C
LCD Touch Screen: 4.7 in. color graphics display
Screen resolution: 480 X 272 pixels
110 Volt AC/DC power supply included
Display Accuracy: 4 digits, 9999 cycle counts
Six "AA" Alkaline cells for battery power included
Track, Peak and First Peak modes of operation
Operating Temperature: 40 to 110° F (5 to 42° C)
Storage Temperature: 0 to 122° F (-20 to 50° C)
Humidity up to 85% non-condensing
ISO-6789-2003 and ASME B107-28-2005 standards compliant
Certificate of N.I.S.T. traceability from 5.6 to 100% of full scale
Includes storage case, AC adapter and USB cable

Accuracy: ± 0.50% 10% to 100% CW & CCW of indicated test value @ 25º C (Except 2503 -F-DTT)
Units of Measure: Nm, kgcm, ft.lb., in.lb., in.oz.
Operation Modes: TRACK, PEAK, FIRST PEAK
Operating Temperature: 10 to 32º C (50 to 90º F)
Storage Temperature: -20 to 50º C (-2 to 122º F)
Humidity: 85% Relative Humidity @ 21º C (70º F)
Power Supply: Included 9-volt A/C D/C adapter. 6 AA batteries included.
Data Storage/Recall: Memory Capacity – 500 Records (Complete Check Mode Only.)
Dimensions: W - 10" x H - 16" x D - 2.5"
Weight: (Tester Only) - 10.7 lbs., (with Carrying Case) - 17.4 lbs.
