  • 8436 4120 12 | ETV SR21-12-10 | Angle Electric Nutrunner, 2.5 - 12 Nm, 1350 rpm

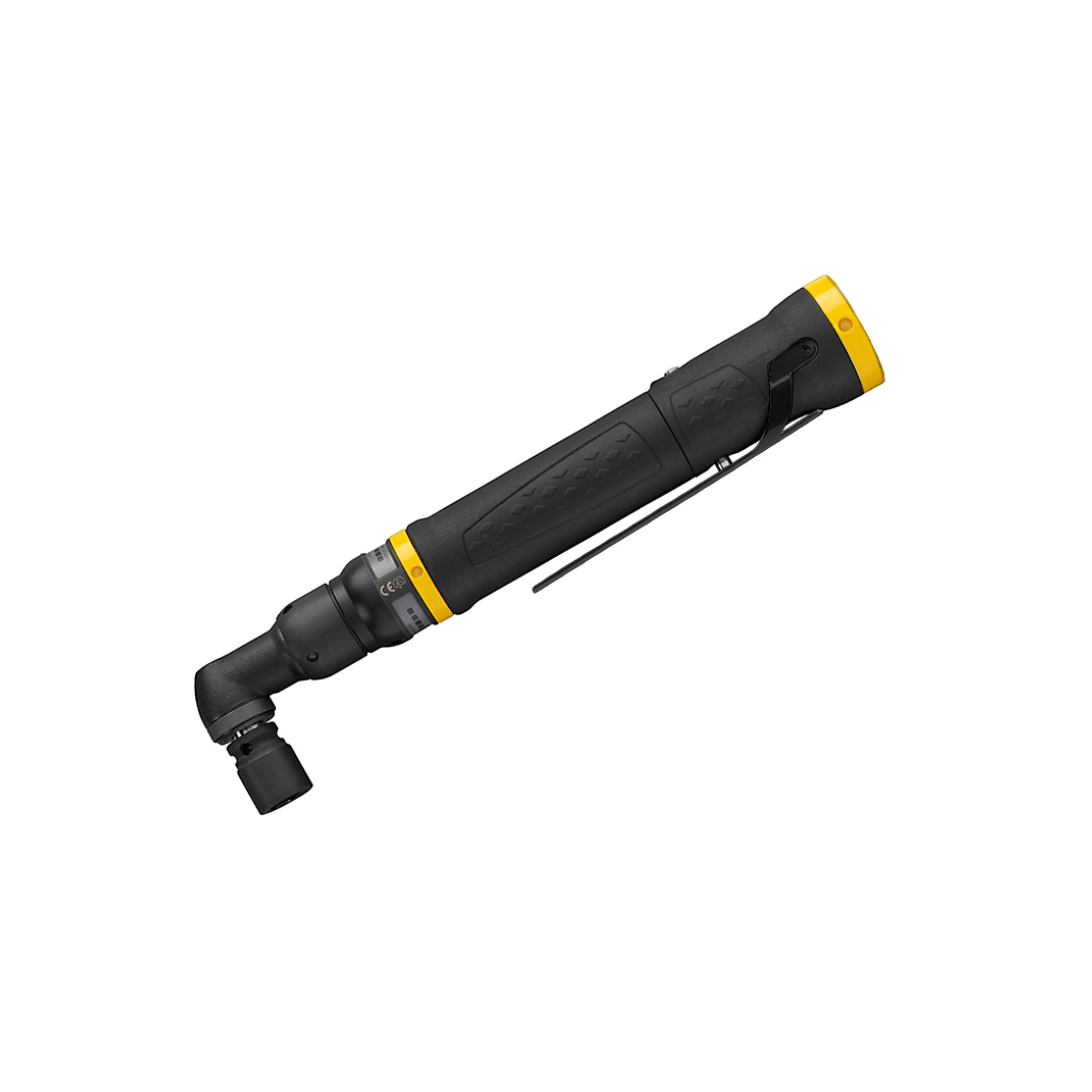

8436 4120 12 | ETV SR21-12-10 | Angle Electric Nutrunner, 2.5 - 12 Nm, 1350 rpm

(0)No Reviews yet
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable

Overview

Atlas Copco 8436 4120 12

Etv Sr Electric Angle Nutrunner, 1.9-8.9 Ft Lbs


Atlas CopcoÂ’s unique Tensor motors give the Tensor range outstanding spindle speeds and, thus, help you achieve lower cycle times in your operation. Exceptional ergonomics in terms of balance, grip and low weight make the tools a favorite of the operators and increase individual productivity. All Tensor tools are equipped with LEDÂ’s that will indicate the tightening result, green light for tightening OK and red light for NOK. At Atlas Copco we believe that quality is the road to lowest cost of operation over time. A maintained Tensor tool produces the same performance year after year at minimum and predictable costs while ensuring highest possible uptime. The latest generation of Tensor tools, Tensor STR, take ergonomics and productivity to a new level.

Features:
  • Extremely fast, compact and easy to operate, reducing operation cycle times
  • ESD certified, eliminating electrostatic discharge and reducing costs during assembly
  • Easy to configure function button for operator interaction increasing operation flexibility
  • Configurable LEDÂ’s and an integrated speaker for indicating results via audio signals for operator feedback, thus increasing assembly quality
  • Ideal for hand-held and fixtured applications

Features & Benefits

  • Extremely fast, compact, and easy to operate
  • Ideal for hand-held and fixed applications
  • Configurable LEDs for indicating results
  • ESD certified , eliminating electrostatic discharge

Technical Specifications

SKU: 8436 4120 12
csdistance
14 mm
length
297 mm
outputsize
3/8'
weight
2.4 lb
modeltype
Angle
outputtype
Square, Male
shutoffsystem
Transducer
splinemounting
-
toolfamily
SR
torquerangemax
12 Nm
torquerangemin
2.5 Nm
torquescatter3s
≤ 5 %
speedrangemax
1350 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
ccccertified
No
cqccertified
No
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN 61000-6-2:2019
kccertified
Yes
kcid
R-REI-50A-ETDSR21
ukregulations
S.I. 2008/1597
ukstandard
BS EN 62841-1:2015 + AC:2015 + A11:2022
weee
5 - Small equipment <50cm
motorpower
1500 W
motorvoltagetype
3 a.c.
motorvoltage
200 V
