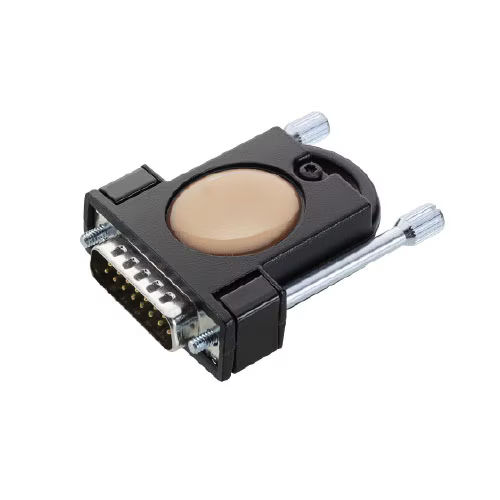

Atlas Copco 8433 0010 10

Rbu-Bronze

Atlas CopcoÂ’s patented Rapid Backup Unit (RBU) concept transfers functionality to a non-configured hardware unit, ensuring that hardware can easily be upgraded should functionality requirements change. The RBU also acts as back-up for programming and configuration. If a change of hardware is required, just fit the RBU to the new hardware, switch on the unit and youÂ’re ready. All programming and network configurations are transferred in seconds. The RBU cuts downtime to a minimum.

• Run tools Tensor S, ST, STB and STR
• Store up to 64 program settings (default) maximizing productivity in the station and reducing the need for additional tools
• Count batch: counts numbers of bolts to be tightened, to increase error proofing in assembly operations
• Open-end tools supported for tube nut applications, reducing assembly time
• Quick programming function to reduce program set-up time
• Cross thread and rehit detection to increase quality during assembly process
• Tool service indicator to help user plan preventive maintenance, reducing costs on run-to-fail
• Autoset function allows controller to adjust itself to joint conditions during set-up
• Lock tool on reject to reduce operator's influence on decisions, reducing quality related costs
• Store up to 5,000 (default) tightening status (OK/NOK) for short/mid term traceability
• Store up to 5,000 (default) tightening data for short/mid term traceability
• Store up to 8 (default) tightening traces for short term analysis
• Real time statistics, including statistical process control (SPC) to monitor the process, detecting deviations sooner
• Two stage/quick step/ergoramp tightening strategies to reduce joint relaxation, decrease tightening time and increase operator comfort
• Torque control and angle monitoring to detect if joint is properly tightened, securing tightening process
• Auto zoom step in ergoramp tightening automatically controls motor braking in different joint conditions
• CW (clockwise) and CCW (counter clockwise) operations supported
• Rundown angle, self tap and prevailing torque (PVT) monitoring to secure tightening process
• Reverse angle to loosen a bolt in a controlled manner
• Rotate spindle forward supported
• Click wrench input supported for operation backup, assuring the assembly process
• Torque and angle control stop the tool when both targets are reached for maximum process control
• Angle control and torque monitoring for better control during tightening process
• RS232 port for programming
• USB port for programming (Power Focus 4000 only)
• Discrete I/O to interface with a production line
• Remote start for fixture application
• QIF (error proofing modules) connectivity, such as socket selectors for easy installation in demanding error proofing applications
• Parallel printer port
• Expandable I/O (up to 124 in/124 out)
• Open protocol serial
