FANUC Robotics M-3iA/6S | 4 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 1350 mm reach

Call for Price
QuantityPrice
FANUC Robotics

Details

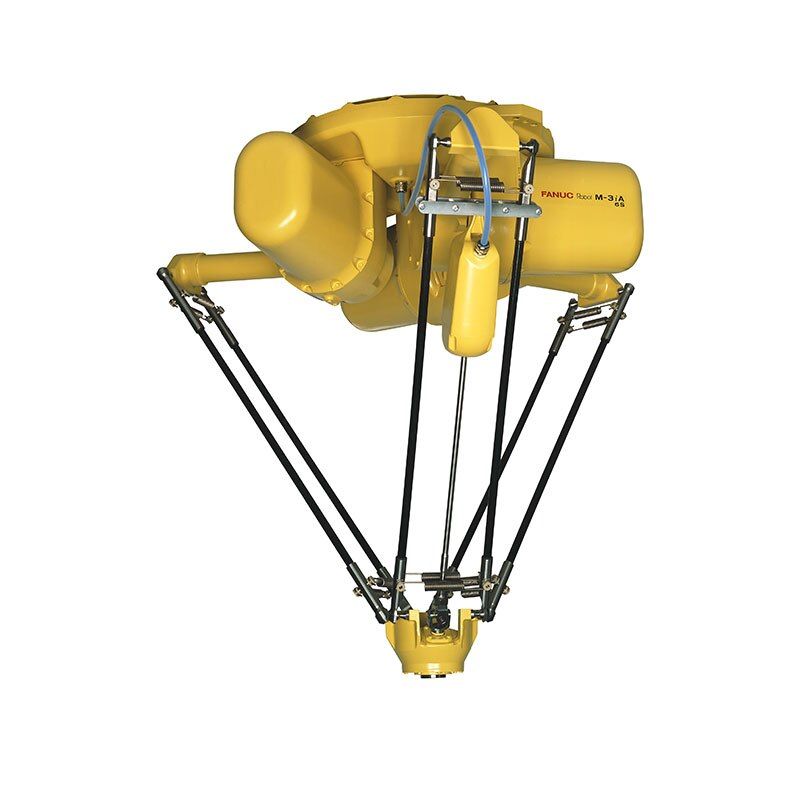

FANUC M-3iA/6S

4 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 1350 mm reach

Genkotsu-Robot 3 High-Speed Picking and Assembly Robot

The FANUC M-3iA Series robot is a high-speed picking and assembly robot with a payload range between 6 - 12 kg. The exclusive six-axis parallel-link design has expanded robotization of transfer and assembly applications.

Features:
  • IP67-related enclosed mechanical unit offers reliable water and dust protection
  • Food adaptation option is available with a high-quality surface treatment and food-grade lubricant; making it ideal for handling food and beverage products.
  • The latest intelligent functions can be applied using iRVision (Integrated Vision) or force sensing.

Fitted with powerful servomotors for high acceleration and short cycle times, this Delta Robot is ideal for high speed picking operations.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Its four axes and high-speed single axis wrist provide increased dexterity, while its long reach makes it ideal for picking applications across multiple conveyors.
  • With its single-axis wrist delivering speeds of up to 4,000 degrees/second, this model is for high-speed picking and kitting applications.
  • With IP67 protection as standard, this food-grade robot is ideal for dirty and dusty environments that involve complete wash downs.

Technical Information

Technical Specifications

Technical Specifications

SKU: M-3iA/6S
Manufacturer FANUC Robotics
Model M-3iA/6S
Stock CodeC
Application Assembly, Pick/Pack/Palletizing, Part Transfer, Dispensing, Material Removal
Installation Floor, Upside-Down, Angle
Maximum Reach (mm) diameter 1350 mm, height 500 mm
Axes 4
Payload 6 kg
Type Parallel Link Mechanism

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

FANUC M 3iA Series High Speed Picking Assembly Robot (PDF)

We are always wanting to provide more information! In need of a technical document? Let us know!
