Delta Robots
Delta Robots, also known as Spider and Parrallel-Link Robots sport an umbrella-shape design that mimics hand movement. Delta Robots are an excellenet alternative to an expensive all-in-one automation system. These robots are renown for their extreme accuracy and speed.
Narrow By
20 Products
SKU: FANUC M-1iA Robot Series
FANUC M-1iA Robot Series
- Motion Range: 2800mm/100mm
- Maximum Payload: 0.5 Kg
- Repeatability: ± 0.02 mm
- Call Or Email Us For A Quote
SKU: FANUC M-2iA Robot Series

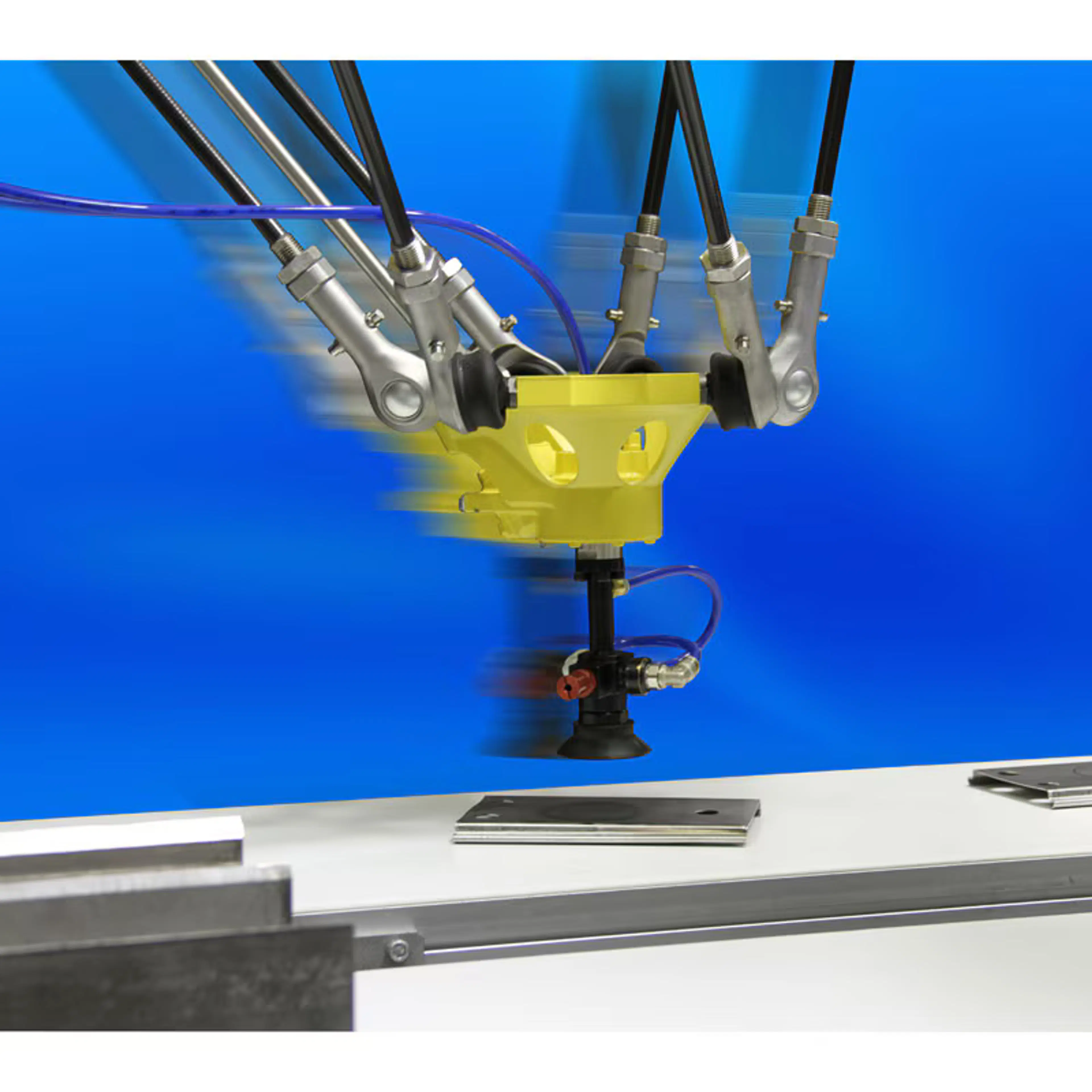

FANUC M-2iA Robot Series
- Motion Range: 800mm/300mm - 1130mm/400mm
- Maximum Payload: 3 Kg
- Repeatability: ± 0.1 mm
- Call Or Email Us For A Quote
SKU: FANUC M-3iA Robot Series

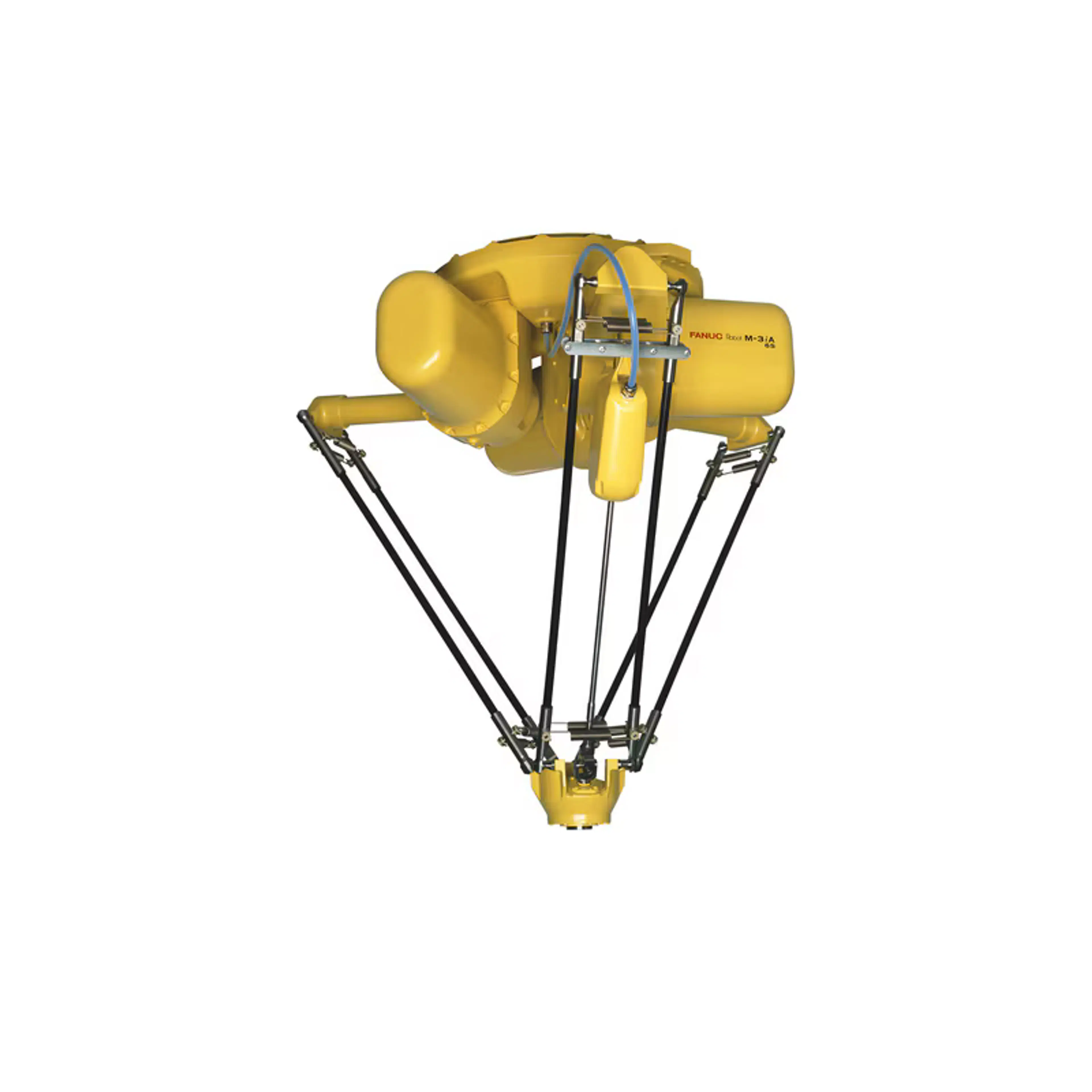

FANUC M-3iA Robot Series
- Motion Range: 1350mm/500mm
- Maximum Payload: 6-12 Kg
- Repeatability: ± 0.1 mm
- Call Or Email Us For A Quote
SKU: M-1iA/0.5A
FANUC Robotics M-1iA/0.5A 6 Axis, 0.5 kg Compact Mini Robot, 280 mm reach
Fast and compact palletising. Incredibly versatile and nimble, this model achieves excellent work rates on complex component assembly operations.
- Capable of working at any angle, this is the perfect choice for assembly and pick & place applications
- 6 axes in combination with FANUC's patented 3 axis wrist makes this model ideal for picking or complex component assembly applications at any angle.
- Vibration: 0.5G or less
SKU: M-1iA/0.5AL
FANUC Robotics M-1iA/0.5AL 6 Axis, 0.5 kg Compact High-Speed Assembly Robot, 420 mm reach
Lightweight delta robot. Combined with its 6 axes, the excellent repeatability provided by this model offers huge flexibility across a wide range of intricate applications.
- Ultra-variable mounting positions inherent to the series make this a very versatile option.
- A great choice for applications that demand high levels of versatility with its six axes and extended reach of up to 420 mm
SKU: M-1iA/0.5S
FANUC Robotics M-1iA/0.5S 4 Axis, 0.5 kg Compact High-Speed Assembly Robot, 280 mm reach
Lightweight delta robot. This series of high-speed delta robots offers infinite flexibility thanks to ultra-variable mounting positions and human hand-like versatility.
- Ideal for pick and place applications, high operating speeds provided by this 4-axis lightweight model reduce cycle times for tasks involving low payloads.
- Equipped with a single-axis wrist and capable of working at speeds of up to 3,000 degrees/second, this model is ideal for high speed picking applications.
- Vibration: 0.5G or less
SKU: M-1iA/0.5SL
FANUC Robotics M-1iA/0.5SL 4 Axis, 0.5 kg Compact High-Speed Assembly Robot, 280 mm reach
Lightweight delta robot. At just 17 kg, this is lightest model in the M-1 series. With a range of mounting options, this robot has the reach and repeatability to cover any number of tasks requiring 4-axis motioning.
- Cover an additional range of applications easily by simply adding another 500 grams payload.
- Easy to integrate, this model is ideal for tasks that require 4-axes motioning within an extended envelope.
- Vibration: 0.5G or less
SKU: M-1iA/1H
FANUC Robotics M-1iA/1H 3 Axis, 0.5 kg Compact High-Speed Assembly Robot, 280 mm reach
An ideal alternative to complicated and expensive hard automation, this 3-axis delta robot has a broad envelope that makes it ideal for line transfer operations involving low payloads.
- Built to make best use of space, it works to strict parameters enabling line staff to work safely alongside
- Ideal in line transfer or pick and place applications.
- Vibration: 0.5G or less
SKU: M-1iA/1HL
FANUC M-1iA/1HL 3 Axis, 0.5 kg Compact High-Speed Assembly Robot, 420 mm reach
Right to the point. At weighing only 18 kg and with a repeatability of ± 0.03 mm, this robot is ideal for intricate operations that require a longer reach.
- Flexible, high speed application system. A smart solution for complex assembly tasks such as circuit boards, LED lens, telephones and much more.
- Ideal for small parts handling, assembling electronic, solar or mechanical devices, parts feed, small parts picking and packing, sorting colors, quality control and machine tending.
- integrated with FANUC's ROBOGUIDE software, enabling integrators, planners and users to design cells, systems and motions offline.
SKU: M-2iA/3A
FANUC M-2iA/3A 6 Axis, 3 kg Compact High-Speed Picking and Assembly Robot, 800 mm reach
Automated speed and dexterity. This high-speed 6-axis delta robot is perfect for picking, packaging and assembly. Its 3-axis wrist means it is capable of freely rotating workpieces and tools as required for assembly applications.
- Best-in-class full articulation
- Unique 6-axis structure
- Wrist with fast rotate motion
- integrated with FANUC's ROBOGUIDE software, enabling integrators, planners and users to design cells, systems and motions offline.
SKU: M-2iA/3AL
FANUC M-2iA/3AL 6 Axis, 3 kg Compact High-Speed Picking and Assembly Robot, 1130 mm reach
Perfect for picking, packaging and assembly. Its 3-axis wrist means it is capable of freely rotating workpieces and tools as required for assembly applications.
- Best-in-class full articulation
- Unique 6-axis structure
- Wrist with fast rotate motion
- integrated with FANUC's ROBOGUIDE software, enabling integrators, planners and users to design cells, systems and motions offline.
SKU: M-2iA/3S
FANUC Robotics M-2iA/3S 4 Axis, 3 kg Compact High-Speed Picking and Assembly Robot, 800 mm reach
The ultra-compact M-2 range sits at the cutting edge of high-speed small parts handling. Featuring 4 axes, this robot offers infinite flexibility thanks to ultra-variable mounting positions and human hand-like versatility.
- Large work envelope to increase your productivity on payloads up to 3 kg
- 4-axis model with a single-axis wrist designed for picking from a conveyor at extremely high rates.
- IP69K protection as a standard feature and capable of withstanding high pressure steam cleaning, this robot is suitable for clean room environments.
SKU: M-2iA/3SL
FANUC Robotics M-2iA/3SL 4 Axis, 3 kg Compact High-Speed Picking and Assembly Robot, 1130 mm reach
The ultra-compact M-2 range sits at the cutting edge of high-speed small parts handling. Featuring 4 axes, this robot offers infinite flexibility thanks to ultra-variable mounting positions and human hand-like versatility.
- Ideal solution for more productivity in wet and clean room environments
- High productivity and short cycle times with fast accelerating servo motors.
- Straightforward protected cable routing of air and customer signals through the robot arm to the tool
- Picks and places containers at 182 parts per minute
SKU: M-2iA/6H
FANUC M-2iA/6H 3 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 800 mm reach
Offering maximum cable protection thanks to its hollow wrist, this 3-axis delta robot is not only ideally suited to wet environments but offers greater flexibility with its extensive work envelope
- Capable of high speed operation, it makes a good choice for picking and packing processes.
SKU: M-2iA/6HL
FANUC M-2iA/6HL 3 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 1130 mm reach
With a handling capacity up to 6 kg, this 3-axis long arm hollow wrist M-2 model provides a flexible solution to most applications involving low payloads.
- Long arm makes it ideal for operations involving wider conveyors.
- integrated with FANUC's ROBOGUIDE software, enabling integrators, planners and users to design cells, systems and motions offline.
SKU: M-3iA/6A
FANUC Robotics M-3iA/6A 6 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 1350 mm reach
This high-speed 6-axis delta robot is perfect for picking, packaging and assembly. Its 3-axis wrist means it is capable of freely rotating workpieces and tools as required for assembly applications.
- Lubricated with food-grade grease, this model features a special coating to handle acid and alkaline disinfectants, and low-pressure rinsing.
- 3-axis wrist enables you to feed parts in from different sides of the workzone, increasing your useable workspace.
- integrated with FANUC's ROBOGUIDE software, enabling integrators, planners and users to design cells, systems and motions offline.
SKU: M-3iA/6S
FANUC Robotics M-3iA/6S 4 Axis, 6 kg Compact High-Speed Picking and Assembly Robot, 1350 mm reach
Fitted with powerful servomotors for high acceleration and short cycle times, this Delta Robot is ideal for high speed picking operations.
- Its four axes and high-speed single axis wrist provide increased dexterity, while its long reach makes it ideal for picking applications across multiple conveyors.
- With its single-axis wrist delivering speeds of up to 4,000 degrees/second, this model is for high-speed picking and kitting applications.
- With IP67 protection as standard, this food-grade robot is ideal for dirty and dusty environments that involve complete wash downs.
SKU: M-3iA/12H
FANUC Robotics M-3iA/12H 3 Axis, 12 kg Compact High-Speed Picking and Assembly Robot, 1350 mm reach
This Delta Robot model comes with a high-speed wrist designed for low to medium payload applications. Added cable protection is provided by routing services through the robot's hollow wrist.
- Comes with a smart hollow wrist design for easy integration, reduced cable wear and increased productivity.
- With IP67 protection as standard, this food-grade robot is ideal for dirty and dusty environments that involve complete wash downs.
- Also known as the 'spider' robot, this 3-axis model is ideal for high speed picking multiple workpieces from conveyors.
SKU: DR-3iB/8L
FANUC DR-3iB/8L Delta Robot, 8 kg, 1600 x 500 mm, 4 axes, IP69K
FANUC's DR-3iB series of delta robots are specifically designed to maximize speed and versatility in picking and packing applications, especially for handling cosmetics, food, pharmaceuticals and other washdown environments.
- Option to be unpainted with electroless nickel plating surface treatment available
- No springs, no stickers, no pocketed fasteners, and includes angled surfaces to allow for self-draining - making it easier than ever to maintain.
- Standard IP69K protection makes the DR-3iB/8L ideal for environments with strict washdown standards
SKU: DR-3iB/6 STAINLESS
FANUC DR-3iB/6 STAINLESS Delta Robot, 6 kg, 1200 x 450 mm, 4 axes, IP69K
The new DR-3iB/6 STAINLESS is FANUC’s first stainless steel food-grade delta robot for picking and packing primary food products.
- Rated IP69K, the robot meets USDA and FDA food safety standards, and sets a new benchmark for robotic food handling in terms of payload, speed, reach and sanitation.
- Fully enclosed stainless steel body that is resistant to the chemicals and high pressure/temperatures
- Ideal in bakery, cosmetics, dairy, pharmaceutical and protein industries
- Compatible with FANUC R-30iB Plus controller with integrated intelligent functions such as iRVision®, Force Sensing, Robot Link, Collision Guard and Zero Down Time (ZDT)
