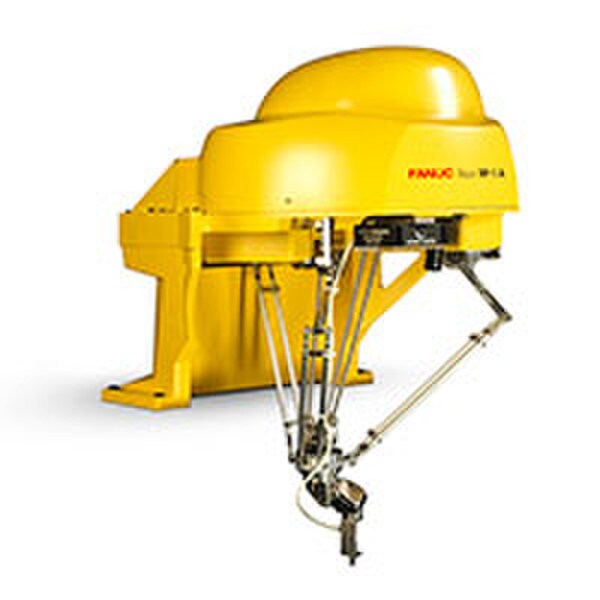

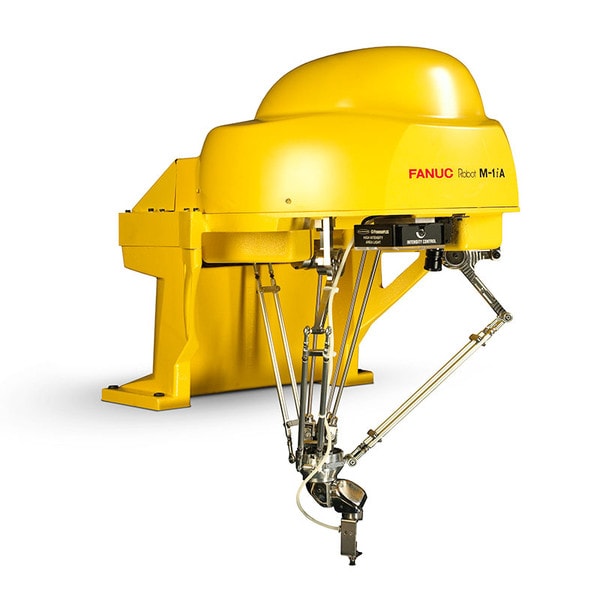

FANUC M-1iA/1H

3 Axis, 0.5 kg Compact High-Speed Assembly Robot, 280 mm reach

Genkotsu (Delta) - Compact High-Speed Assembly Robot

The M-1iA is a lightweight and compact high-speed assembly Robot. This lightweight and compact mechanical unit can be installed into tight work spaces, with free angle installation options.

Features:
  • Six Axis Variant

    Three Axes in wrist, providing flexible wrist motion suitable for assembly.

  • Four Axis Variant

    Single axis wrist (robot total is four axes) type. High speed 3000°/s wrist is suitable for picking.

  • Three Axis Variant

    Three Axis with a 1kg payload and no wrist rotation. Ultra high speed motion for line transfer or pick and place operations.

  • Unique parallel-link mechanism enables quick motion.
  • Multiple installation methods include desktop stand, no stand, and ceiling mount for easy machine integration.
  • A camera for iRVision (Integrated Vision) can be integrated in the mechanical unit.
360° Product Viewer

An ideal alternative to complicated and expensive hard automation, this 3-axis delta robot has a broad envelope that makes it ideal for line transfer operations involving low payloads.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Built to make best use of space, it works to strict parameters enabling line staff to work safely alongside
  • Ideal in line transfer or pick and place applications.
  • Vibration: 0.5G or less

Technical Information

Technical Specifications

Technical Specifications

SKU: M-1iA/1H
Manufacturer FANUC Robotics
Model M-1iA/1H
Stock CodeC
Application Assembly, Pick/Pack/Palletizing, Part Transfer, Dispensing, Material Removal
Installation Floor, Upside-Down, Angle
Maximum Reach (mm) diameter 280 mm, height 100 mm
Axes 3
Payload 1 kg
Type Parallel Link Mechanism
