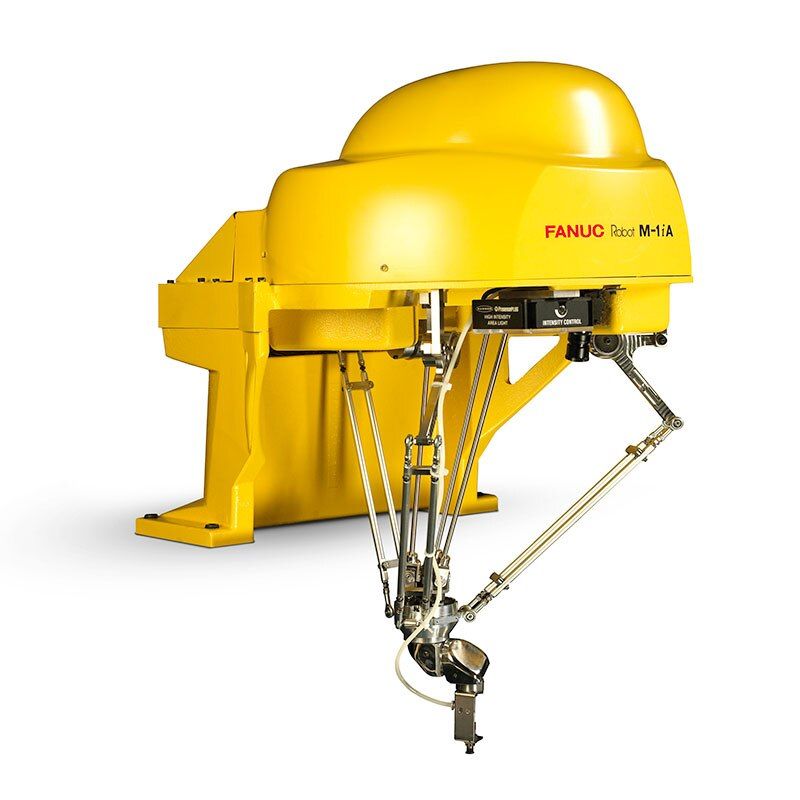

FANUC M-1iA/1HL

3 Axis, 0.5 kg Compact High-Speed Assembly Robot, 420 mm reach

Genkotsu (Delta) - Compact High-Speed Assembly Robot

The M-1iA is a lightweight and compact high-speed assembly Robot. This lightweight and compact mechanical unit can be installed into tight work spaces, with free angle installation options.

Features:
  • Six Axis Variant

    Three Axes in wrist, providing flexible wrist motion suitable for assembly.

  • Four Axis Variant

    Single axis wrist (robot total is four axes) type. High speed 3000°/s wrist is suitable for picking.

  • Three Axis Variant

    Three Axis with a 1kg payload and no wrist rotation. Ultra high speed motion for line transfer or pick and place operations.

  • Unique parallel-link mechanism enables quick motion.
  • Multiple installation methods include desktop stand, no stand, and ceiling mount for easy machine integration.
  • A camera for iRVision (Integrated Vision) can be integrated in the mechanical unit.

Right to the point. At weighing only 18 kg and with a repeatability of ± 0.03 mm, this robot is ideal for intricate operations that require a longer reach.

Warning: California Proposition 65

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Features & Benefits

  • Flexible, high speed application system. A smart solution for complex assembly tasks such as circuit boards, LED lens, telephones and much more.
  • Ideal for small parts handling, assembling electronic, solar or mechanical devices, parts feed, small parts picking and packing, sorting colors, quality control and machine tending.
  • integrated with FANUC's ROBOGUIDE software, enabling integrators, planners and users to design cells, systems and motions offline.

Technical Information

Technical Specifications

Technical Specifications

SKU: M-1iA/1HL
Manufacturer FANUC
Model M-1iA/1HL
Application Assembly, Pick/Pack/Palletizing, Part Transfer, Dispensing, Material Removal
Installation Floor, Upside-Down, Angle
Axes 3
Payload 1 kg
Type Parallel Link Mechanism

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Technical Documents

FANUC M 1iA Series Compact High Speed Assembly Robot Brochure (PDF)

We are always wanting to provide more information! In need of a technical document? Let us know!
