Mark-10 | Series 2 Digital Force Gauge

SKU:Mark-10 Series 2 Digital Force Gauge
(0)No Reviews yet
Get your tool under our Flex Warranty!
We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

Why the Flex Warranty?

Technical Specifications

SKU: Mark-10 Series 2 Digital Force Gauge

We strive to provide as much technical information as possible. If you need more tech data, let us know!

Product Details

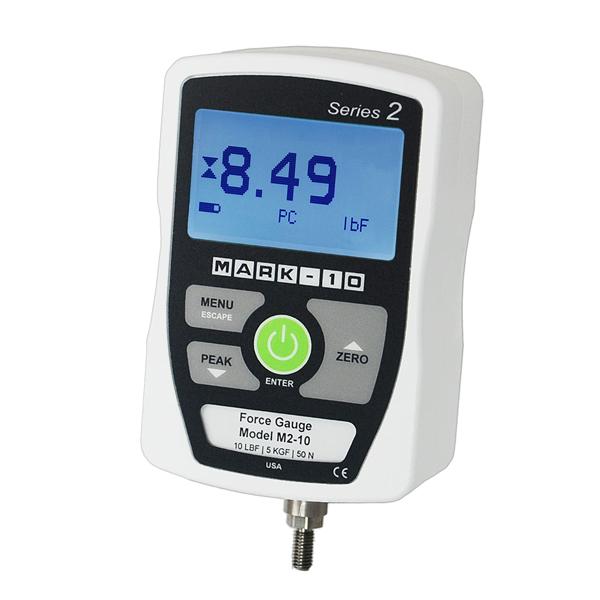

Mark-10 Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

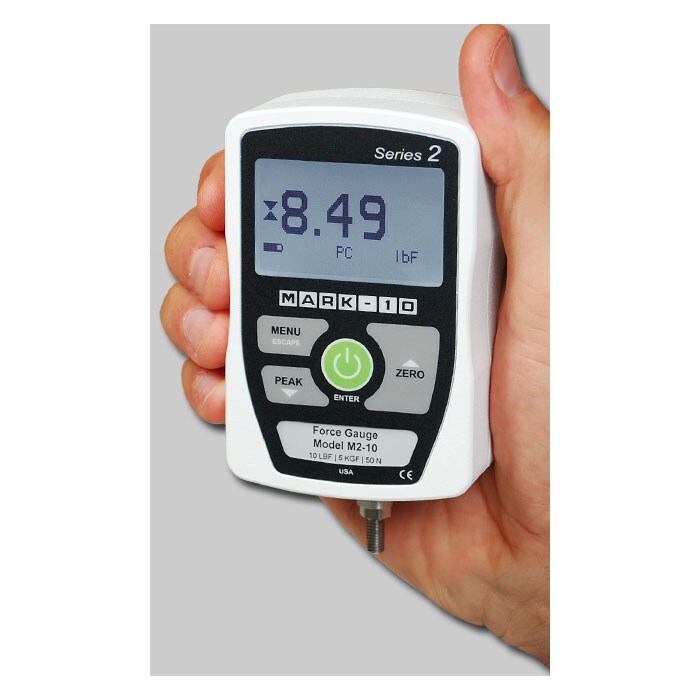

The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

  • Calculates peak tension and compression values
  • 3 selectable units of measurement
  • Ultra-compact, ergonomic housing
  • Configurable default measurement unit and mode
  • 500 Hz sampling rate
  • Large, backlit graphic display with auto-dimming
  • Powered by 9V battery or available AC adapter
  • Reversible housing for alternate load cell orientation
Accuracy:±0.5% of full scale
Sampling rate:500 Hz
Power:AC or 9V non-rechargeable battery, with multi-step low battery indicator
Battery Life:Backlight on: up to 24 hours
Backlight off: up to 92 hours
Measurement units:lbF, kgF, N
Safe overload:150% of full scale (display shows “OVER” at 110% and above)

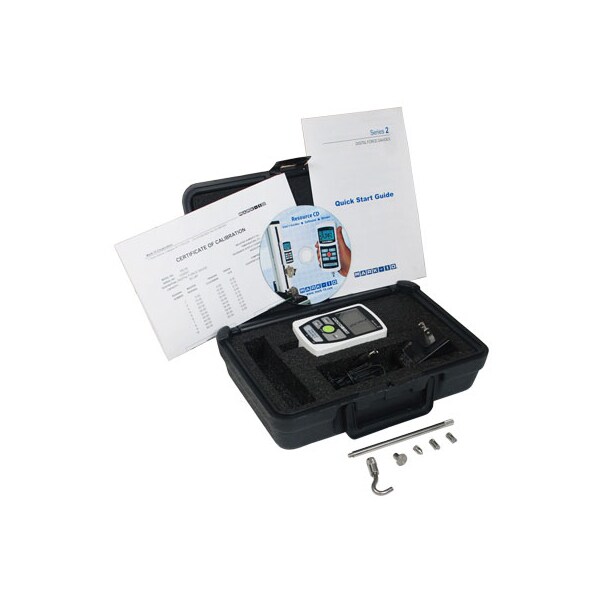

Included items:9V battery, quick-start guide, resource CD, certificate of conformance
Environmental requirements:40 - 100°F, max. 96% humidity, non-condensating
Warranty:3 years (see individual statement for further details)



Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Features & Benefits

  • Accuracy: ±0.5% of full scale
  • Sampling rate: 500 Hz
  • From $394
  • Measurement units: lbF, kgF, N
