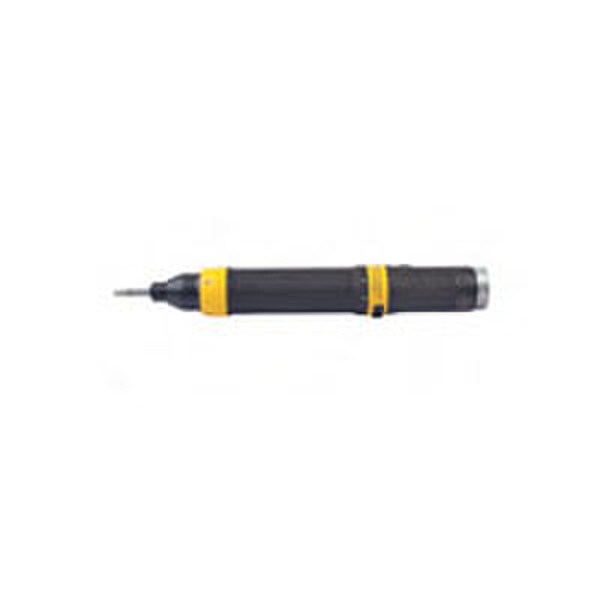

8436 0220 07 | ETD ES21-07-I06-PS | Inline Electric Nutrunner, 2.8 - 7 Nm, 1147 rpm
Overview
The Tensor ES tool is designed for tough working environments. Its industrial design and brand new torque transducer together makes the decision to go electric easy. Durable performance in quality critical assembly now faster than ever thanks to the new and revolutionary tightening strategy TurboTight.
Features:- Torque transducer with an accuracy of ±7.5% over six sigma.
- Robust, sealed design with one single extruded aluminum body protecting internal components from dust and oil.
- New durable motor with higher speeds.
- Engineered in modules with component commonality.
- Clear LEDs visible through 360°.
- Hot swap.
Features & Benefits
- Durable motor with high speeds
- Robust, sealed design protecting internal components from dust and oil.
- Engineered in modules with component commonality
Technical Specifications
SKU: 8436 0220 07
csdistance
19.5 mm
length
267 mm
outputsize
1/4'
weight
1.8 lb
modeltype
Straight
outputfeature
Bit holder
outputtype
Hexagon, Female
shutoffsystem
Transducer
toolfamily
ES
torquerangemax
7 Nm
torquerangemin
2.8 Nm
torquescatter3s
≤ 7.5 %
speedrangemax
1147 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
ccccertified
No
cqccertified
No
eaccertified
Yes
eulegislation
2006/42/EC (MD)
eustandard
EN 61000-6-2:2019
kccertified
Yes
kcid
R-REI-50A-ETDES21
ukregulations
S.I. 2008/1597
ukstandard
BS EN 62841-1:2015 + AC:2015 + A11:2022
weee
5 - Small equipment <50cm
motorpower
1040 W
motorvoltagetype
3 a.c.
motorvoltage
200 V
Technical Documents
Atlas Copco ES Series Micro Torque Tools Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
