8433 3019 90 | ETP STB33-12-10-W, 3/8 in. 18V Pistol-Grip Nutrunner, 4 - 12 Nm
In Stock (1)
This item ships today! Place your order before 4pm Pacific Standard Time (PST)
Overview

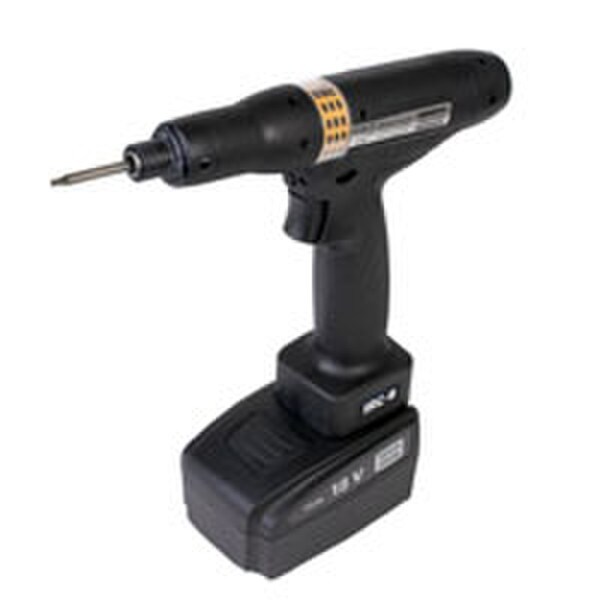

Atlas Copco 8433 3019 90
Transducerized Pistol Grip Nutrunner, 3-9 Ft Lbs (Wifi Communication)
Tensor STB offers genuine ergonomic and flexibility advantages for the operator which, in turn, raises operator efficiency.
Features:- Low tool weight and high spindle speed reduce cycle time.
- Freedom of movement in all working positions.
- Lightweight components help reduce operator fatigue.
- Torque range ETV: 2-150 Nm.
- Torque range ETP: 2-12 Nm.
- Tensor STB-B is also available with ETO and ETC models.
Features & Benefits
- Low tool weight and high spindle speed reduce cycle time.
- Freedom of movement in all working positions.
- Supports 2.4 and 5.0 Ghz.
- Lightweight components help reduce operator fatigue.
Technical Specifications
SKU: 8433 3019 90
height
208 mm
length
216 mm
weight
2.1 lb
communicationtype
W-LAN
modeltype
Pistol
shutoffsystem
Transducer
torquerangemax
12 Nm
torquerangemin
4 Nm
freespeed96v
750 r/min
soundpressure
<70 dB(A)
soundstandard
ISO15744
vibrationstandard
ISO28927-2
vibrationvalue
<2.5 m/s²
cmiitid
2014AJ1502
eaccertified
Yes
eulegislation
2014/53/EU, 2014/30/EU, 2006/42/EC, 2011/65/EU
eustandard
EN 300 328 V2.1.1
etlcontrolnumber
3008099
etllisted
Yes
etltext
6 - 62841-2-2
fccid
PVH0941
icid
5325A-0941
kccertified
Yes
kcid
R-R-50A-ETPSTB33
weee
5 - Small equipment <50cm
motorpower
1080 W
motorvoltage
18 V
battery
Li-Io 18 V
weightinclbattery
3.4 lb
