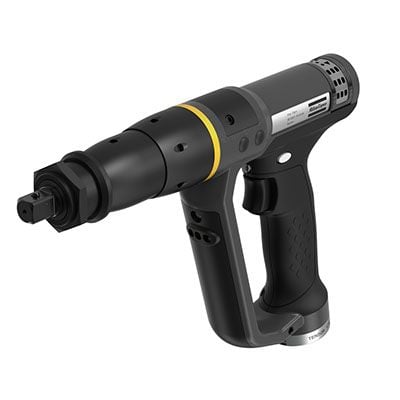

Atlas Copco 8436 6360 30

Etp Str61-30-10, Etp Str61 Electric Pistol Grip Nutrunner, 4.4-23.5 Ft Lbs


Atlas CopcoÂ’s unique Tensor motors give the Tensor range outstanding spindle speeds and, thus, help you achieve lower cycle times in your operation. Exceptional ergonomics in terms of balance, grip and low weight make the tools a favorite of the operators and increase individual productivity. All Tensor tools are equipped with LEDÂ’s that will indicate the tightening result, green light for tightening OK and red light for NOK. At Atlas Copco we believe that quality is the road to lowest cost of operation over time. A maintained Tensor tool produces the same performance year after year at minimum and predictable costs while ensuring highest possible uptime. In the latest generation of Tensor tools, Tensor STR, ergonomics and productivity are taken to a new level.

Features:
  • Extremely fast, compact and easy to operate, reducing operation cycle times
  • ESD certified, eliminating electrostatic discharge and reducing costs during assembly
  • Easy to configure function button for operator interaction increases operation flexibility
  • New D-grip handle gives more robustness, safety and less heat transfer, thus extending tool life cycle
  • Speed increased by up to 45% compared to Tensor S, previous generation, pistol grip range, increasing productivity
  • Weight reduced by up to 45% compared to Tensor S, previous generation, pistol grip range, improving ergonomics
  • Easy to mount tool accessories such as scanner and parameter selector to enhance flexibility of operator in station
  • Optional operation handle is available to distribute reaction force on operator and increase safety

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Technical Information

Technical Specifications

Technical Specifications

SKU: 8436 6360 30
Manufacturer Atlas Copco
Model ETP STR61-30-10
Stock CodeC
Drive size 3/8" square
Free Speed (RPM) 1530
Increments Ft Lb
Length (mm) 244
Max Free Speed (rpm) 1530
Torque Range (Ft Lbs) 4.4 - 23.5
Torque Range (In Lbs) - 283
Torque Range (Nm) 6 - 32
Weight2.87 lbs
