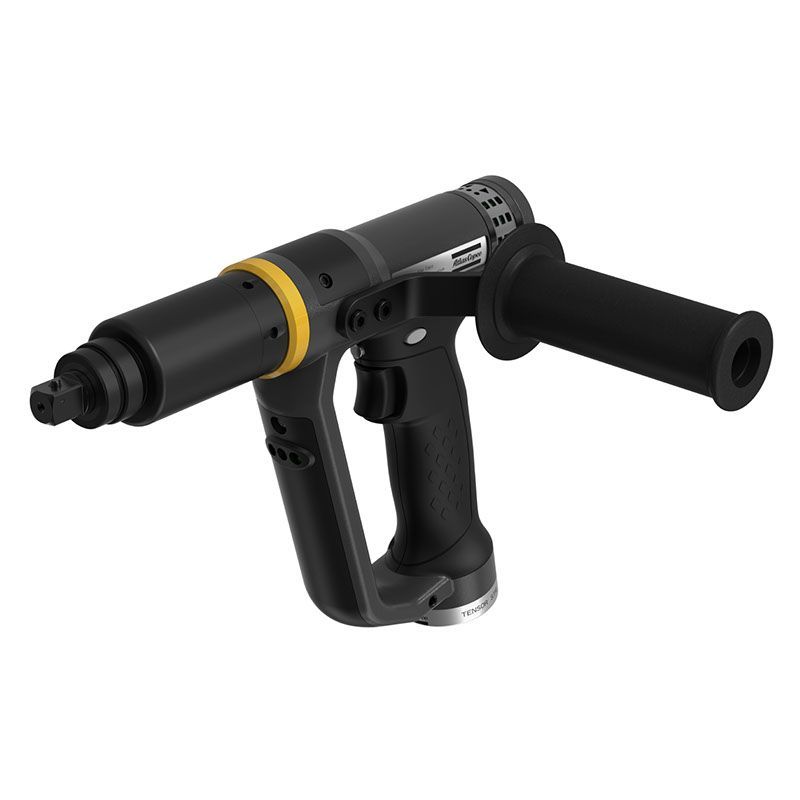

8436 6360 90 | ETP STR61-90-13 | Electric Nutrunner, 20 - 95 Nm, 450 rpm image 1
Click the image to zoom
Atlas Copco
  • Free shipping on orders over $999
  • Over 23 years in business
  • Free expert advice
  • In-house service and calibration department
  • Low price guarantee
  • Safe and secure checkout
Atlas Copco8436 6360 90

ETP STR61-90-13 | Electric Nutrunner, 20 - 95 Nm, 450 rpm

Price on request
Your requestWe price the quantity you set here
Quantity
1
Call (619) 287-7000

A specialist replies within one business day.

Warning:California Proposition 65Trade Regulations Advisory Notice

Non-ReturnableSpare Parts, Specialty and Custom items are non-returnable and non-refundable.

Documents2 files

Recommended Accessories

8 items

Add-on accessories that can be purchased alongside this product.

ProductPriceQty
4220 2636 034220 2636 03 | 3m Tool Cable for ST/SR/STR Models1View details
8092 1190 998092 1190 99 | ToolsTalk PF W10 : Plant license1View details
8433 0010 108433 0010 10 | RBU-Bronze1View details
8433 0015 208433 0015 20 | RBU-Silver1View details
8433 0020 208433 0020 20 | RBU-Gold1View details
8433 7100 008433 7100 00 | PF 4000-G-HW Graph Controller1View details
8433 7100 058433 7100 05 | PF 4000-C-HW Compact Controller1View details
Power Focus 60008436 1800 02 | Power Focus 6000 | Power Focus 6000 Controller1View details

Details

Product information

Overview

Atlas Copco 8436 6360 90

Etp Str61-90-13, Etp Str61 Electric Pistol Grip Nutrunner, 14.7-70.4 Ft Lbs

Atlas CopcoÂ’s unique Tensor motors give the Tensor range outstanding spindle speeds and, thus, help you achieve lower cycle times in your operation. Exceptional ergonomics in terms of balance, grip and low weight make the tools a favorite of the operators and increase individual productivity. All Tensor tools are equipped with LEDÂ’s that will indicate the tightening result, green light for tightening OK and red light for NOK. At Atlas Copco we believe that quality is the road to lowest cost of operation over time. A maintained Tensor tool produces the same performance year after year at minimum and predictable costs while ensuring highest possible uptime. In the latest generation of Tensor tools, Tensor STR, ergonomics and productivity are taken to a new level.

Features:

  • Extremely fast, compact and easy to operate, reducing operation cycle times
  • ESD certified, eliminating electrostatic discharge and reducing costs during assembly
  • Easy to configure function button for operator interaction increases operation flexibility
  • New D-grip handle gives more robustness, safety and less heat transfer, thus extending tool life cycle
  • Speed increased by up to 45% compared to Tensor S, previous generation, pistol grip range, increasing productivity
  • Weight reduced by up to 45% compared to Tensor S, previous generation, pistol grip range, improving ergonomics
  • Easy to mount tool accessories such as scanner and parameter selector to enhance flexibility of operator in station
  • Optional operation handle is available to distribute reaction force on operator and increase safety
Technical Specifications
csdistance26.5 mm
length298 mm
outputsize1/2'
weight4.41 lb
modeltypePistol
outputtypeSquare, Male
shutoffsystemTransducer
splinemounting2/2
toolfamilySTR
torquerangemax95 Nm
torquerangemin20 Nm
torquescatter3s≤ 5 %
speedrangemax450 r/min
soundpressure<70 dB(A)
soundstandardISO15744
vibrationstandardISO28927-2
vibrationvalue<2.5 m/s²
ccccertifiedNo
cqccertifiedNo
eaccertifiedYes
eulegislation2006/42/EC (MD)
eustandardEN 61000-6-2:2019
kccertifiedYes
kcidR-REI-50A-ETPSTR61
ukregulationsS.I. 2008/1597
ukstandardBS EN 62841-1:2015 + AC:2015 + A11:2022
weee5 - Small equipment <50cm
motorpower1500 W
motorvoltagetype3 a.c.
motorvoltage200 V
MPNETP STR61-90-13
